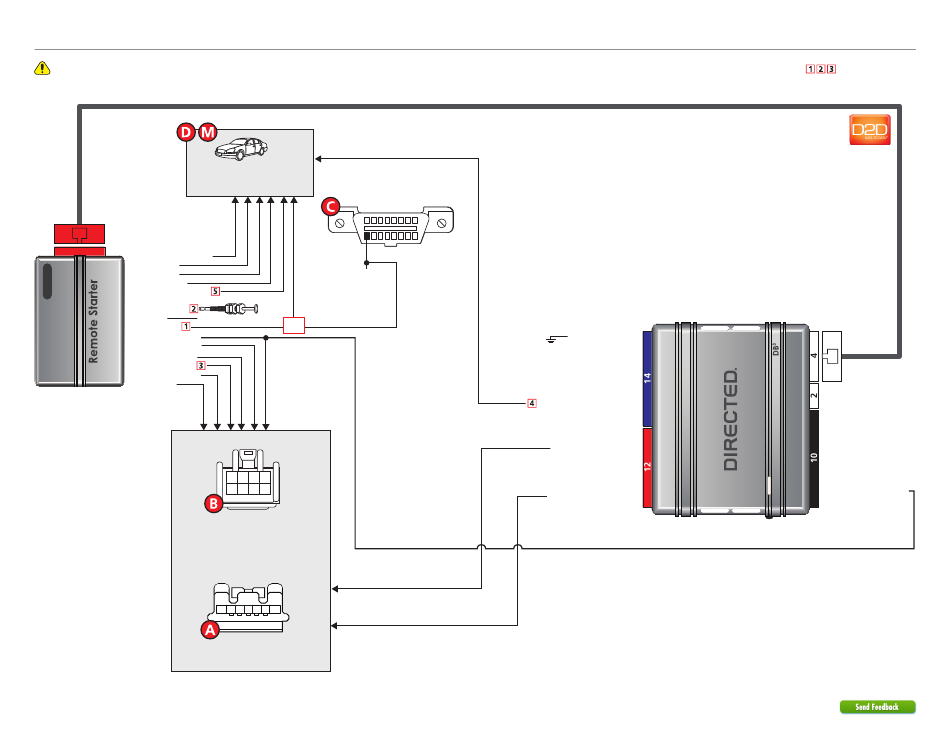

Wiring diagram

Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Refer to 'Vehicle connections'
for wire and connector details.
D2D Port
(-) Parking Lights Output
(+) Brake Input
(-) Lock Output
(-) Unlock Output
(-) Trunk Release Output
(-) Hood Pin Input
(-) Ground
(-) Ground
(AC) Tach Input
(+) Ignition 1 Output
(+) Ignition 2 Output
(+) Starter 1 Output
(+) Starter 2 Output
(+) Accessory Output
(+) 12V Input
for wire and connector details.
Transponder Key Amplifier
(black conn. around ignition)
Refer to Vehicle Connections
for wire and connector details.
7
403.TL11 1.15 2004 Toyota Camry
©2022 VOXX•DEI LLC. All rights reserved.
Diagnostic Connector
at OBDII
1
1
9
9
(AC) Tach: Pin 9
Hood Pin
OR
Ignition Switch
1 2
3 4
5
6
7
8
Refer to
Vehicle connections
8
8
16
16
(-) Ground: Brown: 7
(-) Keysense Output: Yellow: 8
Data TX: Yellow/Black: 10
Data RX: Orange/Black: 11
).
XKD2D65
9: Pink: (+) Ignition Input
