Installation; Wiring Diagram With T-Harness (Thfd1) - Directechs DIRECTED DB3 Installation Manual

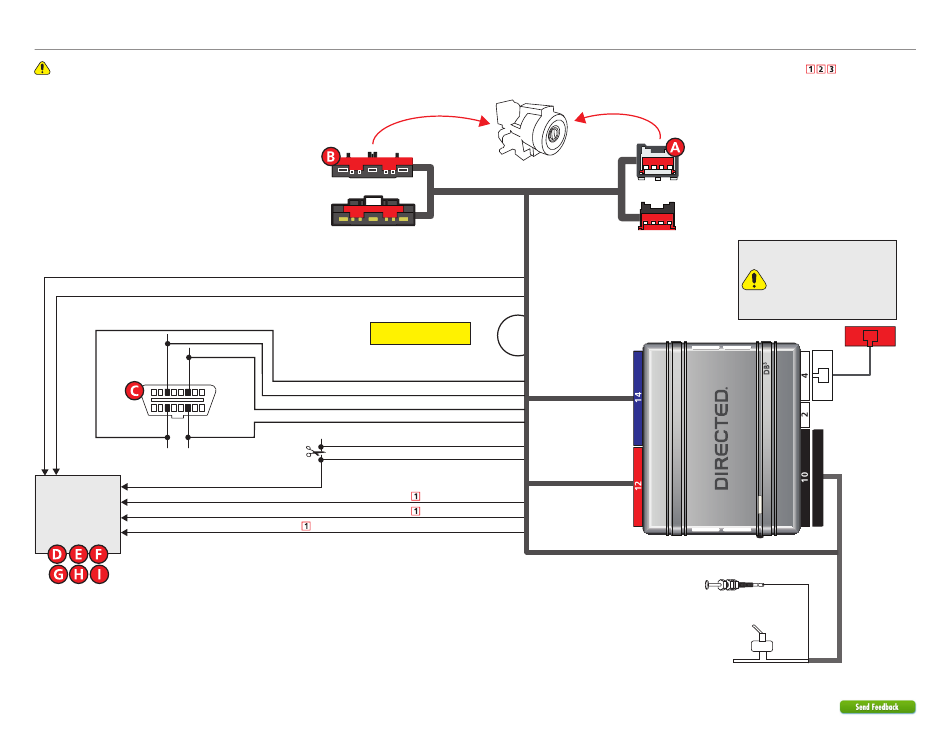

Wiring diagram with T-Harness (THFD1)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
OBDII Diagnostic
(connector side view)
MS CAN High: HS CAN High:
Pin 3 Pin 6
1 8
9 16
MS CAN Low: HS CAN Low:
Pin 11 Pin 14
Driver's Door Trigger
Refer to
"Vehicle connections"
section for the
connector, pin and
wire color.
6 403.FORD6 3.24 2013 Ford Taurus (40-Bit)
©2022 VOXX•DEI LLC. All rights reserved.
Ignition Switch
(connector side)
(+) Parking Lights Output: White
Attention! DO NOT cut
loop in RSR Application
HS CAN High: Orange/Green
HS CAN Low: Orange/Brown
RAP Off Interrupt (vehicle side): Orange/Red
Cut
RAP Off Interrupt (connector side): Yellow/Red
(-) Lock Output: Green/Black
(-) Unlock Output: Red/Black
(-) Trunk Hatch Release/Power Liftgate Output: Violet/Brown
Ignition
Barrel
THFD1
(optional
(+) 12V Input: Yellow
T-Harness)
Violet
MS CAN Low: Tan
MS CAN High: Tan/Black
P.A.T.S.
4-pin
connector
(connector side)
You can connect to either a
XL202 RFTD OR a SmartStart
module.
Refer to the SmartStart/XL202
Installation Notes for more
information.
Hood Pin
Note: The Hood Pin is only required on vehicles
that are not equipped with a factory hood pin.
Remote Start Safety
Override Switch
).
