(5) Console port
(7) Management Ethernet port (0/MGMT)
Figure1-6 Rear panel
1
(1) Power receptacle
(3) Interface module slot 2
F1000-C-G3
The F1000-C-G3 firewall provides the following ports and slots on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing copper ports (including two management Ethernet
ports).
•
Twelve 1000BASE-X fiber ports.
•
Four 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
One micro USB port.
•
Two drive slots.

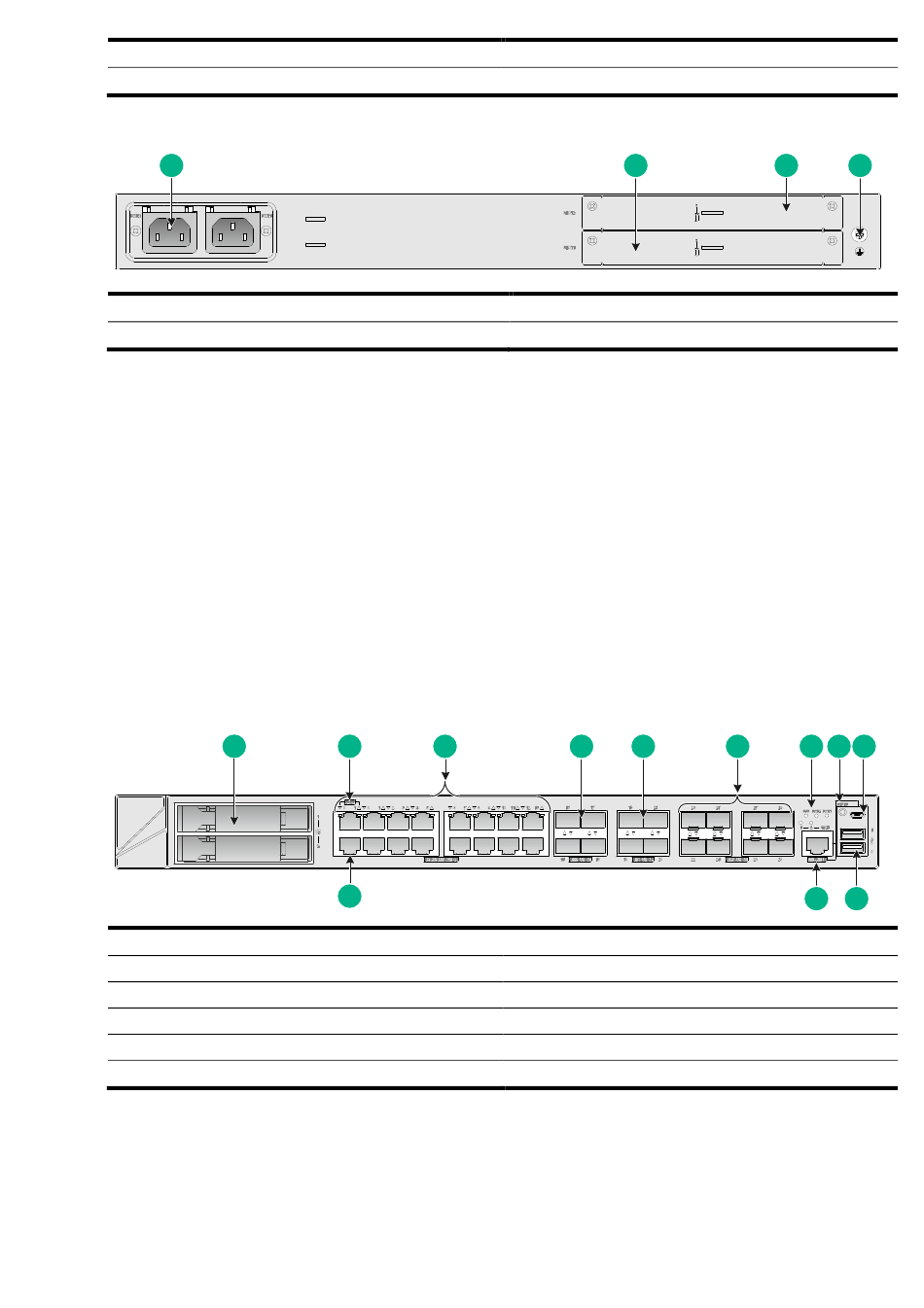

Figure1-7 Front panel
(1) Drive slots
(3) 10/100/1000BASE-T copper ports
(5) 10GBASE-R fiber ports
(7) LEDs
(9) Micro USB port
(11) Console port (CONSOLE)
1
2
12
(6) USB ports
(2) Interface module slot 1
(4) Grounding screw
3
4
(2) Management Ethernet port (MGMT 1)
(4) 1000BASE-X fiber ports
(6) 1000BASE-X fiber ports
(8) Reset button
(10) USB port
(12) Management Ethernet port (MGMT 0)
3
3
2
5
6
4
7
8
9
11
10
