Two USB ports.
•
One console port.
•
One drive slot.

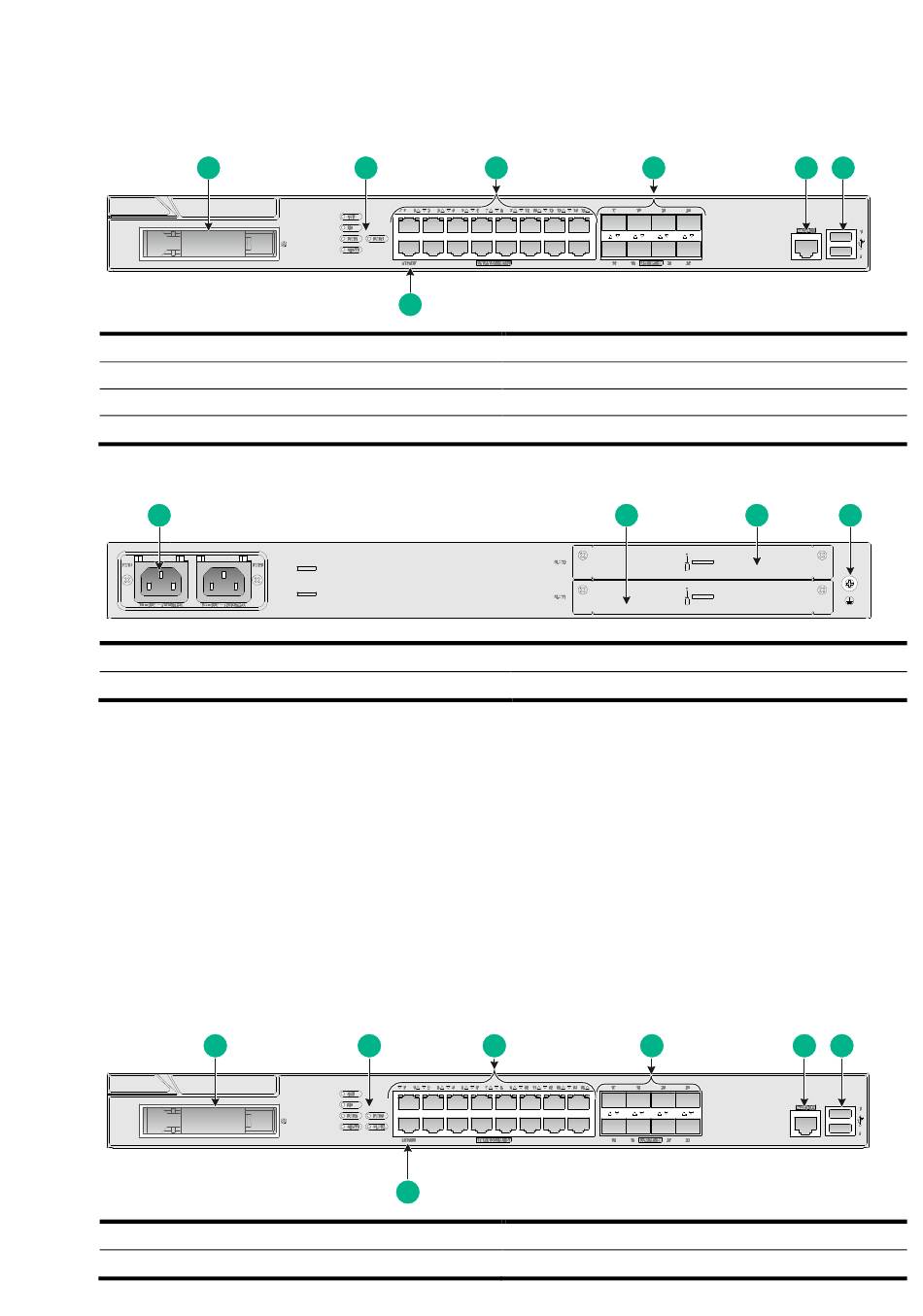

Figure1-3 Front panel
(1) Drive slot
(3) 10/100/1000BASE-T copper ports
(5) Console port (CONSOLE)
(7) Management Ethernet port (0/MGMT)
Figure1-4 Rear panel
1
(1) AC power receptacle
(3) Interface module slot 2 (not supported)

F100-E-G3

The F100-E-G3 firewall provides the following ports and slots on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing copper ports (including one management Ethernet
port).
•
Eight 1000BASE-X fiber ports.
•
Two USB ports.
•
One console port.
•
One drive slot.
Figure1-5 Front panel
(1) Drive slot
(3) 10/100/1000BASE-T copper ports
1 2
1 2
3
7
(2) LEDs
(4) 1000BASE-X fiber ports
(6) USB ports
(2) Interface module slot 1
(4) Grounding screw
3
7
(2) LEDs
(4) 1000BASE-X fiber ports
2
4
2 3
4
5 6
4
5 6
