2.
Orient the power supply with its handle at the left. Holding the handle of the module with one
hand and supporting the module bottom with the other, slide the power supply slowly into the
slot along the guide rails.
3.
Use a Phillips screwdriver to fasten the captive screws on the power supply to secure the power
supply in place.

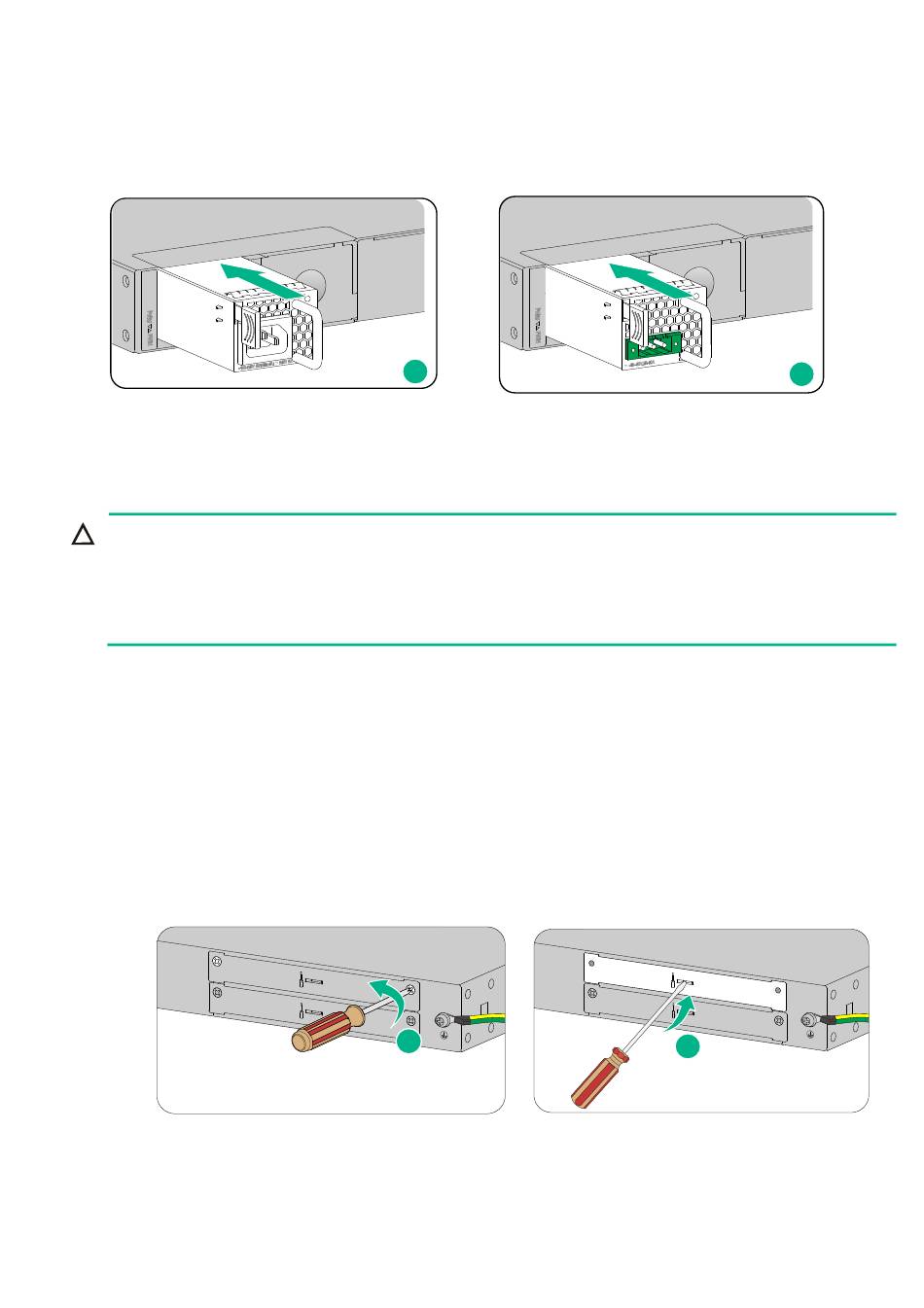

Figure2-12 Installing a power supply
Installing an interface module
CAUTION:
• Interface modules are not hot swappable.
• To install two or more interface modules, use the upper interface module slots as a best practice.
If you have installed an interface module in a lower slot, you must press down the ejector levers
of the interface module while inserting it into an upper slot.
No interface modules are provided with the firewall. Purchase them as needed. For the interface
modules available for the firewall, see "Appendix A Chassis views and technical specifications."
The installation procedure is the same for all interface modules.
To install an interface module:
1.
Face the rear panel of the firewall.
2.
Use a Phillips screwdriver to remove the screws on the filler panel and then remove the filler
panel.
Keep the filler panel for future use.
Figure2-13 Removing the filler panel
3.
Pull the ejector levers on the module outward and slide the module slowly into the slot along the
guide rails.
4.
Press the ejector levers inward until they touch the panel tightly and the module seats into the
slot securely.
3
1
16
3
2
