4.2 Ultrastar Data102 Unpacking Procedure
Step 1 : Make sure that all of the necessary parts and equipment are available, including any equipment
necessary to support the enclosure during installation. To verify the list of necessary parts, see
Ultrastar Data102 Packaging Overview (page
Step 2 : Using a box cutter, cut the straps that secure the packaging to the pallet.
Step 3 : Remove and discard the top cap and the outer sleeve.

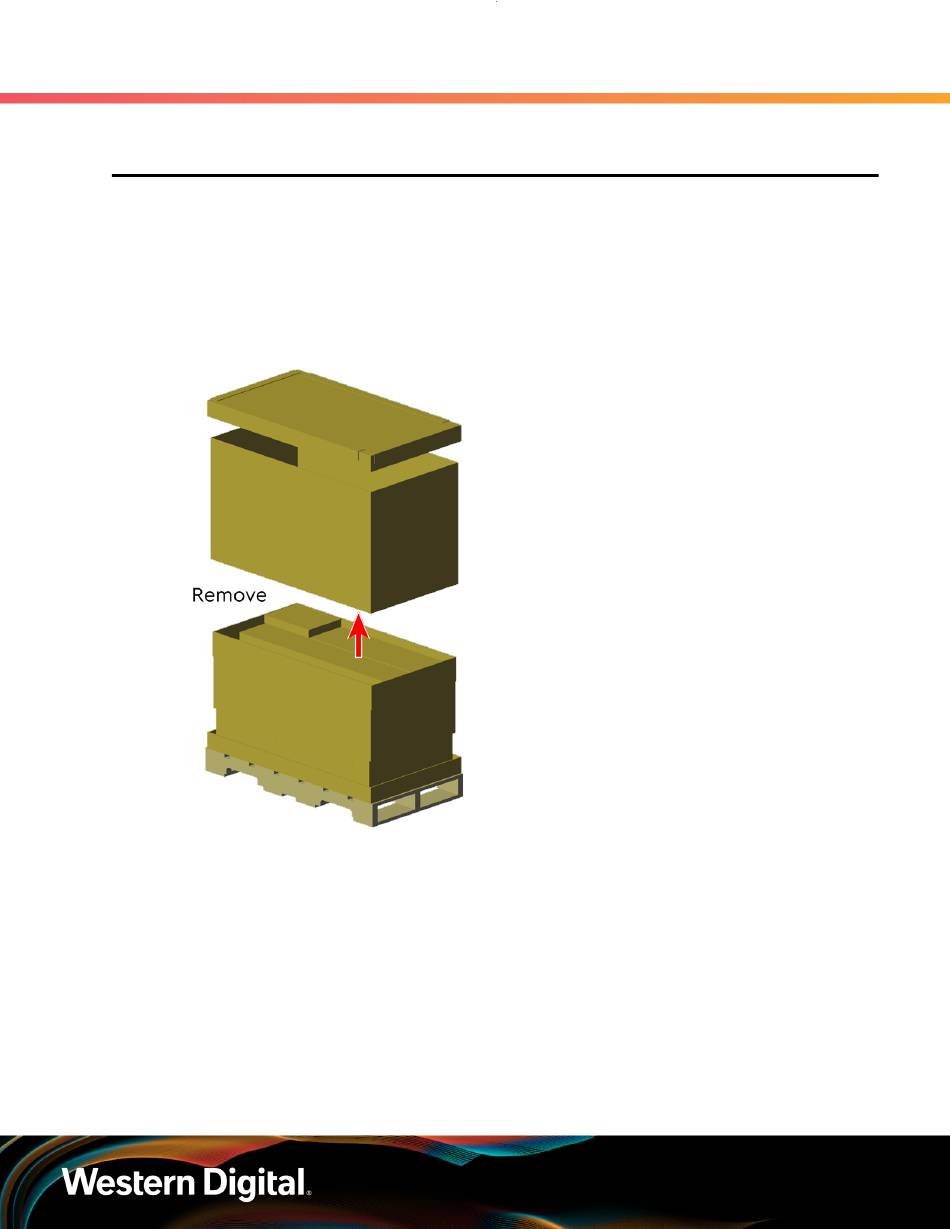

Figure 10: Top Cap and Sleeve Removal
Step 4 : From the accessory tray, open the boxes for the rails, CMA arms, and top cover alignment
brackets. Remove these parts and set them aside.

4.2 Ultrastar Data102 Unpacking Procedure

29).
