1. Overview
Installation Guide
1.7 Ultrastar Data102 Rack Requirements
Warning: The handles on the front of the chassis are not intended to be used to support the
weight of the Ultrastar Data102 . Lifting the unit by the chassis handles or trying to support the
unit on the handles can cause them to fail. This can cause serious damage to the unit or serious
bodily harm to those handling the unit. Always team lift the chassis by gripping the underside
of the unit, and never try to lift a chassis that is filled with drives.

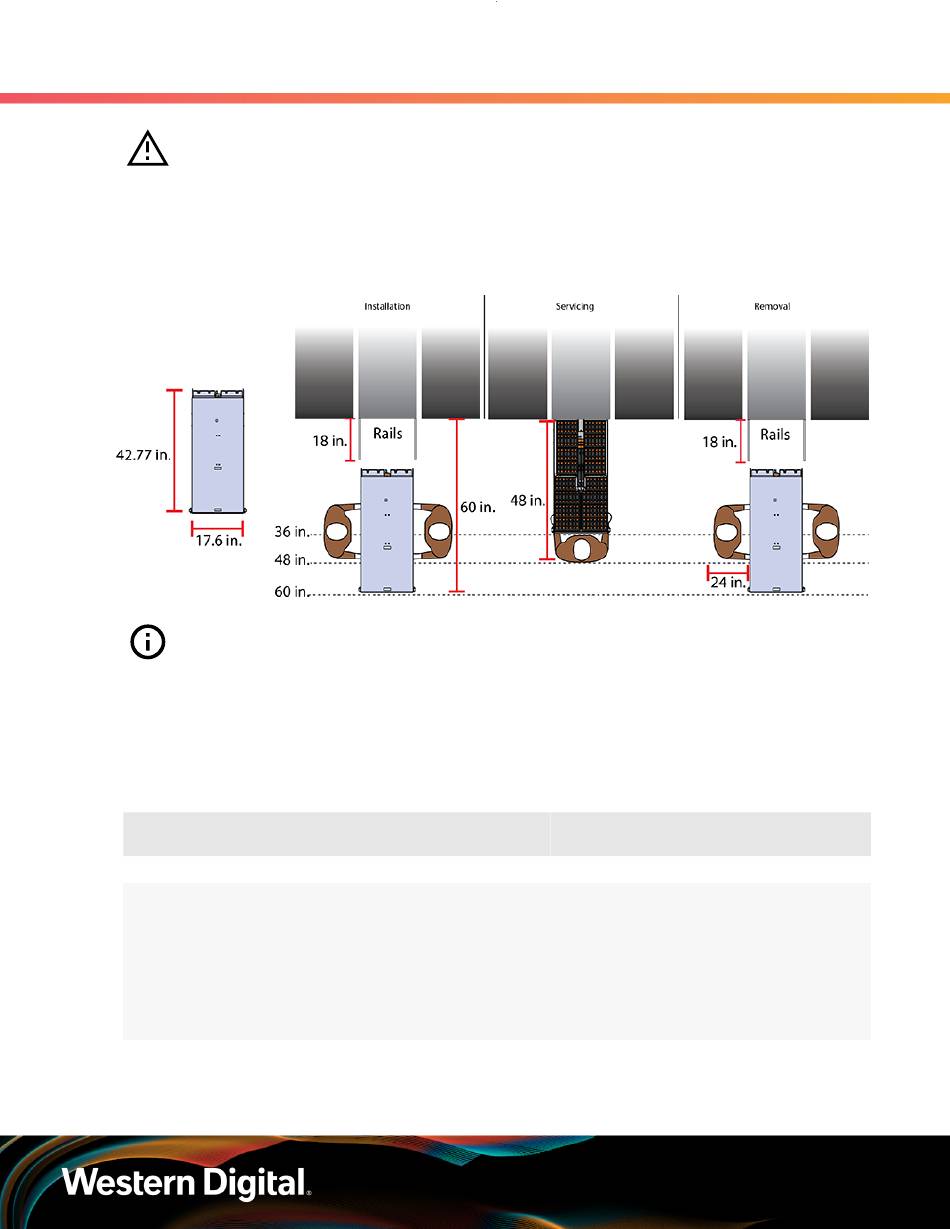

Figure 5: Installation, Servicing, and Removal
Attention: Do not install or remove the enclosure while it is populated with drives. The fully
populated enclosure exceeds the amount of weight that a team of two should lift.
1.7.1 Compatible Rack Hardware Configuration
The following table(s) list the approved rack hardware configurations for the Ultrastar Data102 :
Table 7: Compatible Hardware Configuration 1
PDU Mounting Additional Mounting
Parameter Rack PDU (Vertical)
Bracket Bracket Hardware
Vendor CRENLO/EMCOR Server Technology Server Technology Various
AS-160099-03 KIT-MBVPT-1B
412-0761-11_STV-4501 4 x M6 x 16 Hex
(Drawing (one kit per PDU)
Cap Screws
412-0761-20_STV-4502
Number EMCOR
Part 8 x M6 Fender
526121 Rev 5)
412-0761-23_STV-4503
Number Washers
4 x M6 Hex Nut
with Nylon Lock
Quantity 1 2 2 Varies
7
