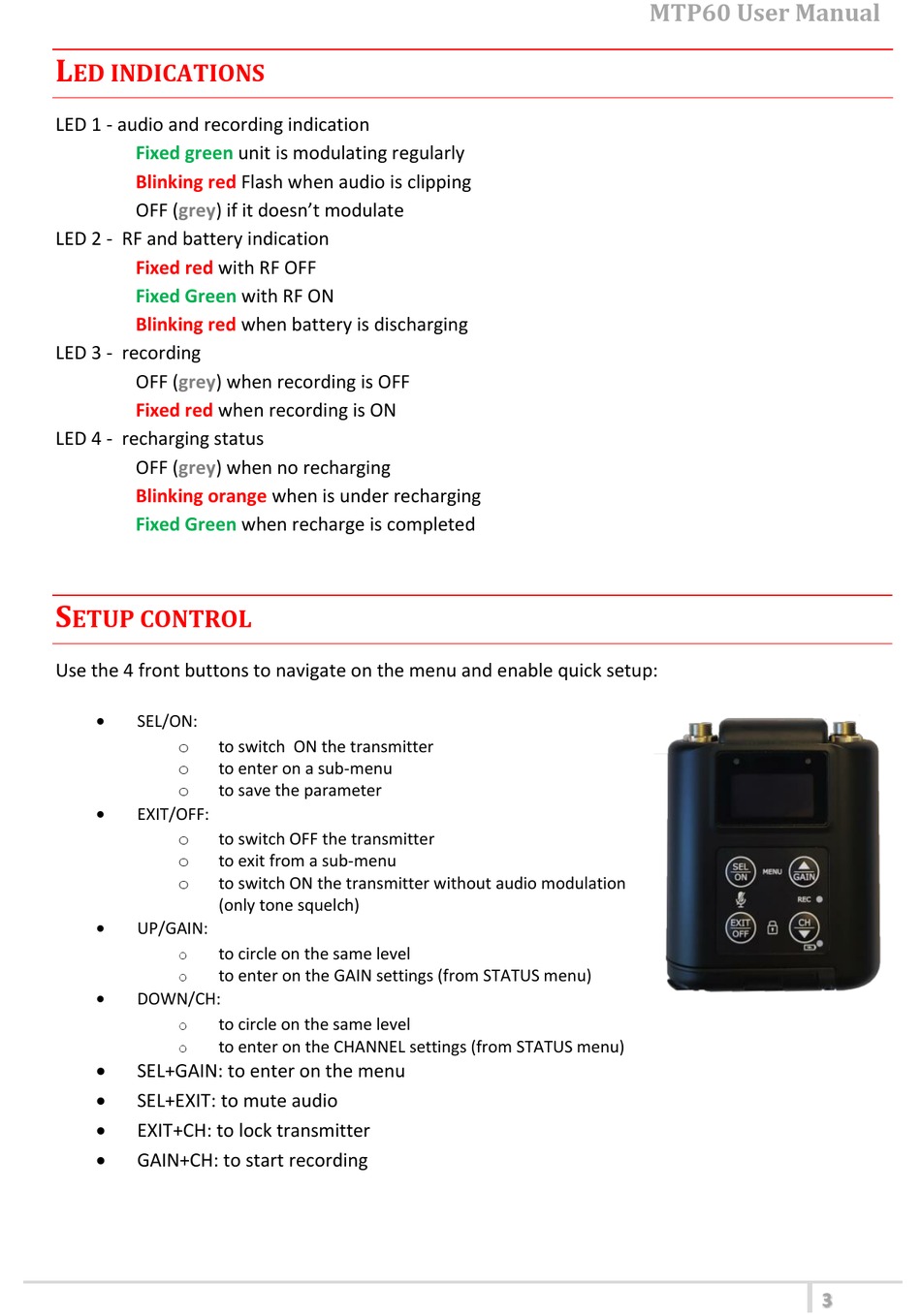

L
ED INDICATIONS
LED 1 - audio and recording indication
Fixed green
Blinking red
OFF (grey) if it doesn't modulate
LED 2 - RF and battery indication
Fixed red with RF OFF
Fixed Green
Blinking red
LED 3 - recording
OFF (grey) when recording is OFF
Fixed red when recording is ON
LED 4 - recharging status
OFF (grey) when no recharging
Blinking orange
Fixed Green
S
ETUP CONTROL
Use the 4 front buttons to navigate on the menu and enable quick setup:

SEL/ON:
o
to switch ON the transmitter
o
to enter on a sub-menu
o
to save the parameter

EXIT/OFF:
o
to switch OFF the transmitter
o
to exit from a sub-menu
o
to switch ON the transmitter without audio modulation
(only tone squelch)

UP/GAIN:
to circle on the same level
o
o to enter on the GAIN settings (from STATUS menu)

DOWN/CH:
to circle on the same level
o
to enter on the CHANNEL settings (from STATUS menu)
o

SEL+GAIN: to enter on the menu

SEL+EXIT: to mute audio

EXIT+CH: to lock transmitter

GAIN+CH: to start recording
unit is modulating regularly
Flash when audio is clipping
with RF ON
when battery is discharging
when is under recharging
when recharge is completed
