RODUCT OVERVIEW
❻

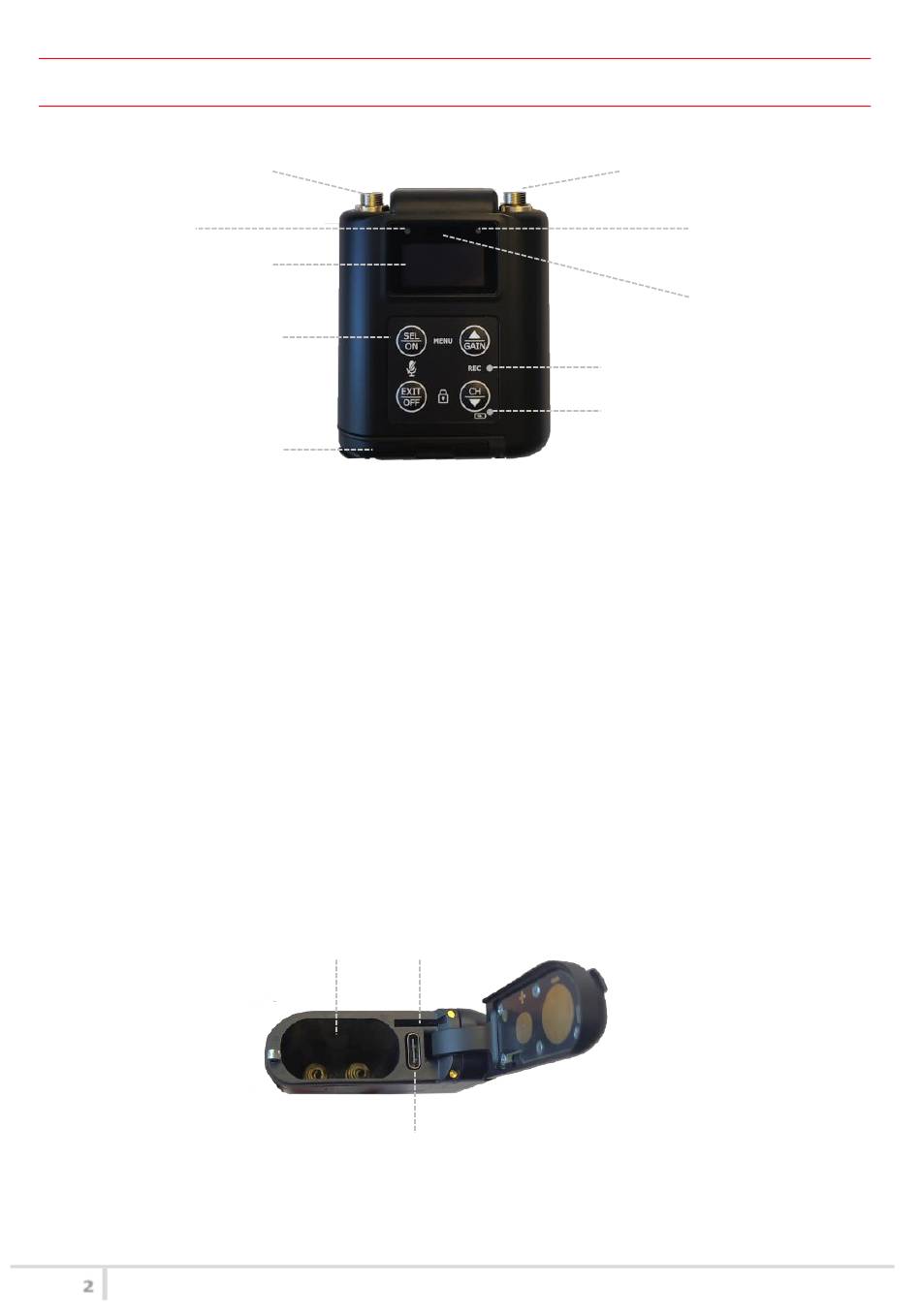

❶ OLED white display (128 x 64 pixels)
❷ 4 setup buttons
❸ battery compartment latch
❹ MIC connector (LEMO 1pin)
❺ Antenna connector (LEMO 3pin)
❻ LED1 for audio and recording
indication
❼ LED2 for RF and battery indication
2
❹
❶
❷
❸
⓫
⓬
⓭
❺
❾
❿
❽ IrDa interface
❾ LED3 of recording
❿ LED4 of recharging
⓫ battery compartment
⓬ SD card slot
⓭ USB-C connector
(for power and control)
