- Page 1 MTP51-JP User Manual Wireless Professional Pocket Transmitter Rev.02 (ref. FW 1.4.0.J) Date: 20 November 2020...

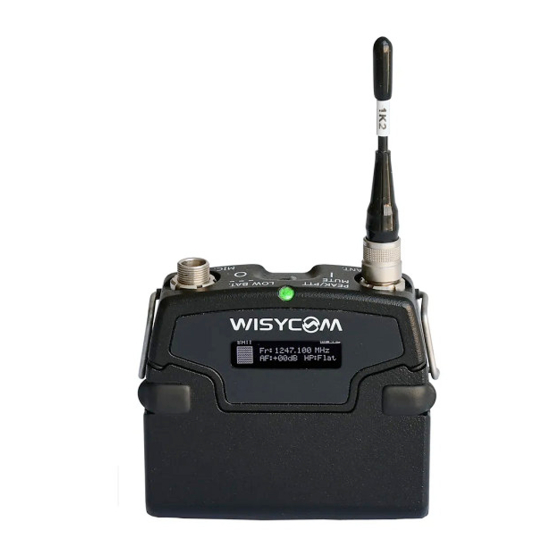

- Page 2 “MTP51-JP is an extremely small and light pocket transmitter especially designed for professional wireless microphone applications” Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP51-JP benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Fig. 1...
-
Page 3: Safety Instruction
Limiter in action (if activated): blue. ATTERIES MTP51-JP is working with 1 AA alkaline or NiMH or Lithium batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking the LED status on front ❷. -
Page 4: Setup Control
MTP51-JP User Manual OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the front LED ❷ lights up red and then green when the RF transmission power is on (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls”... - Page 5 No Data: the transmitter sends neither tone squelch nor battery data. “transmitter Name Max 8 characters name” FW(Firmware)/HW(Hardware)/SN(Serial INFO Number)/BW(Bandwidth)/BL(Bootloader)/OPT(Options) Irda enable for SYNC with Wisycom receivers or IRDA for management with Wisycom Manager with UPKmini Lock To lock the trasmitter...
- Page 6 We provide the device with some preset configurations specifically designed for certain types of microphone or applications (it’s possible to change these presets in any time using Wisycom Manager). All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible way...
- Page 7 MTP51-JP User Manual <TUNING> This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>). In this menu current channel/group and frequencies can be setup. The name of the group is shown on the top right of the display.
- Page 8 LP filter: 20kHz or 17kHz (only for NB modulation) <RF/BATTERY> RF power can be setup to L50mW, L20mW and 10mW. Battery menu to select the type of battery used. MTP51-JP support Alkaline/NiMH/Eneloop Pro. battery type. <LED> Led Light allows to change the brightness of the front led (0÷16) .
- Page 9 Manager for upgrade/configuration or do a SYNC with Wisycom receiver without enter manually on the menu. <LOCK> Long pressing (2 sec.) selector button (click) it locks MTP51-JP in transmission mode. To unlock, long pressing (2 sec.) selector button again.
-
Page 10: Technical Specifications
±40 kHz Wideband, ±25 kHz Narrowband Nominal deviation ±56 kHz Wideband, ±35 kHz Narrowband Peak deviation MTP51-JP transmits also a digitally modulated sub-carrier, suitable for: Telemetry feature ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation Configurable on ‘mic’... - Page 11 MTP51-JP User Manual Drawing Note: unit is mm Compliance Model In Compliance with Max Power Country 001-A17033 MTP51-JP 50mW Japan MIC marking identifier can be found in the battery compartment. Before putting the device into operation, please observe the respective country-specific regulations!
-
Page 12: Manufacturer Declarations
MTP51-JP User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements RoHS Directive (2002/95/EC) WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment ...
