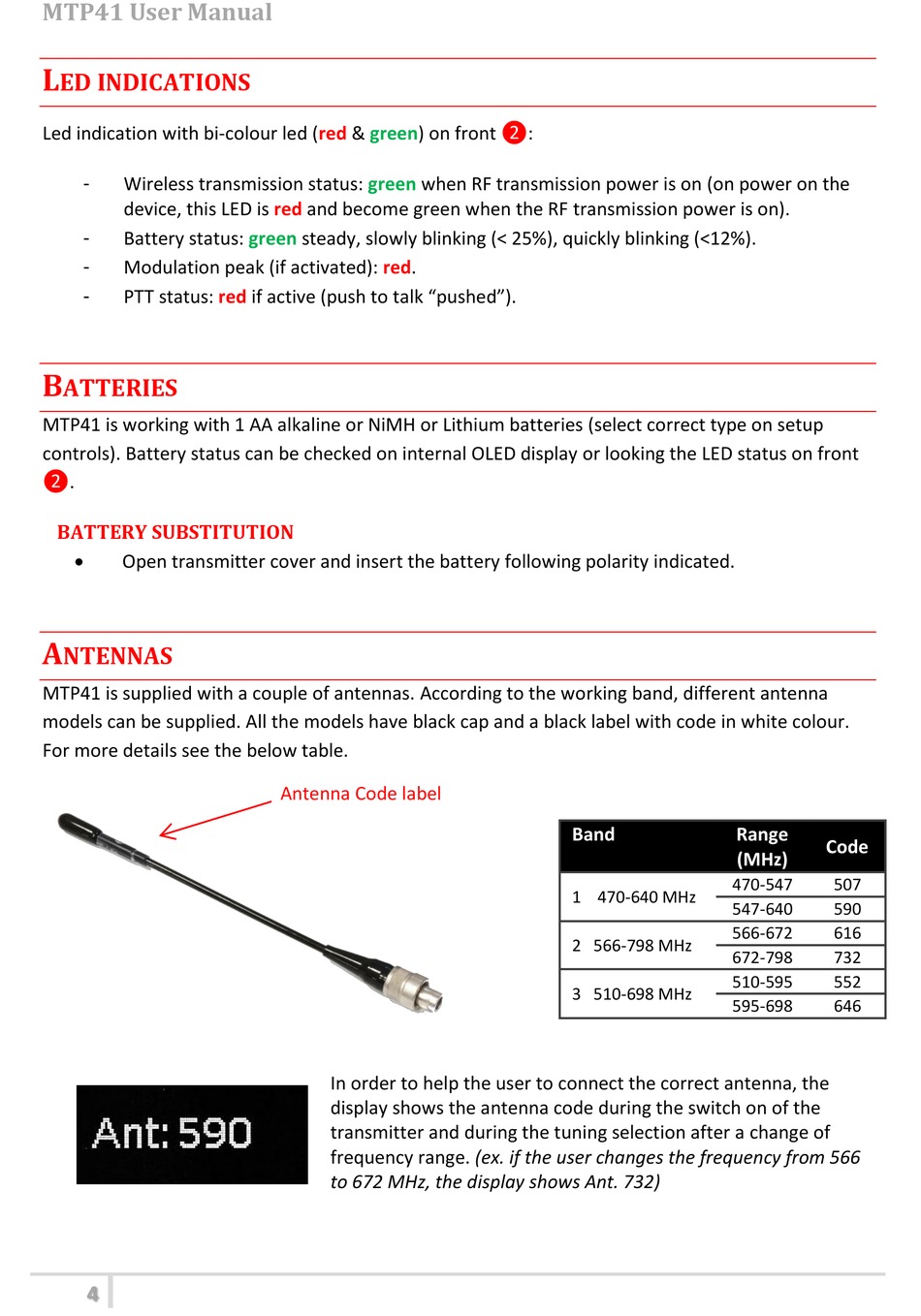

Led Indications - WisyCom MTP41 User Manual

MTP41 User Manual
L
ED INDICATIONS
Led indication with bi-colour led
Wireless transmission status:
-
device, this LED is
Battery status:
-
Modulation peak (if activated): red.
-
PTT status:
-
B
ATTERIES
MTP41 is working with 1 AA alkaline or NiMH or Lithium batteries (select correct type on setup
controls). Battery status can be checked on internal OLED display or looking the LED status on front
❷.
BATTERY SUBSTITUTION

Open transmitter cover and insert the battery following polarity indicated.
A
NTENNAS
MTP41 is supplied with a couple of antennas. According to the working band, different antenna
models can be supplied. All the models have black cap and a black label with code in white colour.
For more details see the below table.
4
(red & green) on front ❷:
green
red and become green when the RF transmission power is on).
green steady, slowly blinking (< 25%), quickly blinking (<12%).
red if active (push to talk "pushed").
Antenna Code label
In order to help the user to connect the correct antenna, the
display shows the antenna code during the switch on of the
transmitter and during the tuning selection after a change of
frequency range. (ex. if the user changes the frequency from 566
to 672 MHz, the display shows Ant. 732)
when RF transmission power is on (on power on the
Band
1 470-640 MHz
2 566-798 MHz
3 510-698 MHz
Range
Code
(MHz)
470-547 507
547-640 590
566-672 616
672-798 732
510-595 552
595-698 646
