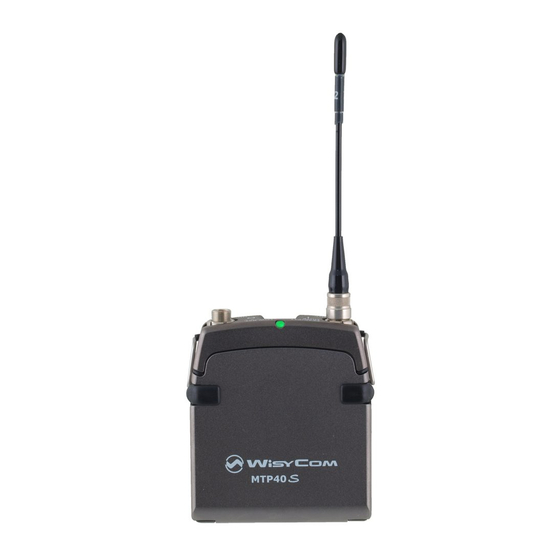

- Page 1 MTP40S-US/USX User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.01 (ref. FW 1.22.0A) Date: 09 April 2014...
- Page 2 Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP40S benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Turn on wireless: Fig.
-
Page 3: Safety Instruction
MTP40S-US/USX User Manual Rev.01 AFETY INSTRUCTION Read this safety instruction and the manual first Follow all instructions and information. Do not lose this manual. Do not use this apparatus under the rain or near the water. -
Page 4: Setup Control
MTP40S-US/USX User Manual Rev.01 OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: a green LED lights up (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls” area (Fig. 3):... -
Page 5: Display Menu
MTP40S-US/USX User Manual Rev.01 DISPLAY MENU Setup menu are accessed in sequence: STATUS Current PRESET Load FACTORY/USER/PRESET1/2/3/4/5/6/7/8 Save USER 00-59 00-39 TUNING 1: 470.000÷640.000 Freq 2: 566.000÷798.000 3: 510.000÷698.000 AF In Gain -60÷40 dsB (1dB step) Phase 0/180 AUDIO HPass Filter Flat/60/80/120/170/250/400Hz Noise R. - Page 6 This menu can be entered by scrolling selector, or pushing at the same time both quick channel setup buttons (<ch> & <gain>). MTP40S can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to” submenu). All “USER” menus are not...
- Page 7 MTP40S-US/USX User Manual Rev.01 <TUNING> menu This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>). In this menu current channel/group and frequencies can be setup. Use the selector to change values (<+/->) and <click> to confirm.
- Page 8 MTP40S-US/USX User Manual Rev.01 Use the selector to change values (<+/->) and <click> to confirm. <LED> menu This menu can be entered by scrolling selector. Led Light allows to change the brightness of the front led (0÷16) . Led Mode: - None: allows to disable modulation peak LED on front...
- Page 9 MTP40S-US/USX User Manual Rev.01 Device is forced in bootloader mode to allow FIRMWARE UPDATE. The following table sums up which parameters can be set and the related range settings. PARAM MENU MEANING RANGE SETTINGS ETER Channel 0 ÷ 59 Group 0 ÷...
- Page 10 MTP40S-US/USX User Manual Rev.01 MIC Mode setting (only for LEMO option): Pin out MIC Mode: Gain Led Mode Disable None 1=GND Normal ’2 wires’: -60/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -60/40 dB Mod.
-
Page 11: Accessories And Parts
MTP40S-US/USX User Manual Rev.01 ACCESSORIES AND PARTS AWF30-B1-507 AWF30-B1-590 For MTP40S-X-X1 For MTP40S-X-X1 Band 470 ÷ 547 MHz Band 547 ÷ 640 MHz Antenna Code label Antenna Code label AWF30-B2-616 AWF30-B2-732 For MTP40S-X-X2 For MTP40S-X-X2 Band 566 ÷ 672 MHz Band 672 ÷... - Page 12 It is necessary to install Wisycom IR Programmer (version 1.3.2.4 or above) WARNING: If it is the first installation and Wisycom USB driver has not already installed in the PC, install the USB driver (run C:\Program Files (x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe) ...
-
Page 13: Interface And Device Panel
MTP40S-US/USX User Manual Rev.01 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed. USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration. -
Page 14: Tuning Frequencies Panel
MTP40S-US/USX User Manual Rev.01 TUNING FREQUENCIES PANEL With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the... - Page 15 MTP40S-US/USX User Manual Rev.01 Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the related button above. The legacy option save the channels without the hidden/lock...
-
Page 16: Presets Panel
Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file. -
Page 17: Technical Specifications
1 dB steps +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level Max. input level ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized Noise-Reduction ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized &... - Page 18 MTP40S-US/USX User Manual Rev.01 In compliance with PART 74 FCC-ID: POUMTP40 MTP40S US option FCC-ID: POUMTP40SUSX MTP40S USX option Limited to 698 MHz *in accordance with KDB 447498 D01 General RF Exposure Guidance v05r02. 5.5V (3 wires) AF + 5.5V (2 wires)
-
Page 19: Manufacturer Declarations
In order to protect the environment, only dispose of exhausted batteries. FCC Conformity The Wisycom microphone pocket transmitter model MTP40S complies with the following requirements: - FCC (Federal Communications Commission) Part 74... - Page 20 Wireless System Communications Via Spin 156 I-36060 Romano d’Ezzelino Italy Tel. +39 -0424 -382605 Fax +39 - 0424 - 382733 www.wisycom.com e-mail: sales@wisycom.com...
