MTP60 User Manual
B
ATTERIES
MTP60 works with 2 x AA battery, Lithium, NiMh or KLIC8000 lithium (5.6 Wh) (select correct type
on setup controls). Battery status can be checked on internal OLED display or looking the LED2
status on front ❼.

BATTERY SUBSTITUTION

Open transmitter cover and insert batteries following polarity indicated.
Attention: always replace both the batteries

AUDIO CONNECTOR

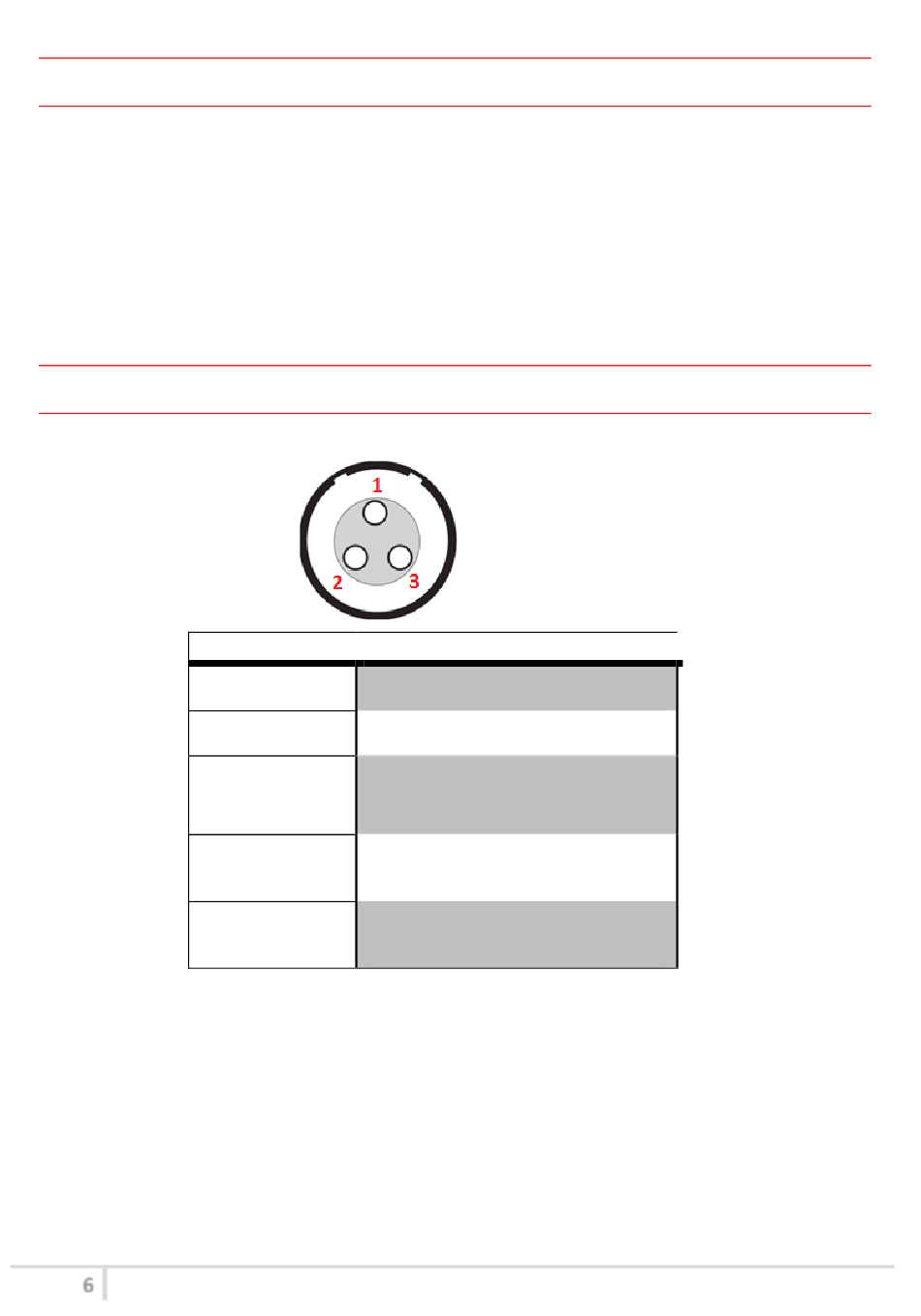

3 PIN LEMO CONNECTOR
(use FVB.00.003.NLN on Mic)
MIC Mode:
'2 wires':
'2 wires + bias':
'3 wires':
'2 wires &
phantom':
'2 wires + bias &
phantom':
6
Pin out
1=GND
3=AF
1=GND
3=AF+5.5V
1=GND
2=5.5V
3=AF
1=GND
2=3.1V (power for PHA48 and PHA60)
3=AF
1=GND
2=3. 1V (power for PHA48 and PHA60)
3=AF+5,5V
