SC2000E(Mini) Series Vision Sensor Quick Start Guide
If the VCC of NPN device is 12 VDC or 24 VDC and the external pull-up resistor is used, it is
recommended to use 1 KΩ pull-up resistor.
VCC
PWR
NPN Device Power
Device Power
NPN
Input Signal
Signal Line
Device
Device Power Ground
NPN Power Ground
GND of PWR and VCC

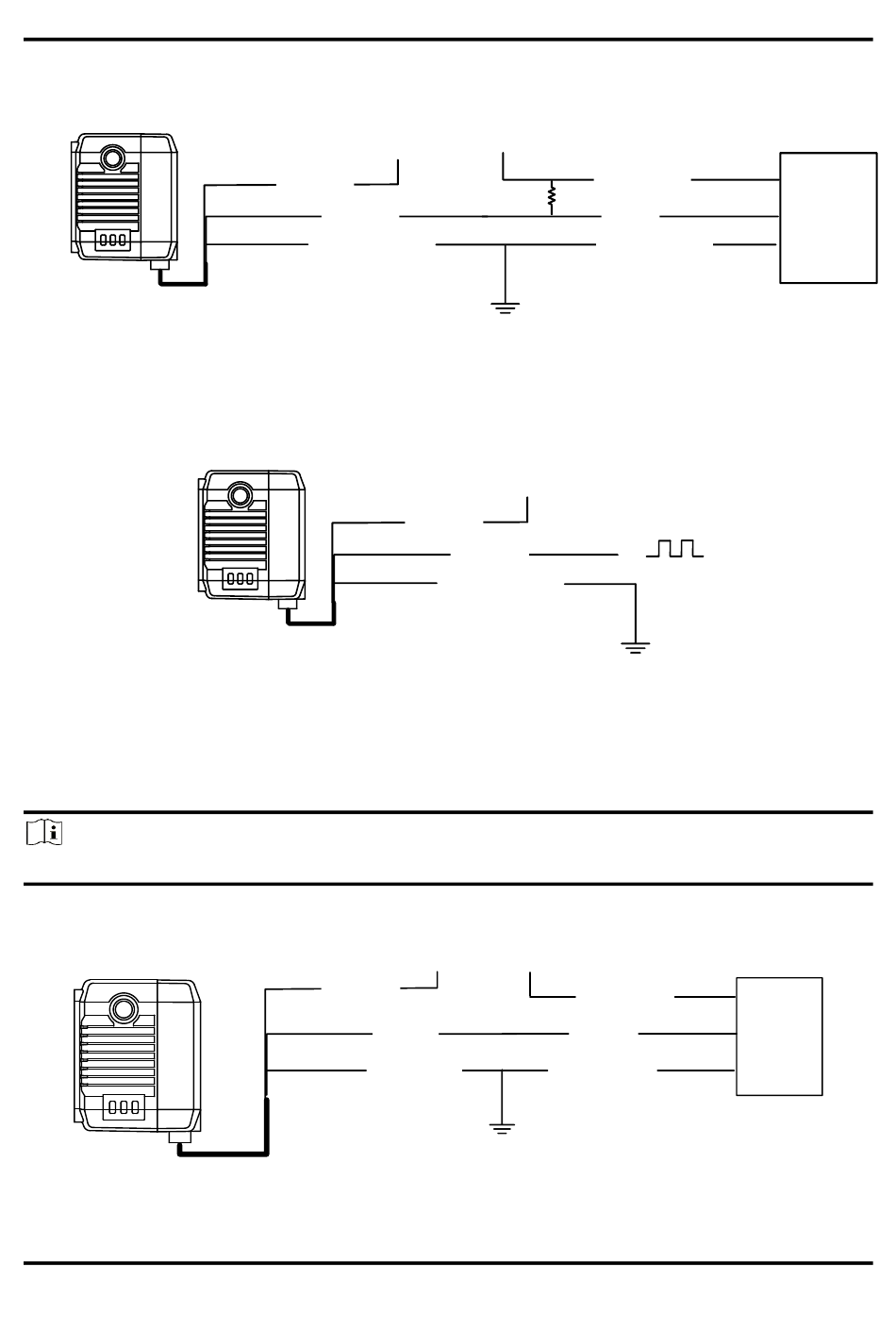

Figure 7-7 Input Signal Connecting to NPN Device (External Pull-Up Resistor Used)
Switch
If the input signal is switch, and its wiring is shown below.
PWR
Device Power
> 3.3 V
Input Signal
0 V
Device Power Ground
GND of PWR and VCC
Figure 7-8 Input Signal Connecting to Switch

7.2.2 Output Wiring

Note
Output signal wiring may differ by external device types.
PNP Device
VCC
PWR
Device Power
PNP Device Power
PNP
Signal Line
Output Signal
Device
Device Power
PNP Power Ground
Ground
GND of PWR and VCC
Figure 7-9 Output Signal Connecting to PNP Device
18
