SC2000E(Mini) Series Vision Sensor Quick Start Guide
Note
Appearance here is for reference only. Refer to the device's specification for detailed dimension
information.
No. Name
1 Focus Knob
2 Screw Hole
3 Trigger Button
4 SR Cable
5 LNK Indicator

Chapter 2 Appearance

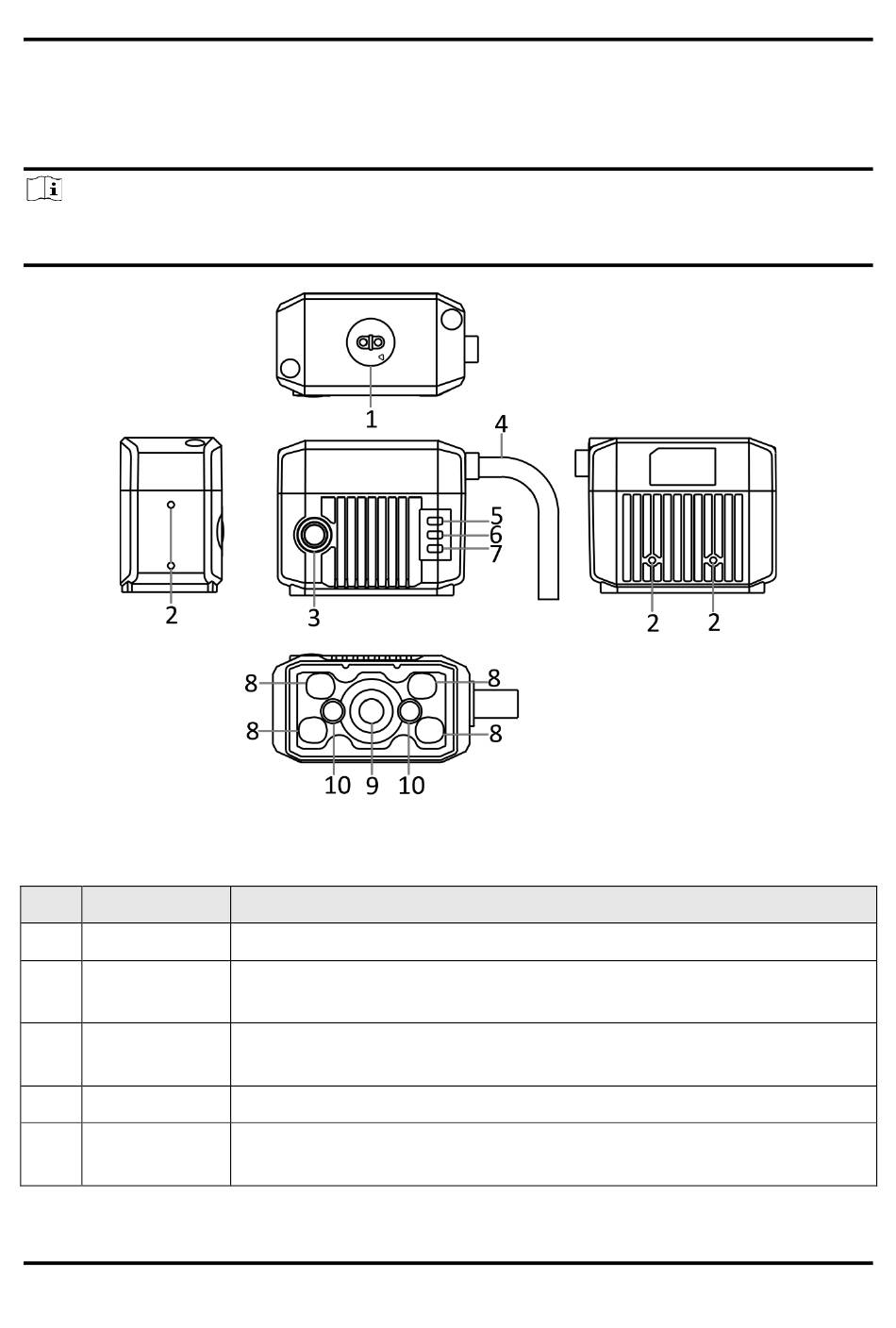

Figure 2-1 Appearance
Table 2-1 Component Description
It is used to adjust focal length manually.
It is used to fix the device to the installation position. You should use M2
screw.
When the device is in trigger mode, press the button and the device
triggers once.
SR cable connector provides power, I/O, Ethernet, and serial port.
It is a network status indicator. The indicator is flashing green when the
network transmission is normal. Otherwise, it is unlit.
