SC2000E(Mini) Series Vision Sensor Quick Start Guide
NPN Device
If the VCC of NPN device is 12 VDC or 24 VDC, and the pull-up resistor of the supplied 17-pin cable
is used.

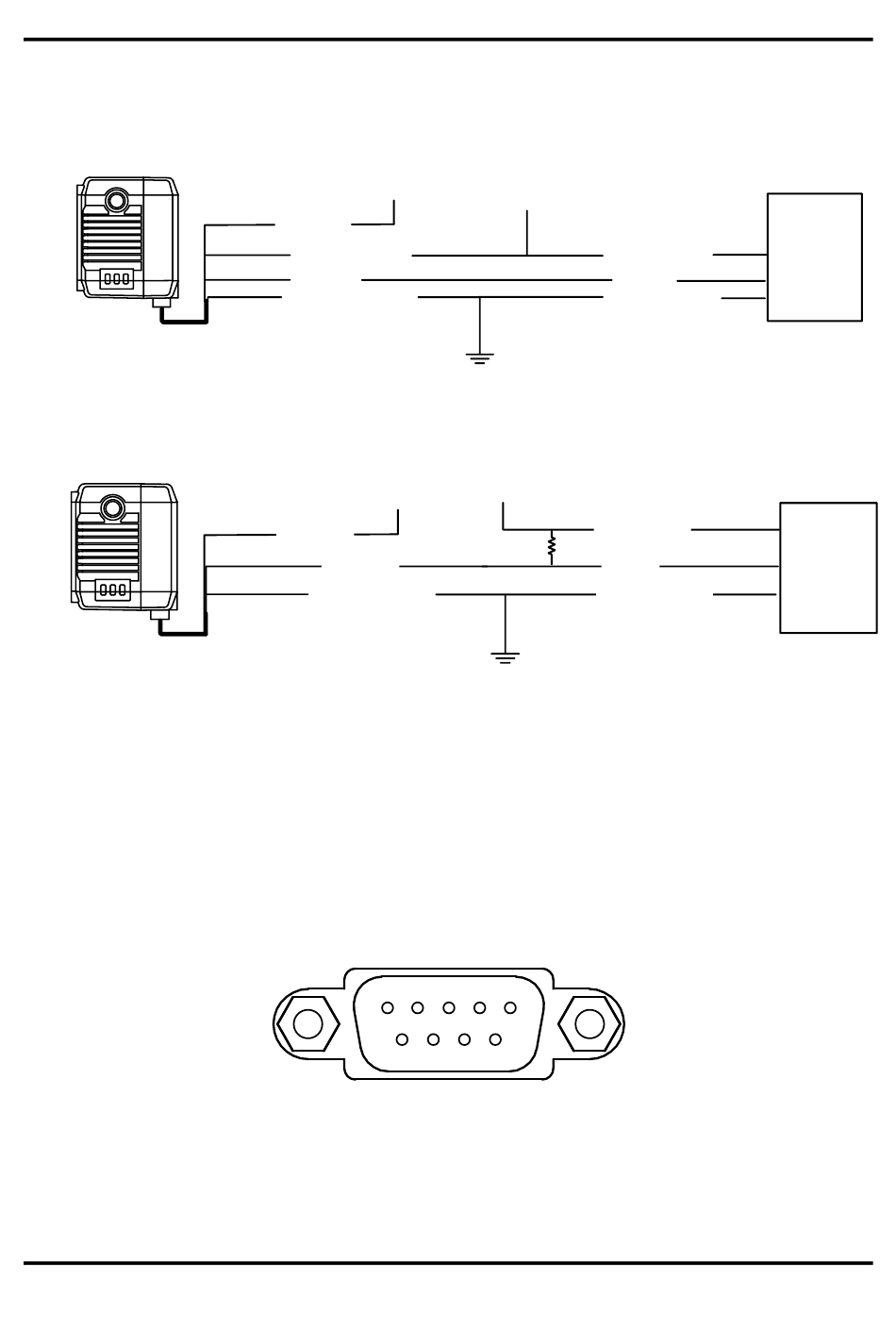

Figure 7-10 Output Signal Connecting to NPN Device (Pull-Up Resistor of 17-Pin Cable Used)
If the VCC of NPN device is 12 VDC or 24 VDC and the external pull-up resistor is used, it is
recommended to use 1 KΩ pull-up resistor.
Figure 7-11 Output Signal Connecting to NPN Device (External Pull-Up Resistor Used)

7.3 RS-232 Serial Port

The device supports outputting data via RS-232 serial port, and you can set serial port
communication via the client software. Refer to the user manual of the SCMVS client software for
details.
The supplied 17-pin cable has a DB9 RS-232 serial port. Refer to the figure and table below for pin
definitions.
PWR
Device Power
Pull-Up and Pull-Down
Resistor
Output Signal
Device Power Ground
GND of PWR and VCC
PWR
Device Power
Output Signal
Device Power Ground
GND of PWR and VCC
5
9
Figure 7-12 DB9 Serial Port Connector
19
VCC
NPN Device Power
Signal Line
NPN Power Ground
VCC
NPN Device Power
Signal Line
NPN Power Ground
1
6
NPN
Device
NPN
Device
