SC2000E(Mini) Series Vision Sensor Quick Start Guide
No.
Signal
I/O Signal Source
13
--
--
14
MDI0-
--
15
MDI1+
--
GPIO0
Line 0+
16
GPIO1
Line 1+
17
3.2 17-Pin Cable
You should use the supplied 17-pin cable to wire the device. The cable has a DB9 serial port
connector that corresponds to 4th and 5th pins of the device's 17-pin interface, and a RJ45
connector that corresponds to 6th, 7th, 14th, and 15th pins of the 17-pin interface.
Caution
You cannot use the 12 V power plug of the DB9 serial port connector and power supply open line
to power the device at the same time. Otherwise, damaging to the power supply may occur.
Note
● The open lines of the supplied 17-pin cable can be wired according to the actual demands.
● Two lines of the supplied 17-pin cable does not correspond to the device's 17-pin interface. The
pink line is Line 0/1's pull-up and pull-down resistor, and the purple/white line is Line 2/3's pull-
up and pull-down resistor.
Description
--
Fast Ethernet signal MDI0-
Fast Ethernet signal MDI1+
Bi-directional I/O, and it is the trigger
by default.
Bi-directional I/O, and it is used to
switch solutions by default.

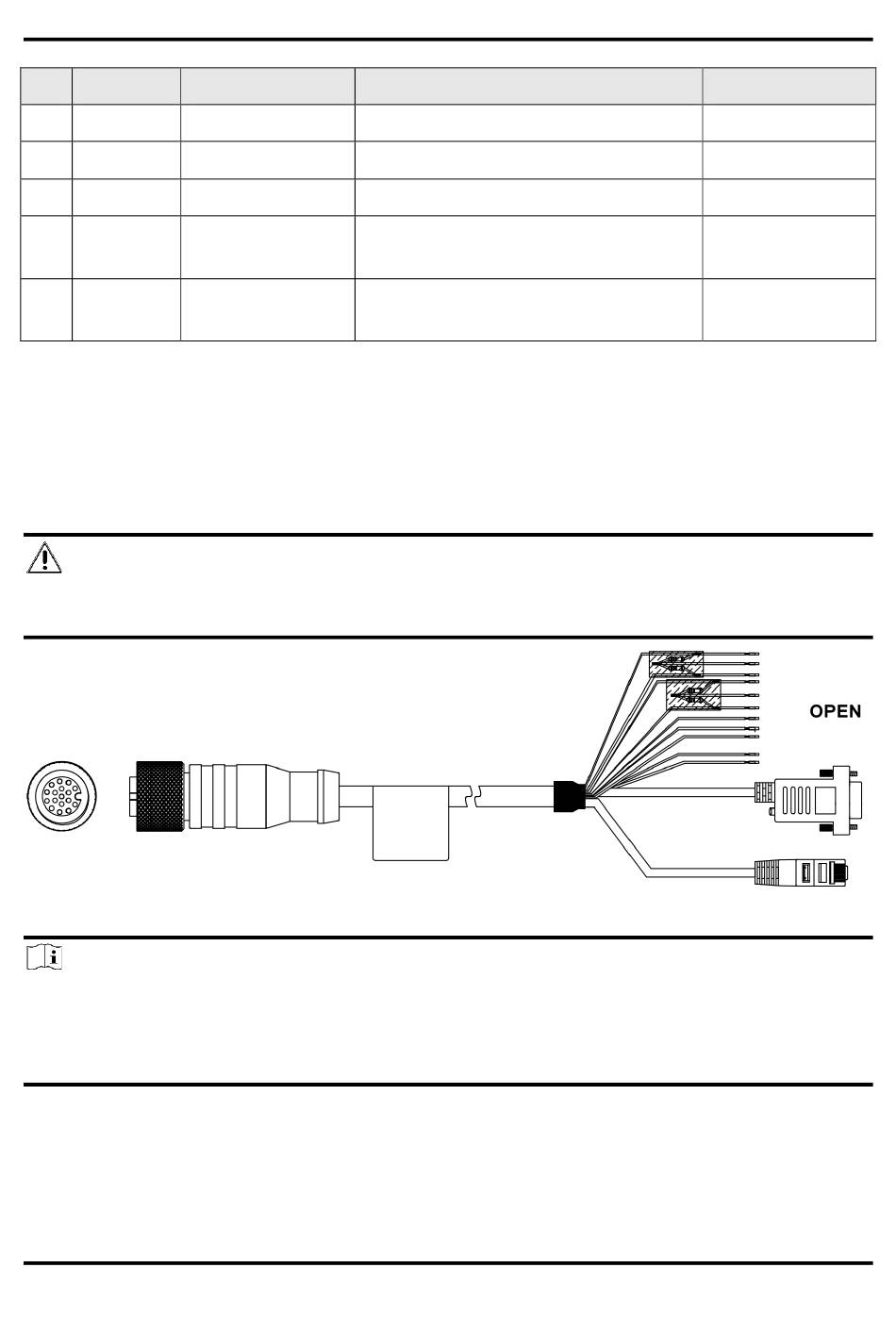

Figure 3-2 17-Pin Cable
5
Supplied Cable
Purple open cable
RJ45 connector
RJ45 connector
Gray open cable
White open cable
