NPN Device
If you do not have available external resistors, you can wire the device as shown below.

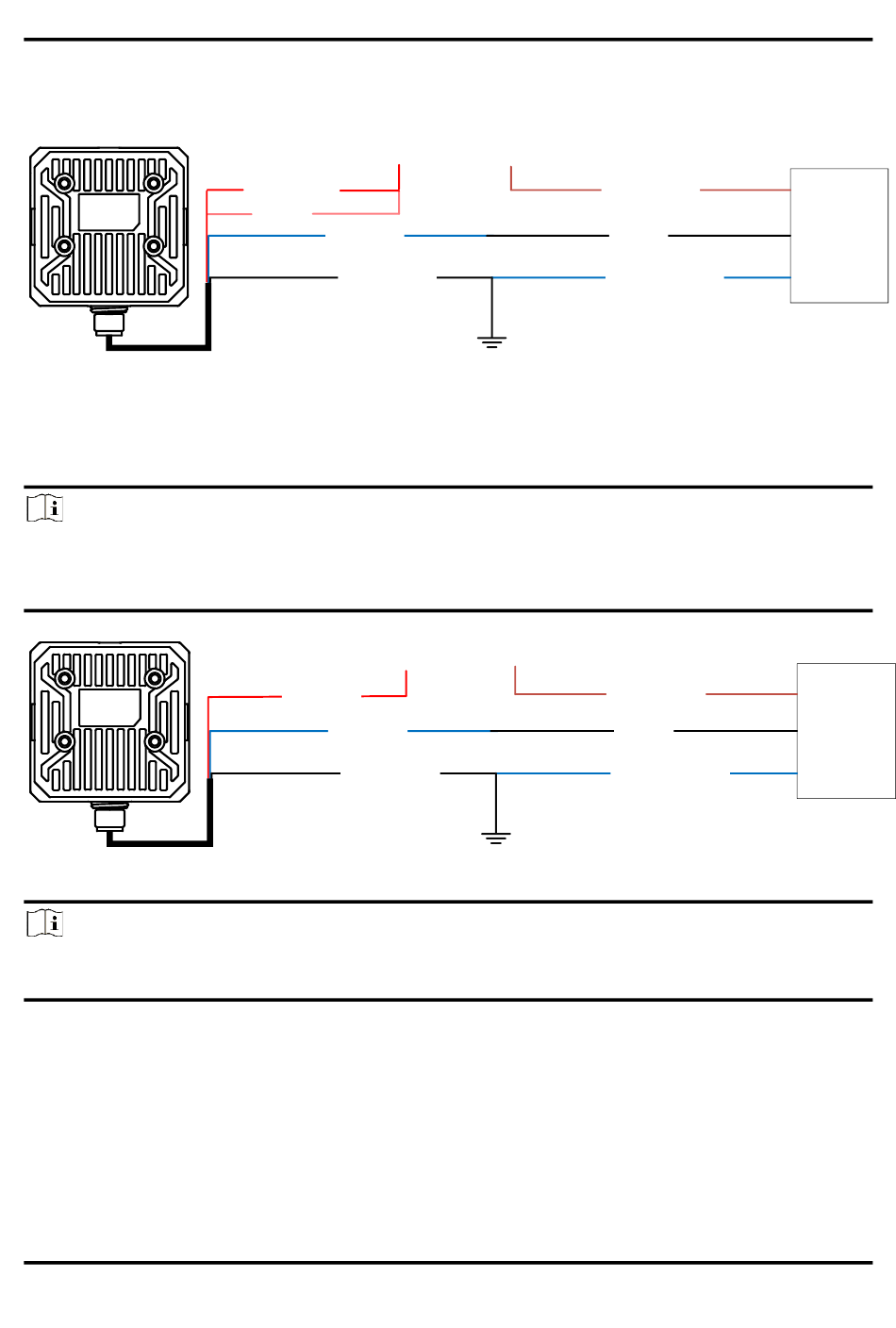

Figure 7-11 Configurable Input Signal Connects to NPN Device

7.2.2 Output Wiring

Note
● You can set I/O output type as PNP or NPN via the client software.
● If the external device is PNP, you should set the device's output signal polarity as NPN.
● If the external device is NPN, you should set the device's output signal polarity as PNP.
Note
When the device's output signal is set as NPN, the voltage of VCC should not higher than that of
PWR. Otherwise, the device's output signal may have exception.

7.3 RS-232 Serial Port

The device can output data via the RS-232 serial port. You can go to the communication settings of
SC3000 Series Vision Sensor Quick Start Guide
PWR
Device Power
IN_COM
Input Signal
Device Power
Ground
Device Power
Output Signal
Line
Device Power
Ground
Figure 7-12 Output Wiring
VCC
GND
VCC
PWR
GND
20
NPN Device
Power
Signal Line
NPN Device
Power Ground
External Device
Power
Signal Line
External Device
Power Ground
NPN
Device
External
Device
