SC2000E(Mini) Series Vision Sensor Quick Start Guide

Chapter 3 17-Pin Interface and Cable

3.1 17-Pin Interface

Read the following section to get definitions of 17-pin interface.
No. Signal I/O Signal Source
1 DC_PWR --
2 -- --
3 -- --
4 RS232_TX --
5 RS232_RX --
6 MDI0+ --
7 MDI1- --
GPIO2 Line 2+
8
9 -- --
GPIO3 Line 3+
10
11 GND Line 0/1/2/3-
12 -- --

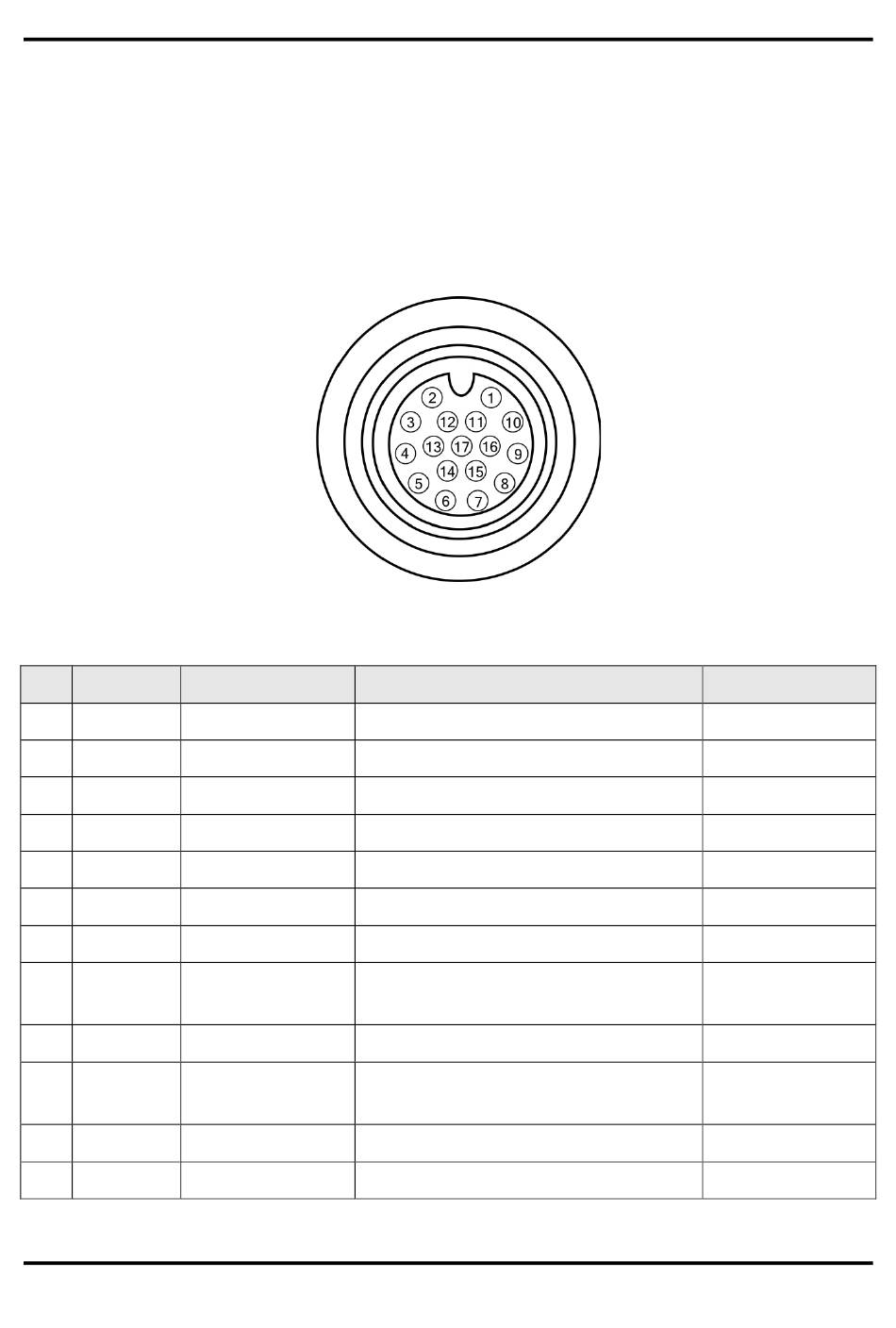

Figure 3-1 17-Pin Interface
Table 3-1 Pin Definitions
Description
Direct current power supply positive
--
--
RS-232 serial port output
RS-232 serial port input
Fast Ethernet signal MDI0+
Fast Ethernet signal MDI1-
Bi-directional I/O, and it is output by
default.
--
Bi-directional I/O, and it is output by
default.
Direct current power supply negative
--
4
Supplied Cable
Red open cable
Brown open cable
--
DB9 serial port
DB9 serial port
RJ45 connector
RJ45 connector
Blue/white open
cable
--
Brown/white
open cable
Black open cable
--
