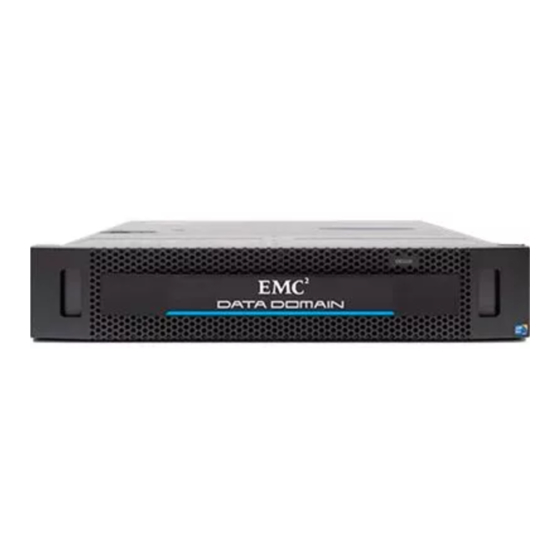

EMC2 Data Domain DD2500 Installation And Setup Manual
  1. Manuals
  2. Brands
  3. EMC2 Manuals
  4. Storage
  5. Data Domain DD2500
  6. Installation and setup manual

EMC2 Data Domain DD2500 Installation And Setup Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Setup Guide
EMC Data Domain DD2500 System Installation
and Setup Guide
302-001-374
REV. 02
February, 2015
This document provides installation for the rack bracket and the DD2500 system and initial
configuration instructions.
documentation..............................................................................................2
needed........................................................................................ 3
information..................................................................................................... 3
system...........................................................................................4
system.................................................................................................. 12
brackets........................................................................................... 12
bezel....................................................................................................... 19
cables................................................................................................ 19
controller....................................................................................... 19
wizard....................................................................................21
rack....................................................................................16
(CMA)................................................................. 17
communication..................................................................... 20
........................................................................ 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Data Domain DD2500 and is the answer not in the manual?

Questions and answers

Related Manuals for EMC2 Data Domain DD2500

Summary of Contents for EMC2 Data Domain DD2500

  • Page 1: Table Of Contents

    Installation and Setup Guide EMC Data Domain DD2500 System Installation and Setup Guide 302-001-374 REV. 02 February, 2015 This document provides installation for the rack bracket and the DD2500 system and initial configuration instructions. Related documentation....................2 Tools and supplies needed..................3 Safety information.....................

  • Page 2: Related Documentation

    Installation and Setup Guide Related documentation EMC provides a variety of document types to support our products. End-user documents include user guides, hardware installation guides, administrator guides, software guides, part replacement guides, release notes, and others. Integration documents describe how to integrate Data Domain systems with third party backup applications, and compatibility matrices show which components are compatible with each other.

  • Page 3: Tools And Supplies Needed

    EMC Data Domain DD2500 System Installation and Setup Guide For information about: Go to https://support.emc.com/ EMC Data Domain Boost for OpenStorage How to install and use the DD Boost software and plug-in Administration Guide for your software release How to replace Data Domain hardware...

  • Page 4: Description Of The System

    Installation and Setup Guide Load the rack beginning at the bottom to prevent the rack from becoming top-heavy. For ESD protection, EMC Data Domain recommends that you wear a suitable antistatic wrist or ankle strap. Observe all conventional ESD precautions when handling plug-in modules and components.
  • Page 5 EMC Data Domain DD2500 System Installation and Setup Guide Non-operating temperature: -40° to +149° F (-40° to +65° C). Operating acoustic noise: Sound power, LWAd, is 7.52 bels. Sound pressure, LpAm, is 56.4 dB. (Declared noise emission per ISO 9296.) Storage capacity The table lists the capacities of the DD2500 system.
  • Page 6 Installation and Setup Guide Front panel Figure 1 Front panel components Front LED indicators The front of the system contains 12 disk drive status LEDs that are normally blue and blink when there is activity on the disk. The LEDs are shaped like triangles, and the apex of the triangle points either left or right toward the disk whose status it represents.
  • Page 7 EMC Data Domain DD2500 System Installation and Setup Guide Figure 3 Bezel showing lighted system power LED Disk drives The system contains up to 12 hot-swappable 3.5" HDD SAS disk drives, located in the front of the chassis. Left to right, drives are numbered 0-3 in the top row, 4-7 in the middle row, and 8-11 in the bottom row.
  • Page 8 Installation and Setup Guide Port layout Figure 5 Port numbers on back panel 1. Physical 4, logical ethMe (10GBaseT). 2. Physical 2, logical ethMc (1 GE). 3. Physical 0, logical ethMa (1 GE). 4. Service network port. 5. Physical 5, logical ethMf (10GBaseT). 6.
  • Page 9 EMC Data Domain DD2500 System Installation and Setup Guide Onboard interfaces and LEDs Figure 7 Onboard interfaces and LEDs 1. Serial number label. 2. SP power LED (top); SP service LED (bottom). 3. Dual-port 10GBaseT. 4. Quad-port Gigabit Ethernet. 5. Service network port (top); USB port (bottom).
  • Page 10 Installation and Setup Guide I/O modules and slot assignments DD2500 slot assignments on page 10 for the I/O module slot assignments of the system. Table 2 DD2500 slot assignments Slot Number DD2500 System FC, Ethernet or empty FC, Ethernet or empty FC, Ethernet or empty SAS or empty NVRAM-BBU...
  • Page 11 EMC Data Domain DD2500 System Installation and Setup Guide Figure 8 Top view of SP module (DD2500 system shown) Cooling fans A system processor module contains seven cooling fans. The fans provide cooling for the processor, DIMMs, and I/O modules. A system can run with one fan module faulted.

  • Page 12: Unpack The System

    Installation and Setup Guide Unpack the system 1. Open the “Open Me First” box. 2. Remove the accessories and rack-mount kit from the shipping packages. 3. Remove the controller and bezel from the shipping packages. Install the rack brackets Data Domain systems are installed into racks using the rack bracket hardware. Bracket hardware The rack-mounting kit is compatible with racks that have front-to-rear post spacing between 18 inches and 36 inches.
  • Page 13 EMC Data Domain DD2500 System Installation and Setup Guide Figure 11 Bracket assembly adapter screws and orientation marking 1. Adapter screws. 2. “L” for left side. Gap filler (2) Figure 12 Gap filler Assorted screws. One multipurpose screwdriver. Install the brackets onto the rack...
  • Page 14 Installation and Setup Guide Figure 13 Rear screw caps (for threaded hole racks) Note The rear guide pin is shown between the two screw caps. 1. Bracket screw caps. Figure 14 Remove front screw caps 2. As needed, select the bracket marked right or left. Orientation assumes you are facing the front of the rack.
  • Page 15 EMC Data Domain DD2500 System Installation and Setup Guide Figure 15 Rack bracket 1. Front. 2. Back. 3. From the rear of the system, hold the bracket against the inside of the rack posts. Align the rear guide pin and slide the bracket towards the front.

  • Page 16: Install The System In The Rack

    Installation and Setup Guide Figure 16 Attach bracket to front of rack 1. Hole for top register pin on the system. 2. Hole for captive screw on the system. 3. Add a second, optional screw to secure the system. 4. Attach the rail to the rack using a provided screw. 5.

  • Page 17: Install The Cable Management Arm (Cma)

    EMC Data Domain DD2500 System Installation and Setup Guide Figure 17 Left captive screw Install the cable management arm (CMA) Procedure 1. Holding the CMA upright, slide the silver brackets on either side of the CMA over the extension on the rear of each rack rail.
  • Page 18 Installation and Setup Guide Figure 19 CMA bracket engaged with rear of rail 2. The blue-colored plunger button should click into place, locking the CMA bracket to the rail. 3. To adjust the CMA position up or down, pull on the orange latches and pull up or down on the arm as needed.

  • Page 19: Install The Bezel

    EMC Data Domain DD2500 System Installation and Setup Guide Install the bezel Procedure 1. Depress the two handhold positions. 2. Push the bezel into place on the front of the chassis, making sure the handhold locks click into place. Figure 22 Front bezel Note The photo shows the bezel attached to a live system.

  • Page 20: Enable Administrative Communication

    Installation and Setup Guide If the battery is good, but the system will not boot, or if the battery is failing to charge, contact EMC Data Domain Technical Support. Enable administrative communication Note See the DD2500 back panel on page 7 for the locations of the onboard interfaces.

  • Page 21: Run The Configuration Wizard

    EMC Data Domain DD2500 System Installation and Setup Guide Press any key then hit enter to acknowledge the receipt of EULA information: Customer acceptance is required. Note An EMC representative should not accept the agreement. If a customer is not present to...
  • Page 22 Installation and Setup Guide 5. Enter a fully qualified domain name (FQDN) for the hostname; for example, . Or accept the hostname, if the system was able to str01.yourcompany.com discover it. Enter the hostname for this system (fully-qualified domain name)[]: 6.
  • Page 23 EMC Data Domain DD2500 System Installation and Setup Guide ethMa 192.168.10.181 255.255.255.0 ethMb ethMc ethMd ethMe ethMf ----- ------- ----- ---- -------------- ------------------------ Do you want to save these settings (Save|Cancel|Retry): Save 12.The wizard exits to the CLI and the following message displays.
  • Page 24 Installation and Setup Guide ok, proceeding. The system is going down for reboot. 7. After the system completes the reboot, login again as using the serial sysadmin number as a password. Press to get through the EULA, sysadmin password Ctrl-C prompt, and config setup wizard.
  • Page 25 EMC Data Domain DD2500 System Installation and Setup Guide © Copyright 2014-2015 EMC Corporation. All rights reserved. Published in USA. Published February, 2015 EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice.
