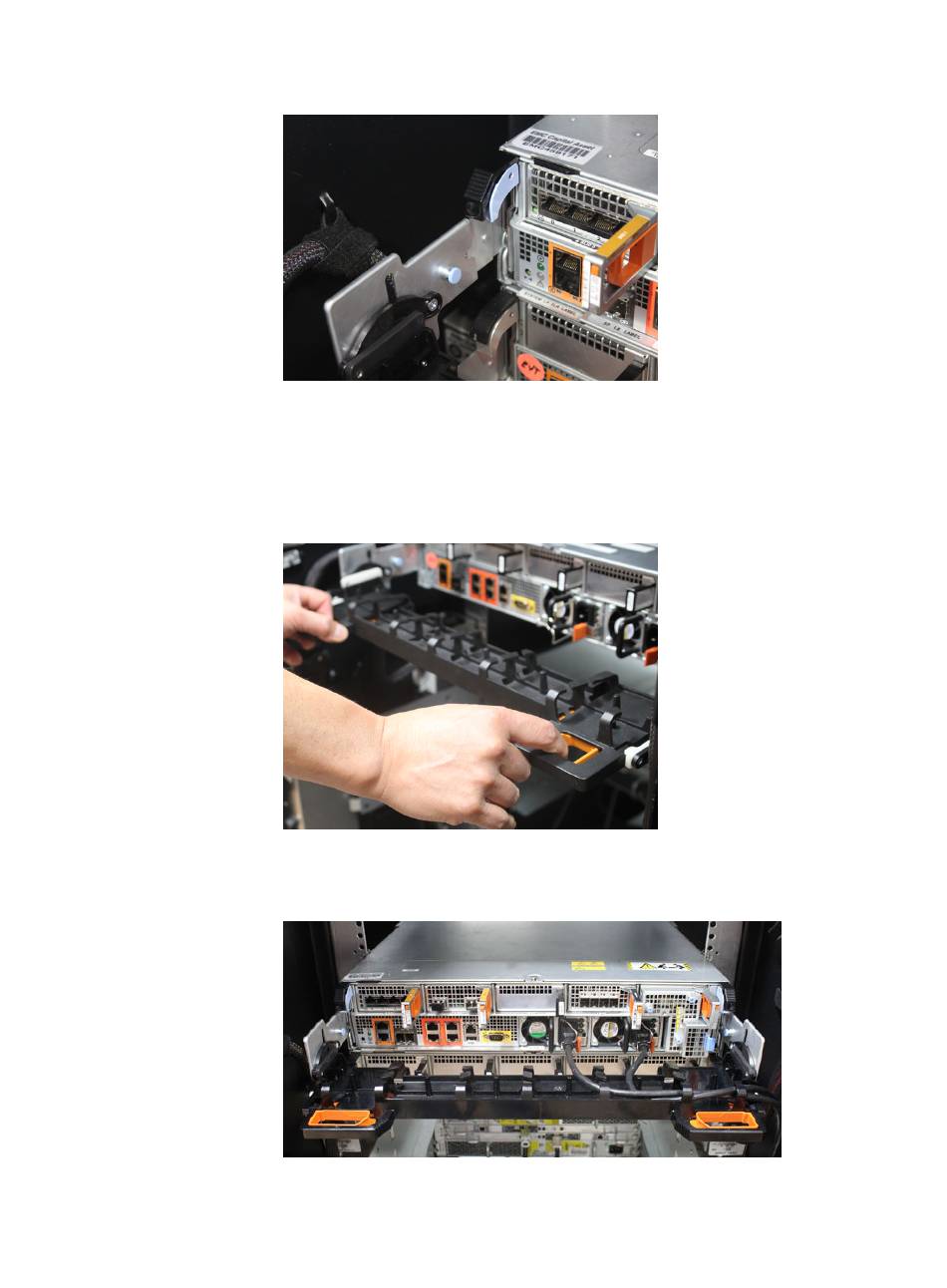

Figure 19 CMA bracket engaged with rear of rail
2. The blue-colored plunger button should click into place, locking the CMA bracket to
the rail.
3. To adjust the CMA position up or down, pull on the orange latches and pull up or
down on the arm as needed.
Figure 20 Adjusting the position of the CMA
4. Organize the cables as needed.
Figure 21 Cables organized on CMA
