Before you start
Tasks to replace a solid state disk (SSD)
®

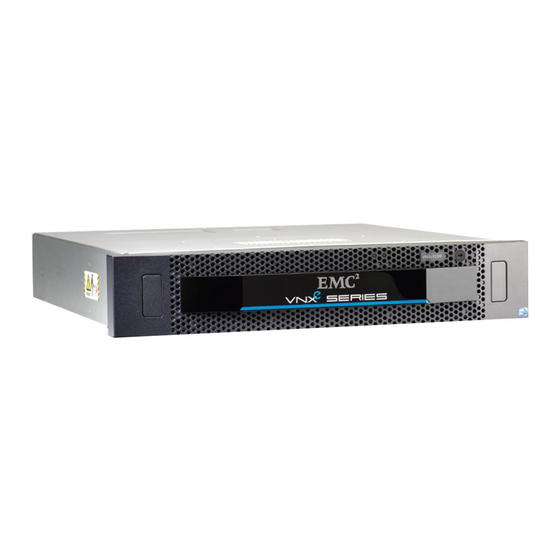

EMC
VNXe3100/VNXe3150
Replacing a Solid State Disk (SSD)
P/N 300-012-221
REV 02
This document describes how to replace a solid state disk (SSD) in a VNXe3100 or
VNXe3150 disk processor enclosure (DPE).
Before you start the procedure, refer to your EMC® VNXe™ online help (Servicing your
system > Adding or replacing faulted hardware components > Replace a faulted hardware
component) for instructions on how to identify failures, order new parts, and handle
hardware components.
Task 1: Preparing The Storage Processor (Sp) For Service ............................................ 2
◆
Task 2: Remove The Sp Assembly............................................................................... 3
◆
Task 3: Replace The Solid State Disk........................................................................... 4
◆
Task 4: Replace The Sp Assembly............................................................................... 5
◆
Task 5: Reboot The Sp ............................................................................................... 5
◆
Task 6: Verify The Operation Of The Replacement Solid State Disk................................. 6
◆
Task 7: Return The Faulted Solid State Disk ................................................................. 6
◆
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EMC2 VNXe3100
Summary of Contents for EMC2 VNXe3100
- Page 1 Replacing a Solid State Disk (SSD) P/N 300-012-221 REV 02 This document describes how to replace a solid state disk (SSD) in a VNXe3100 or VNXe3150 disk processor enclosure (DPE). Before you start Before you start the procedure, refer to your EMC® VNXe™ online help (Servicing your system >...
- Page 2 Service mode and is receiving active power. 6. Wait until the SP fault LED is flashing alternating amber and blue before continuing to the next task. e0 e1 1 GBE 6Gb SAS 6Gb SAS SP fault EMC VNXe3100/VNXe3150 — Replacing a Solid State Disk (SSD)
- Page 3 6. Use both hands to support the assembly and pull it fully out of the enclosure. CL4682 7. Place the assembly on a clean, flat static-free work surface. EMC VNXe3100/VNXe3150 — Replacing a Solid State Disk (SSD)
- Page 4 Save the packaging material to return the faulted disk. 4. Slide the replacement solid state disk into the slot in the SP, making sure that the latch snaps in place. CL4652 EMC VNXe3100/VNXe3150 — Replacing a Solid State Disk (SSD)
- Page 5 It may take up to 12 minutes for the system to complete its reboot to return to Normal mode and restart the servers. 5. Refresh your browser, or follow the on-screen instructions, to bring the software out of Service mode and restore full-function Unisphere. EMC VNXe3100/VNXe3150 — Replacing a Solid State Disk (SSD)
- Page 6 All other trademarks used herein are the property of their respective owners. For the most up-to-date regulatory document for your product line, go to the technical documentation and advisories section on EMC Online Support. EMC VNXe3100/VNXe3150 — Replacing a Solid State Disk (SSD)
