Cooling fans
DIMM modules

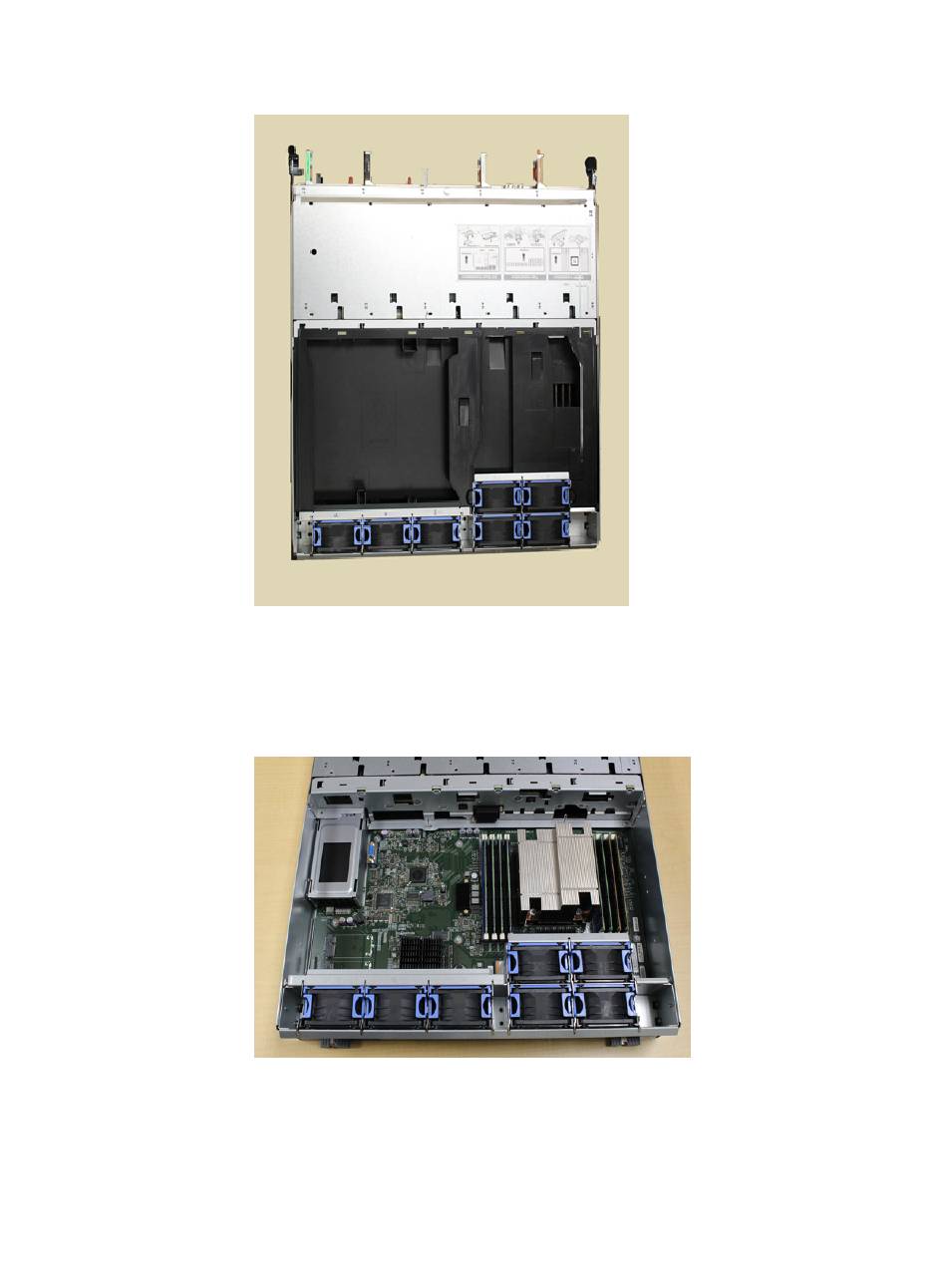

Figure 8 Top view of SP module (DD2500 system shown)
A system processor module contains seven cooling fans. The fans provide cooling for the
processor, DIMMs, and I/O modules. A system can run with one fan module faulted.
Figure 9 Top view of SP module with air ducts removed
DD2500 systems can contain either 4 x 8 GB or 8 x 8 GB memory DIMMs.
EMC Data Domain DD2500 System Installation and Setup Guide
Internal system components
11
