Install the cable management arm (CMA)

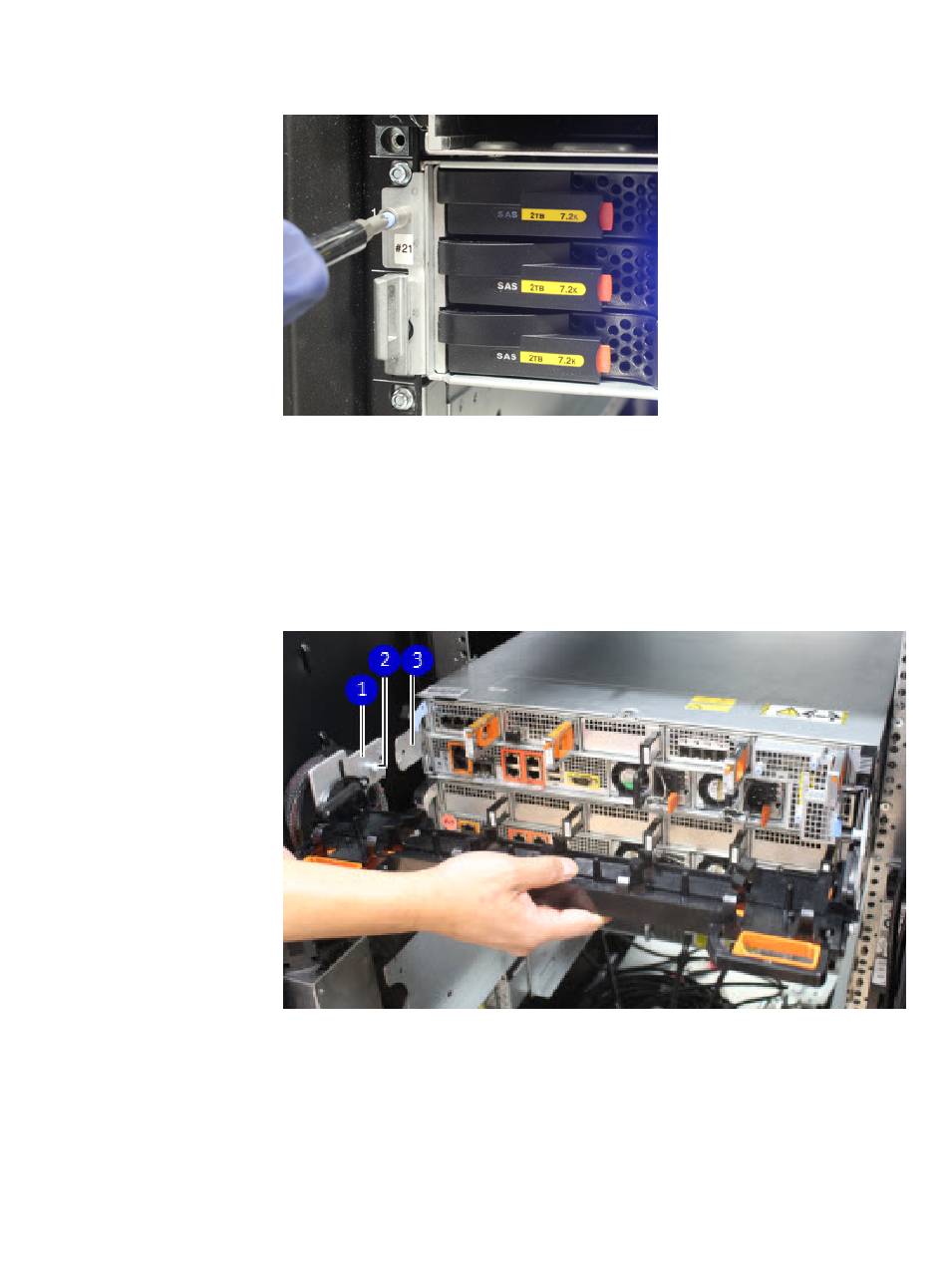

Figure 17 Left captive screw
Procedure
1. Holding the CMA upright, slide the silver brackets on either side of the CMA over the
extension on the rear of each rack rail.
Figure 18 Installing the CMA
1. CMA bracket.
2. Blue plunger button.
3. Rear extension of the system rail.
