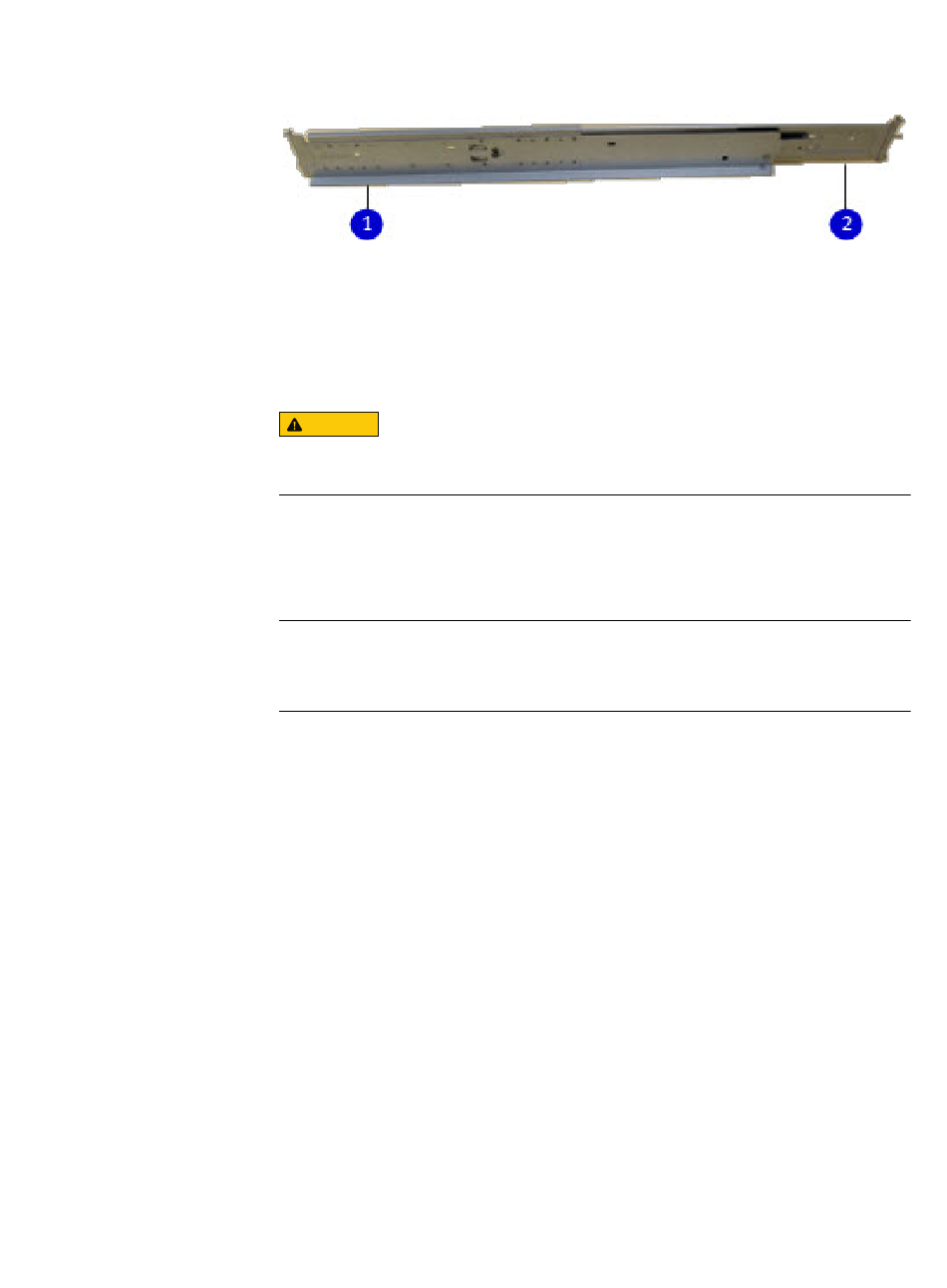

Figure 15 Rack bracket
1. Front.
2. Back.
3. From the rear of the system, hold the bracket against the inside of the rack posts.
Align the rear guide pin and slide the bracket towards the front.
CAUTION
If the bracket is mounted in holes that are not vertically aligned from front to back,
the bracket may be damaged and mounting will not be secure.
4. Pull the adjustable sliding part of the bracket towards the front until it is close to, but
not touching, the front of the rack. The bracket adjusts to fit most racks.
5. Attach the bracket to the rear of the rack using the furnished screws. There are six
holes. Add screws to the second and fifth holes.
Note
If more convenient, you may attach the second bracket while still at the rear of the
rack.
6. If your rack contains threaded holes, add a gap filler to the front end of the bracket at
the front of the system. Otherwise, skip to the next step.
7. Attach the bracket (along with the gap filler, if applicable) to the front of the rack.
There are five holes in the front. Add a screw to the fourth hole. See the photo.
EMC Data Domain DD2500 System Installation and Setup Guide
Install the brackets onto the rack 15
