6 Hardware Installation
6.1 Equipment Installation
The ION-R200 can be placed on a flat surface, such as a desktop, or mounted via the available mounting
bracket. When installing the ION-R200, position the unit to allow for cable clearance at the front and rear of
the unit. Make sure that minimal air flow is provided to the unit.
The ION-R200 can be mounted to various mounting structures via the available VESA mounting assembly.
Ideal to mount the ION-R200 behind a screen. Note that VESA mounting screws are shipped with the device.
Warning: Be careful not to damage the enclosure when using mounting screws.
7 Connections
The ION-R200 offers two separate digital video output connections as well as several USB and audio
connections.

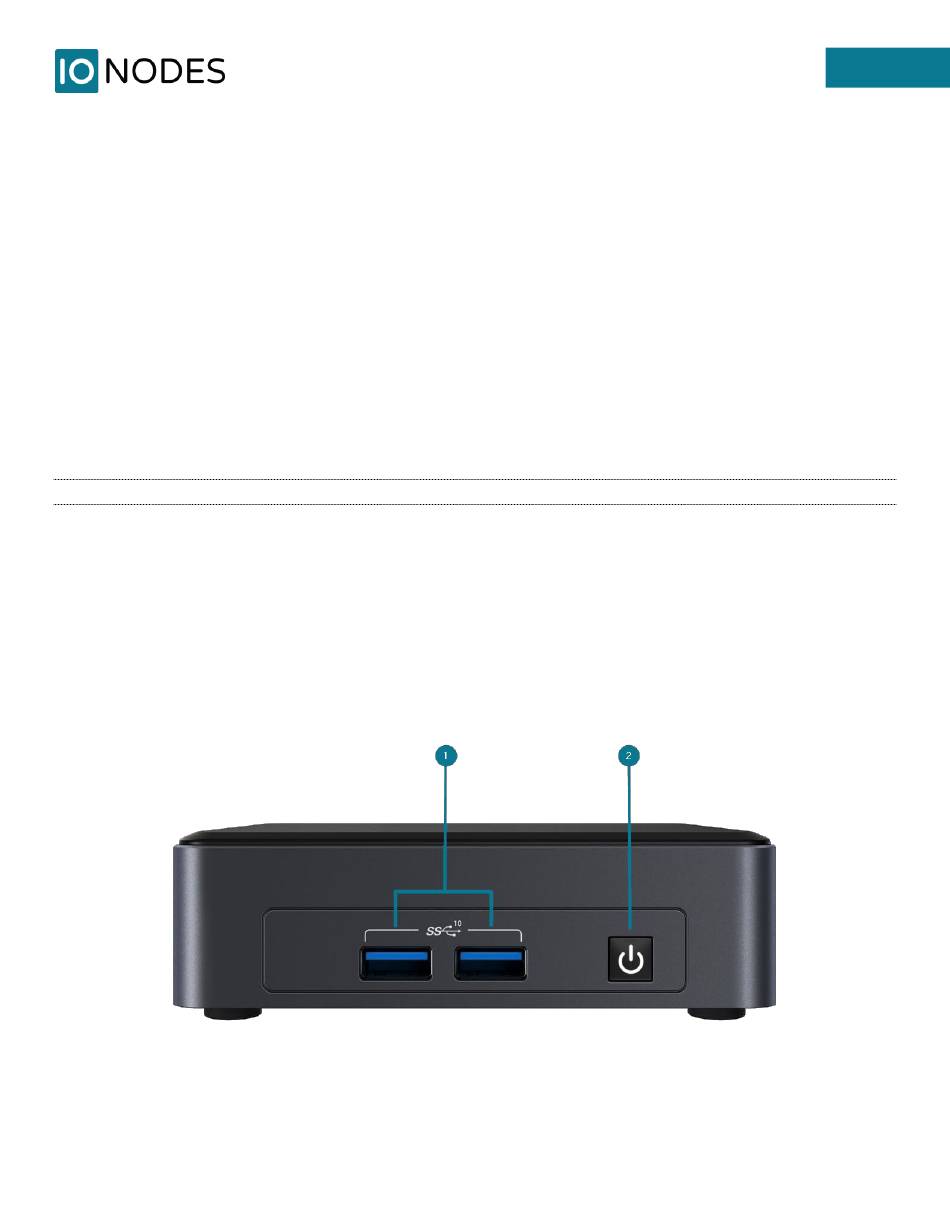

7.1 Front Panel
