When a single display is connected to the ION-R200, that display is always referred to as Video Output 1
regardless of the connector (HDMI or Mini DisplayPort) the display is connected to. If two displays are
connected to the ION-R200, click on
which is Video Output 2.
Output Resolution
•
Determines the display resolution to use for this output. See below for details.
Output Orientation
•
Determines the orientation of this output. The available options are: Landscape, Portrait, Landscape
(Flipped) and Portrait (Flipped).
Overlay Visibility
•
The overlay is the utility bar at the top of the screen. The overlay can be displayed at all times or it can
automatically hide itself after being used. When auto-hidden, moving the mouse to the top of the
screen shows (temporarily) the overlay.
Selected View
•
Selects the view to display on this output. Changing this value is the equivalent of selecting a view in
the view selector in the top-left corner of the screen.
Tiles Identification
•
Adds a small on-screen text for each tile depicting the ID of that tile. This is particularly useful for
quickly identifying a tile when using multiple video outputs and multiple tiles in each video output. The
IDs can be either global (ex. Tile 17 could be for instance the 1

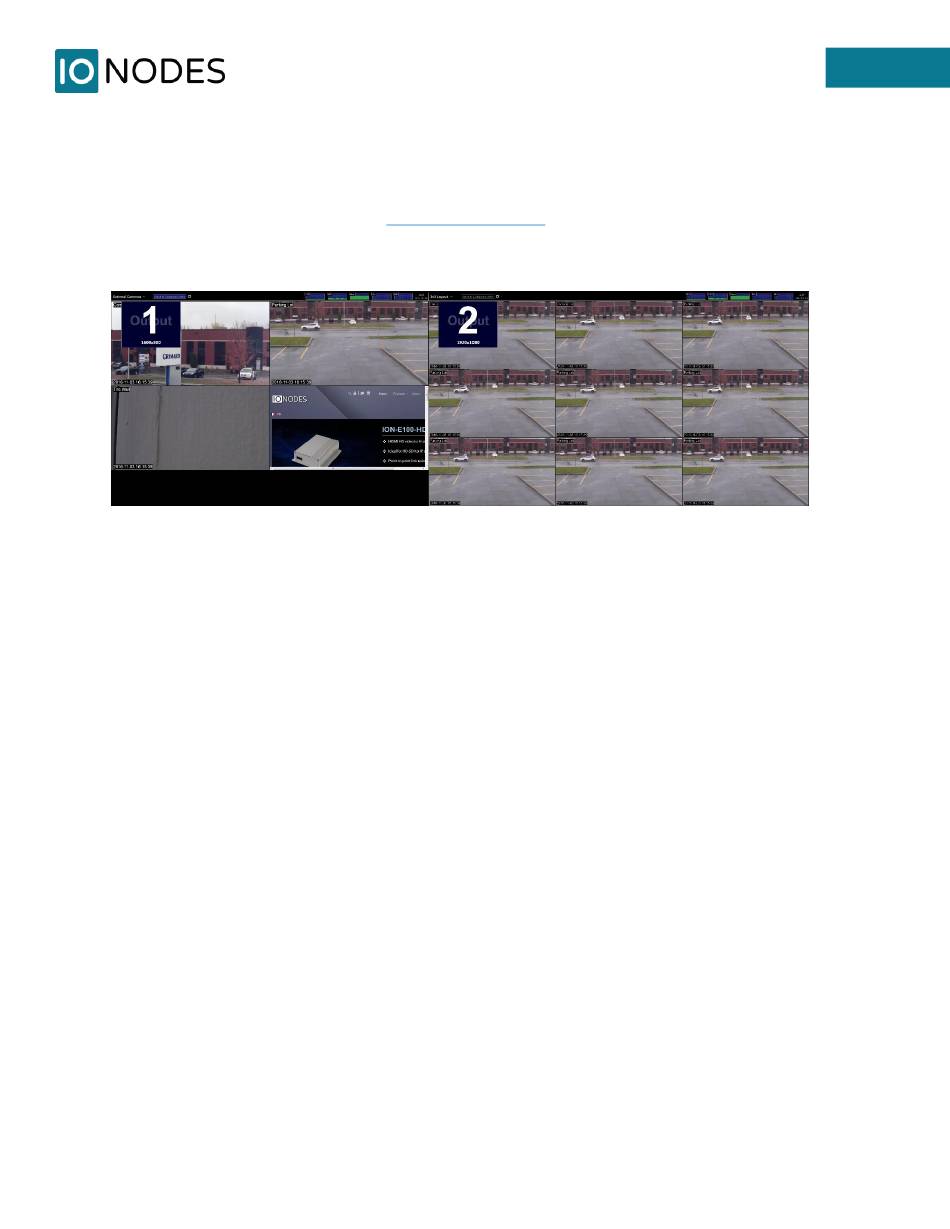

Identify Video Outputs
