IONODES ION-R200 User Manual page 67

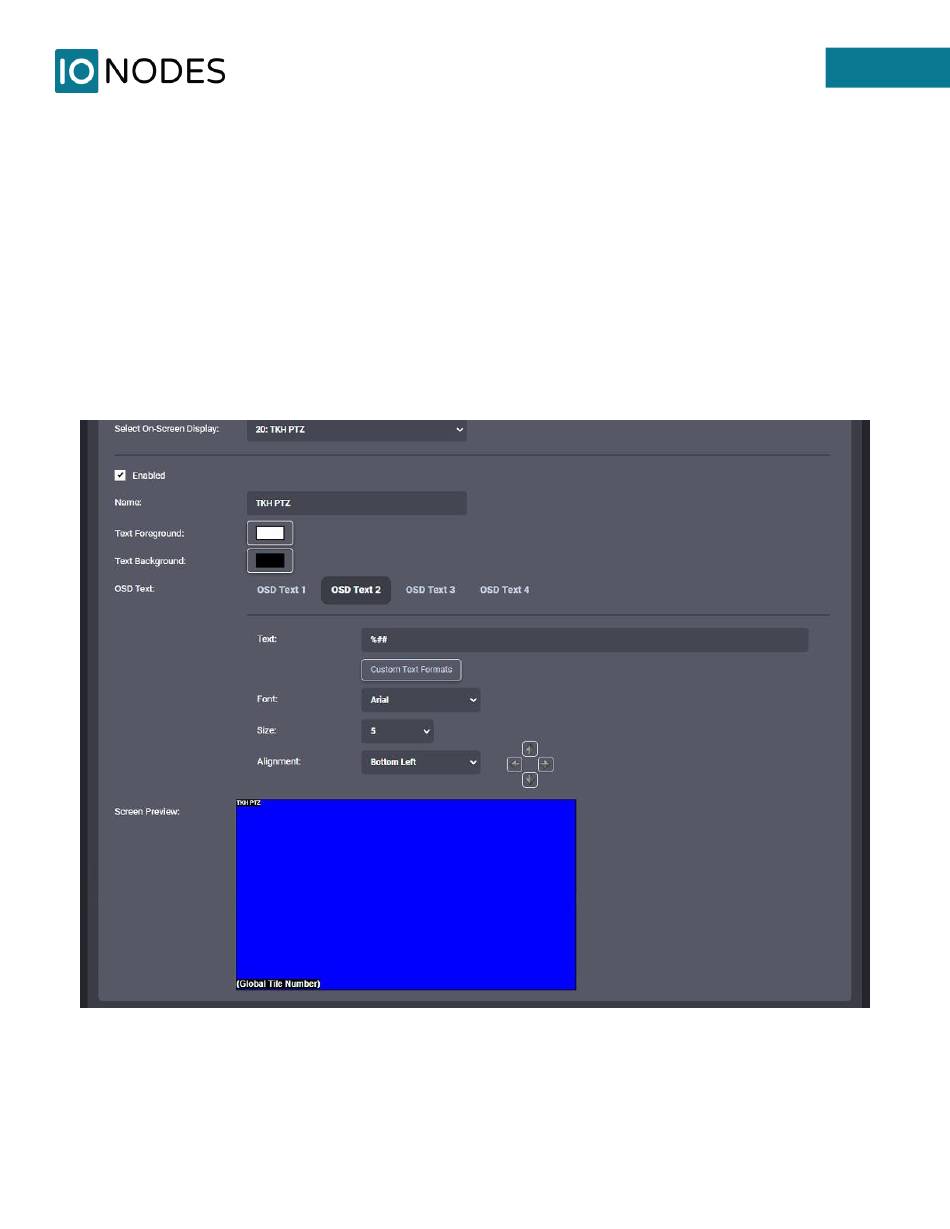

%##: displays the tile number in the format « Tile {GlobalTileNum} »
•
Ex: Tile 32
o
The numbering of the tiles does not reset to 1 on each video output. If the layout on the video
o
output #1 is 2x2, then the first tile from output #2 will be tile 5.
If the layout on video output #1 changes (ex.: 2x2 -> 3x3), the numbering of the tiles on video
o
output #2 will also change dynamically as a consequence (the first tile from video output #2 will
move from 5 to 10).
