Click on Text Foreground to select the color of the OSD text. In the same fashion, click on Text Background to
select the background color for the OSD text.

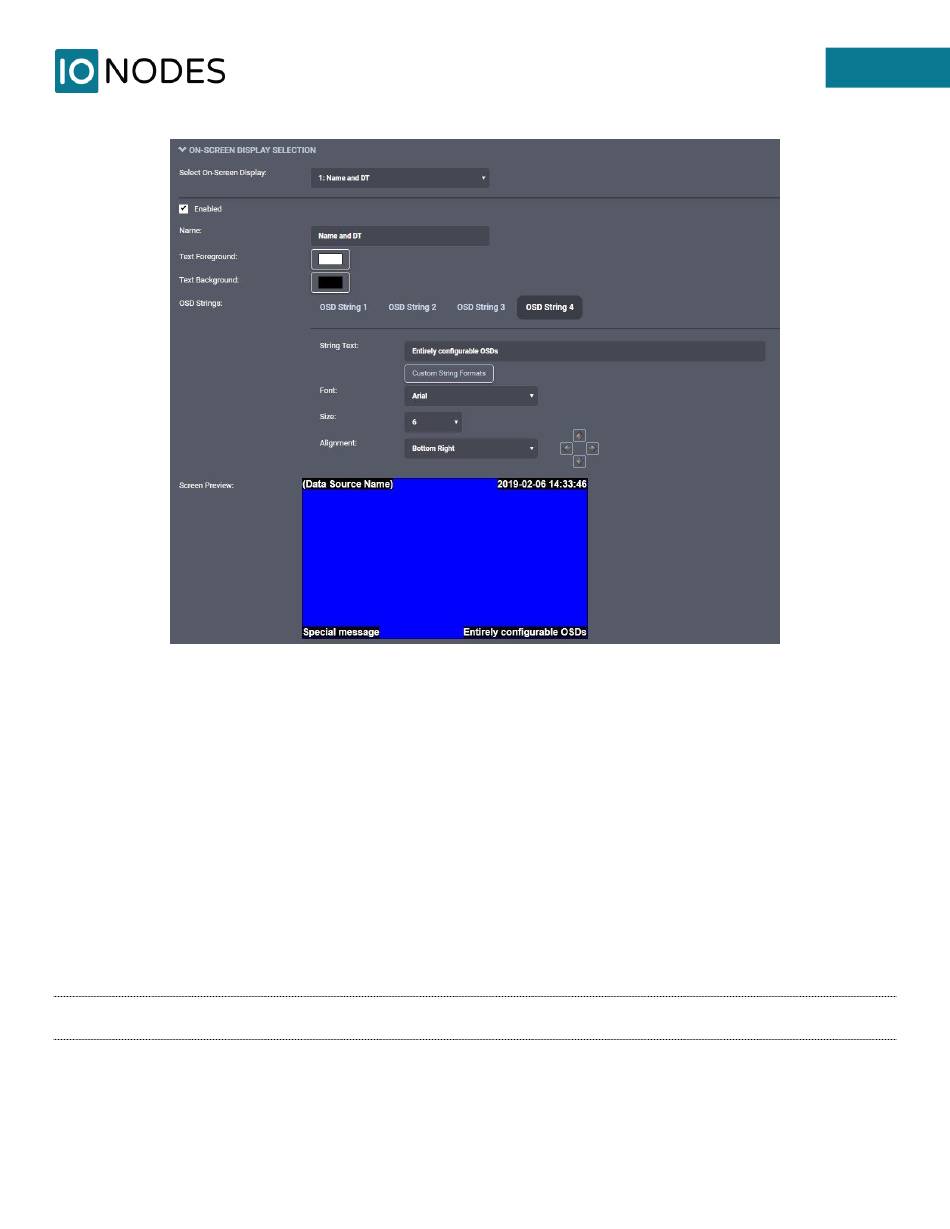

Above the preview is where you configure each OSD string. Click on the OSD String 1 to configure the first
OSD string. In String Text, type in the text to display. Select the desired Font, you have a choice of either Arial
(used throughout this manual) or Impact. Text Size lets you select how big to display the text. Finally,
Alignment lets you select where to anchor the text (ex: top left corner). Use the Offset arrows if you want to
move the text around that anchor.
To configure other OSD strings, click on 2, 3 or 4 and set the appropriate text, alignment and size.
Note: The ION-R200 provides a wide range of possible text sizes to ensure readability on a wide variety of
display sizes with resolutions from HD-720 all the way to 4K.
