9.17 PTZ Keyboard

The ION-R200 can be operated remotely, over the LAN, via a network keyboard (an optional joystick may or
may not be attached to the keyboard).

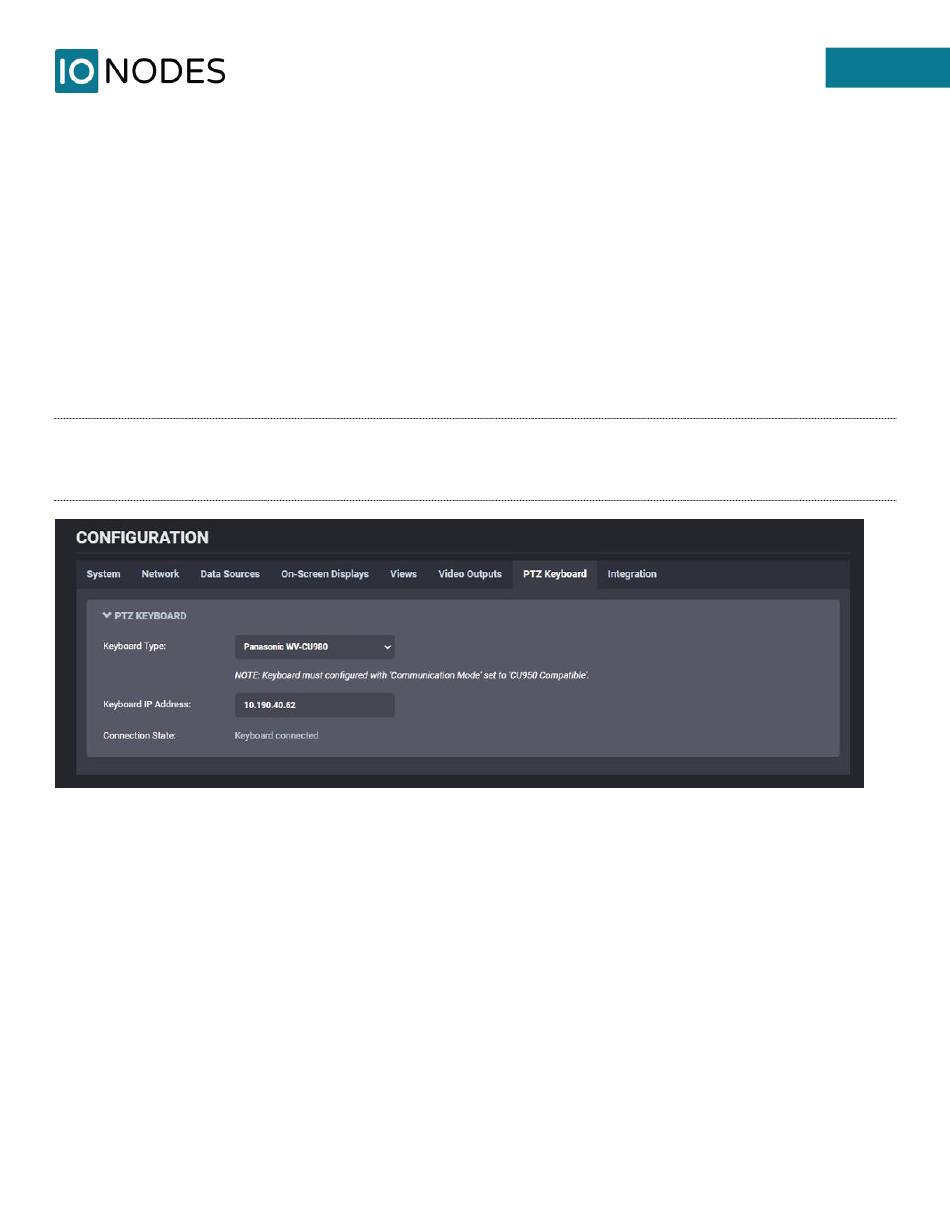

In order to get started you need to select the keyboard type and input the IP address of the keyboard. If
everything is configured correctly, it only takes a couple of seconds to connect to the keyboard. The web
interface of the ION-R200 offers the end-user feedback with regards to the current connection state. The
connection state is also reported on the keyboard's built-in status screen.
Note: Please check your keyboard's user manual for more information on how to configure its own IP address
and how to set the IP address of the remote device that the keyboard is connecting to. Be aware that
using DHCP on the remote device (in our case the ION-R200) can cause connection issues with the
keyboard if the IP address changes after a reboot or after unplugging/plugging the Ethernet cable.
The network keyboard allows you to select a specific tile on the screen and assign a data source to it from the
list of available data sources. When an invalid tile or data source is selected, a visual feedback is offered on the
keyboard's built-in status screen. The command sequence is as follows:
to select the tile, input on the PTZ keyboard the tile number + the key "MON"; note that the tile stays
•
selected until a different tile is selected or the keyboard is disconnected
to assign a camera to a previously selected tile, input on the PTZ keyboard the corresponding data
•
source number + "CAM"
