Hardware Installation and Reference Guide
The
S5760C-24SFP/8GT8XS-X
one power supply module, or two power supply modules. When both two modules are working, the switch is working in
power redundancy mode.
Heat Dissipation
The
RG-S5760C-24SFP/8GT8XS-X
the device in the specified environment. Maintain a minimum clearance of 10 cm (3.94 in.) around the chassis to allow air
circulation.

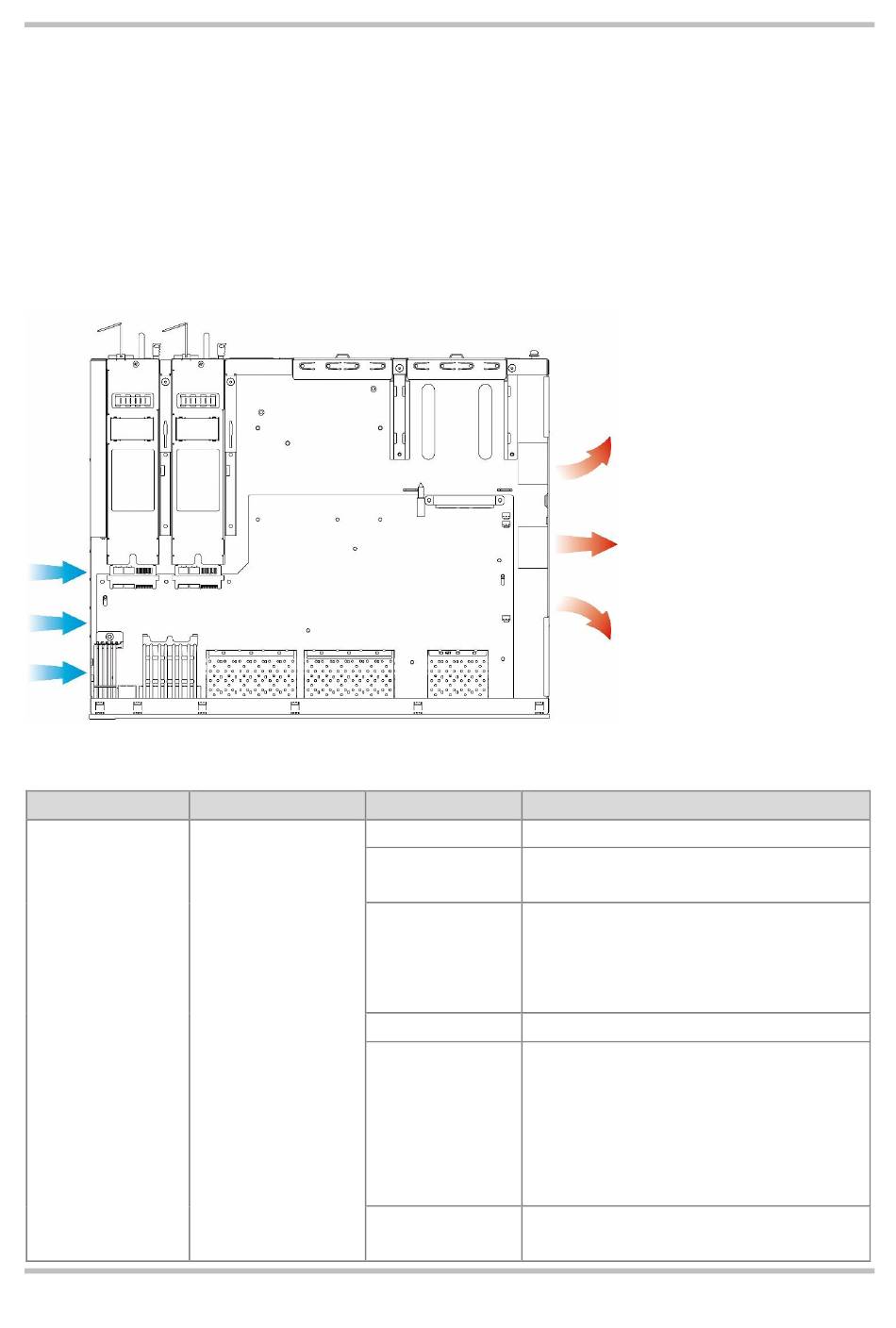

Figure 1-12 Flow Scheme of Heat Dissipation
LED
LED
System LED
supports two power supply modules. Dual-power input: The switch can be powered by
uses left-to-right airflow for heat dissipation, thereby ensuring the normal function of
Panel Identification
Status
Status
Meaning
Off
The switch is not powered on.
Blinking green
Initialization is in progress. Continuous blinking
(3 Hz)
indicates a fault.
It is used for on-site positioning of the device,
Blinking green (10
and allows operation and maintenance
Hz)
personnel to perform remote power on and off
control.
Solid green
The switch is operational.
Temperature alarm:
1. The temperature of inlet/outlet vent exceeds
the warning threshold.
Solid yellow
2. The power is insufficient for the system.
Check the working environment of the switch
and power supplies immediately.
The switch is faulty. For details, see
Solid red
Troub leshooting.
