Ruijie RG-S5760C-X Series Hardware Installation And Reference Manual page 12

Hardware Installation and Reference Guide
Safety Standard GB4943-2011
Dimensions
440 mm x 340 mm x 44 mm (17.32 in. x 13.39 in. x 1.73 in.)
(W x D x H)
Weight 4.5 kg (9.92 lbs.)
Product Appearance
The RG-S5760C-48GT4XS-X
MGMT port, 1 USB port, and 1 Console port on the front panel, as well as 2 power supply module slots on the back
panel.

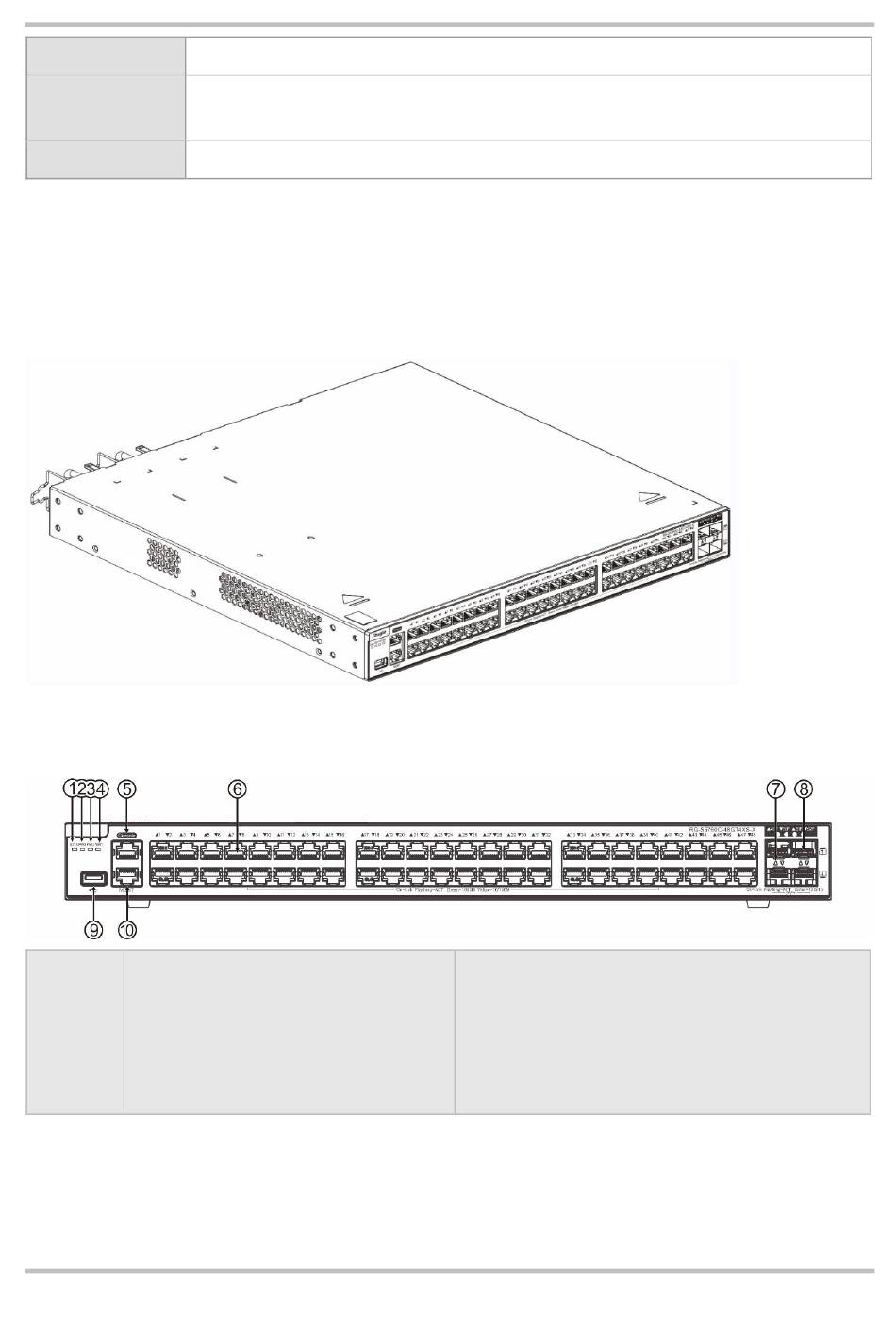

Figure 1-5 Appearance of RG-S5760C-48GT4XS-X
Front Panel
Figure 1-6 Front Panel of RG-S5760C-48GT4XS-X
Note: 1. System Status LED
2. Power Supply Status LED (PWR1)
3. Power Supply Status LED (PWR2)
4. MGMT Port Status LED
5. Console Port
6. 10/100/1000Base-T Ethernet Port
Rear Panel
Figure 1-7 Rear Panel of RG-S5760C-48GT4XS-X
Ethernet switch provides 48 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ ports, 1
7. Port Status LED
8. 10GE SFP+ Port
9. USB Port
10. MGMT Port
9
Overview
