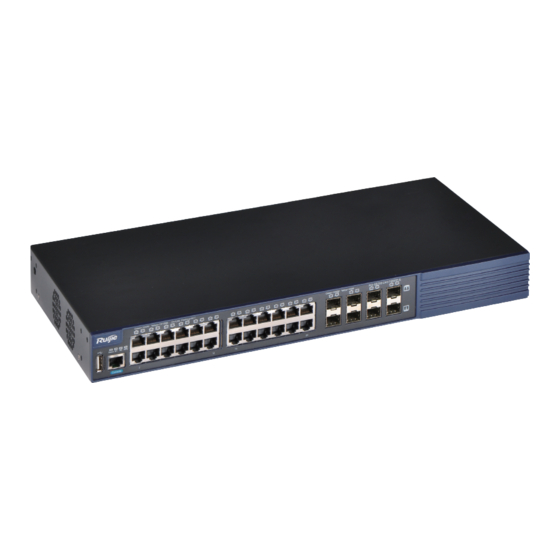

RG-S5750-E Series Switches
Hardware Installation and Reference Guide V1.58

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-S5750-E Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-S5750-E Series

Summary of Contents for Ruijie RG-S5750-E Series

  • Page 1 RG-S5750-E Series Switches Hardware Installation and Reference Guide V1.58...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

    Product Overview 1 Product Overview The RG-S5750-E series switches are the next generation Layer 3 switches introduced by Ruijie Networks. Featuring high performance, reliable security, and multiple services, the RG-S5750-E series switches are mainly applicable to the convergence layer of large-scale networks to provide full wire-speed exchanging and complete QoS services, classify different services according to different business needs and ensure the prompt transmission of key data.
  • Page 5 Mini-GBIC-GT The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. BIDI optic module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.
  • Page 6 Hardware Installation and Reference Guide Product Overview Temperature Support Warning GB9254/GB17625 CLASS A GB4943/IEC60950/UL/CE Security Compliance Dimensions (W x 440 mm x 260 mm x 44 mm D x H) Weight 4.9 kg (with extension modules) ; 3.9 kg (without extension modules) RG-S5750-24GT/8SFP-E switch is a class A product.
  • Page 7 At present, the redundant power supply interface can be used together with the RPS150 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur or damage the switch.
  • Page 8 Hardware Installation and Reference Guide Product Overview LED Indicators Indicator Panel Identification Status Meaning Status indicator Status The switch is powered down. Blinking green The switch is being initialized. If the blinking persists, however, it indicates that an abnormality occurs. Solid green The switch is working properly.
  • Page 9 Mini-GBIC-GT The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. BIDI optical module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.
  • Page 10 Hardware Installation and Reference Guide Product Overview M5000E-01XS Type M5000E-02XS SFP Port 100Base-X 1000Base-X RG-RPS150 RPS Type Power Supply AC input: Rated voltage range: 100 V AC to 240 V AC Maximum voltage range: 90 V AC to 264 V AC Frequency: 50/60 Hz Rated current: 2 A HVDC input:...
  • Page 11 Hardware Installation and Reference Guide Product Overview Figure 1-5 Appearance of the RG-S5750-48GT/4SFP-E Front Panel Figure 1-6 Schematic Diagram of the RG-S5750-48GT/4SFP-E Front Panel Note: 1. Switch status indicator 6. 10/100/1000Base-T adaptive Ethernet port 2. Extension port 1 status indicator indicator 3.
  • Page 12 At present, the redundant power supply interface can be used together with the RPS150 that are manufactured by Ruijie Networks. Unless otherwise stated, other power supply modules cannot be used for power input; otherwise, an abnormality may occur or damage the switch.
  • Page 13 Hardware Installation and Reference Guide Product Overview Indicator Panel Identification Status Meaning Blinking green The switch is being initialized. If the blinking persists, however, it indicates that an abnormality occurs. Solid green The switch is working properly. Solid yellow It indicates a warning on the switch temperature. Check the working environment of the switch immediately.
  • Page 14  1000Base-T : Mini-GBIC-GT The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. BIDI optical module must be used in pairs. For example, one port use FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.
  • Page 15 Hardware Installation and Reference Guide Product Overview power supply. The maximum power supported depends on the configured power supply. Max. Power Without extension modules or PD load 50 W Consumption Without extension modules but with 24-port PD 900 W load With extension modules but without PD load 65 W With extension cards and 24-port PD load...
  • Page 16 Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-10 Schematic Diagram of the RG-S5750-24GT/8SFP-P Front Panel Note: 1. PoE mode indicator 6. Console port 2. Switch status indicator 7. 10/100/1000Base-T adaptive Ethernet port 3. Extension module 1 status indicator 8.
  • Page 17 Hardware Installation and Reference Guide Product Overview Table 1-8 Technical Specifications of RG-M5000E-AC500P Model RG-M5000E-AC500P (AC Input) RG-M5000E-AC500P (HVDC Input) Applicable Models RG-S5750-24GT/8SFP-P RG-S5750-24GT/8SFP-P RG-S5750-48GT/4SFP-P RG-S5750-48GT/4SFP-P Rated Input Voltage 100 V AC to 240 V AC, 50/60 Hz 240 V DC Range Maximum Input...
  • Page 18 Hardware Installation and Reference Guide Product Overview Hot-Plug Power Supply 1+1 redundancy Redundancy Over-Voltage 54 V: -58 V to -66 V Protection 12 V: 13.2 V to 15.6 V Over-Current 54 V: 7.8 A to 10 A Protection 12 V: 11 A to 14 A Over-Heat Support Protection...
  • Page 19 Hardware Installation and Reference Guide Product Overview LED Indicators Indicator Panel Identification Status Meaning PoE indicator Solid green Indicates the switching mode. Solid yellow Indicates the PoE working mode. Status indicator Status The switch is powered down. Blinking green The switch is being initialized. If the blinking persists, however, it indicates that an abnormality occurs.
  • Page 20 Hardware Installation and Reference Guide Product Overview Indicator Panel Identification Status Meaning indicator Solid green The 1000 M link that the port connects to is Up. Blinking green Data at a rate of 1000 M are being transceived at the port. Solid yellow The 100 M link that the port connects to is Up.
  • Page 21 Mini-GBIC-GT The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. BIDI optical module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.
  • Page 22 Hardware Installation and Reference Guide Product Overview ≤3.5mA Input Leakage Current PoE Function All the RJ45 ports support PoE function, and each port supports a maximum of 30 W PoE power supply. The maximum power supported depends on the configured power supply. Without extension cards or PD load 80 W Max.
  • Page 23 Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-14 Front Panel of the RG-S5750-48GT/4SFP-P Note: 1. PoE mode indicator 6. Console port 2. Switch status indicator 7. 10/100/1000Base-T adaptive Ethernet port 3. Extension module 1 status indicator 8. Port status indicator 4.
  • Page 24 Hardware Installation and Reference Guide Product Overview Dual power supplies mean that the switch can use either or both of the two power supplies concurrently. When the two power supply modules are used concurrently, the switch is powered by the equalizing current status. When the dual power supplies are used, the power supply redundancy does not work if the system consumption is larger than the maximum consumption provided by single power supply.
  • Page 25 Hardware Installation and Reference Guide Product Overview Indicator Panel Identification Status Meaning Solid green The switch is working properly. Solid yellow It indicates a yellow warning on the switch temperature. Check in time the working environment of the switch. Solid red Indicates a fault on the switch.
  • Page 26 Mini-GBIC-GT The supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. BIDI optical module must be used in pairs. For example, FE-SFP-LX20-SM1310-BIDI is used at one end, then FE-SFP-LX20-SM1550-BIDI must be applied to the other end.
  • Page 27 Hardware Installation and Reference Guide Product Overview Working temperature: 0º C to 50º C Temperature Storage temperature: -40 º C to 70º C Humidity Working humidity: 10% to 90% RH Storage humidity: 5% to 90% RH Support fan speed adjustment and the fault warning function. Temperature Support Warning...
  • Page 28 Hardware Installation and Reference Guide Product Overview Note: 1. Switch status indicator 6. USB port 2. Power supply 1 Status indicator 7. Console port 3. Power supply 2 Status indicator 8. 100/1000Base-X SFP port 4. Extension module 1 status indicator 9.
  • Page 29 Hardware Installation and Reference Guide Product Overview Protection Over-Current 6 A to12 A Protection Over-Heat Not support Protection Flow Equalization Not support Mixed Power Not support Supply Power Cable 10 A power cable Dimensions 203.3mm x 81 mm x 40 mm (excluding connecting finger and handle) 236.9 mm x 81 mm x 40 mm (including connecting finger and handle) Weight 0.6 kg...
  • Page 30 Hardware Installation and Reference Guide Product Overview The RG-M6010-DC150-F is a dedicated device for the equipment room. Because of dangerous voltage, only specialized persons and maintenance personnel are allowed to operate the module. Heat Dissipation The RG-S5750-24SFP/8GT-E is designed with left and right fans, and heat dissipation of power supply and extension modules, thereby ensuring the device's functioning in the specified environment.
  • Page 31 Ruijie Networks for different transmission distances. This module supports one-meter or three-meter SFP+ passive copper cable on the RG-S5750-E series switches. It can be used together with XG-SFP-CU1M and XG-SFP-CU3M copper cable transceiver modules of Ruijie Networks.
  • Page 32 Hardware Installation and Reference Guide Product Overview transmission distances. This module supports one-meter or three-meter SFP+ passive copper cable on the RG-S5750-E series switches. It can be used together with XG-SFP-CU1M and XG-SFP-CU3M copper cable transceiver modules of Ruijie Networks. Module...

  • Page 33: Preparation Before Installation

    Preparation before Installation 2 Preparation before Installation Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-S5750-E series. The following safety suggestions may not cover all possible dangers. 2.1.1 System Installation ...

  • Page 34: Installation Site Requirements

    Do not approach or stare into any optical port, as this may cause permanent damage to your eyes. 2.2 Installation Site Requirements The RG-S5750-E series must be used indoors. To ensure its functioning and prolong its service life, the installation site must meet the following requirements.

  • Page 35: Cleanness Requirements

    Hardware Installation and Reference Guide Preparation before Installation 2.2.3 Cleanness Requirements Dust poses the top threat to the running of the equipment. The indoor dust falling on the equipment may be adhered by the static electricity, causing bad contact of the metallic joint. Such electrostatic adherence may occur more easily when the relative humidity is low, not only affecting the use life of the equipment, but also causing communication faults.

  • Page 36: System Grounding Requirements

    Preparation before Installation 2.2.5 System Grounding Requirements A good grounding system is the basis for the stable and reliable operation of the RG-S5750-E series, preventing lightning stroke and resisting interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding operations properly as required.

  • Page 37: Lightning Resistance

    Hardware Installation and Reference Guide Preparation before Installation 2.2.6 Lightning Resistance When the AC power cable is imported outdoors and directly connected to the power port of the switch, lightning preventing wires should be adopted to prevent the switch from being hit by lightning shocks. The lightning preventing wires can be fixed on the cabinet, work station, or the equipment room’s wall through line buckles and screws.

  • Page 38: Precautions For Fiber Connections

    Table 2-4 List of Installation Tools Cross screwdriver, straight screwdriver, related electric cables and optical cables, bolts, Common Tools diagonal pliers, straps Special Tools Anti-static tools Multimeter Meters The RG-S5750-E series are not provided with a tool kit. Please prepare tools on your own.

  • Page 39: Product Installation

    Hardware Installation and Reference Guide Product Installation 3 Product Installation Please ensure that you have carefully read Chapter 2 and make sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Procedure 3.2 Pre-installation Tasks Ensure the following points before installation: ...

  • Page 40: Mounting The Switch In A Standard 19-Inch Rack

    3.3.1 Mounting the Switch in a Standard 19-inch Rack The RG-S5750-E series switches are designed with the EIA standard dimensions and can be installed in 19-inch rack. The installation is as follows: Step 1: Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-1.

  • Page 41: Mounting The Switch On The Wall

    Figure 3-3 3.3.2 Mounting the Switch on the Wall The RG-S5750-E series switches can be mounted on a wall. The installation as follows: Step 1: Attach the mounting brackets to the switch with the supplied screws, as shown in Figure 3-4.

  • Page 42: Mounting The Switch On A Table

    Hardware Installation and Reference Guide Product Installation Step 2: Use the expansion screws to securely attach the mounting brackets on the wall, as shown in Figure 3-5. Figure 3-5 Attaching the Switch on the Wall 3.3.3 Mounting the Switch on a Table Step 1: Attach the four rubber feet to the recessed areas on the bottom of the switch, as shown in Figure 3-6.
  • Page 43 Hardware Installation and Reference Guide Product Installation Step 2: Place the switch on the table, as shown in Figure 3-7. Figure 3-7 Mounting the Switch on the Table The device must be installed and operated in the place that can restrict its movement. 3.3.4 Installing the RG-M5000E-DC500P Module to the Switch When the RG-M5000E-DC500P power module is used by the RG-S5750-24GT/8SFP-P or RG-S5750-48GT/4SFP-P switch, connect the DC power cord according to the marks on the module panel, as shown in Figure 3-8.
  • Page 44 Hardware Installation and Reference Guide Product Installation Step 1: Insert the RG-M5000E-DC500P module into the power slot. Step2: Remove the insulation cover from the terminal block on the front panel of the module, and then loosen the three screws for power cord connection. Step3: Connect the power cord to the grounding points on the cabinet.
  • Page 45 Hardware Installation and Reference Guide Product Installation Figure 3-10 Connecting the RG-M6010-DC150-F Module Step 1: Insert the screw terminal into the power module, and then tighten the screws of the terminal, as shown in Figure 3-9. Step 2: Insert the RG-M6010-DC150-F module into the power slot, as shown in Figure 3-9. Step 3: Connect the power cord to the grounding points on the cabinet, as shown in Figure 3-10.

  • Page 46: Checking After Installation

    Hardware Installation and Reference Guide Product Installation 3.4 Checking after Installation Before checking the installation, switch off the power supply to avoid any personal injury or damage to the component due to connection errors.  Check that the ground line is connected. ...

  • Page 47: System Commissioning

    Hardware Installation and Reference Guide System Commissioning 4 System Commissioning 4.1 Establishing the Configuration Environment Establishing the Configuration Environment Use the console cable to connect the PC to the console port of the switch. Figure 4-1 Configuration Environment Connecting the Console Cable Step 1: Connect one end of the DB-9 jack of the console cable to the serial port of the PC.
  • Page 48 Hardware Installation and Reference Guide System Commissioning Enter the name of the new connection and click OK to display the following page. Choose the series port used currently in the column [use when connecting]. Figure 4-3 After choosing the series port, click OK to display the series port parameter setting page, set the baud rate at 9600, data bit at 8, parity check as none, stop bit at 1 and flow control as none.

  • Page 49: Power-On Startup

    Hardware Installation and Reference Guide System Commissioning After setting the parameters, click OK to enter the super terminal page. 4.2 Power-on Startup Checking before Power-on  The switch is fully grounded.  The power cable is correctly connected.  The power supply voltage complies with the requirement of the switch. ...

  • Page 50: General Troubleshooting Procedure

    5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the management interface Please contact Ruijie Networks Customer login password Service Department for technical support. The status indicator is not on after the The power supply module does not Check whether the power socket at the switch is started.
  • Page 51 The RPS power indicator is not on. The RPS power module in use is Replace the RPR power supply module not of the specified type. with one specified by Ruijie Networks. The RPS power supply module is Replace the RPS power supply. faulty.
  • Page 52 Hardware Installation and Reference Guide Troubleshooting Symptom Possible Causes Solution The RPS power supply cable is in cable is in loose contact. loose contact.

  • Page 53: Appendix A: Connectors And Connection Media

    Hardware Installation and Reference Guide Appendix A: Connectors and Connection Media 6 Appendix A: Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m.
  • Page 54 Hardware Installation and Reference Guide Appendix A: Connectors and Connection Media Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Schematic Diagram for optical fiber connection...

  • Page 55: Appendix B Mini-Gbic Modules

    Appendix B Mini-GBIC Modules Appendix B Mini-GBIC Modules Ruijie Networks provides appropriate 1000M SFP modules (Mini-GBIC) modules according to the types of interfaces of the switch modules. You can select the SFP module to suit your specific needs. The following models and technical specifications of some 1000 M SFP modules are listed for your reference.
  • Page 56 Hardware Installation and Reference Guide Appendix B Mini-GBIC Modules ZX80-SM1 MINI-GBIC- ZX100-SM 100km 1550 62.5/ 275m GE-eSFP- -9.5 SX-MM850 50/12 550m GE-eSFP-L 1310 9/125 10km -9.5 X-SM1310 GE-SFP-L 1310TX/155 X20-SM13 9/125 20km 10-BIDI GE-SFP-L 1550TX/131 X20-SM15 9/125 20km 50-BIDI GE-SFP-L 1310TX/155 H40-SM13 9/125...

  • Page 57: Pairs Of Sfp Bidi Modules

    Hardware Installation and Reference Guide Appendix B Mini-GBIC Modules Do not stare into the light source, as this may cause permanent damage to your eyes. Make sure that the optical module is covered with the dust-proof cap when the module is not connected with the fiber cables.

  • Page 58: Appendix C 10 G Sfp+ Modules

    Appendix C 10 G SFP+ Modules Ruijie Networks provides appropriate 10G SFP+ modules according to the types of interfaces of the switch modules. You can select the SFP+ module to suit your specific needs. The following models and technical specifications of some 10G SFP+ modules are listed for your reference.
  • Page 59 Hardware Installation and Reference Guide Appendix C 10 G SFP+ Modules Please keep the beveling radius of the SFP+ copper cable not less than eight times of the cable diameter during cabling.

  • Page 60: Appendix D Site Selection

    Hardware Installation and Reference Guide Appendix D Site Selection Appendix D Site Selection  The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
