Hardware Installation and Reference Guide
The
RG-S5760C-24SFP/8GT8XS-X
100Mbps), 8 10/100/1000Base-T combo ports, 8 10GE SFP+ ports, 1 MGMT port, 1 USB port, and 1 Console port on
the front panel, 2 power supply module slots and 1 expansion slot on the back panel.

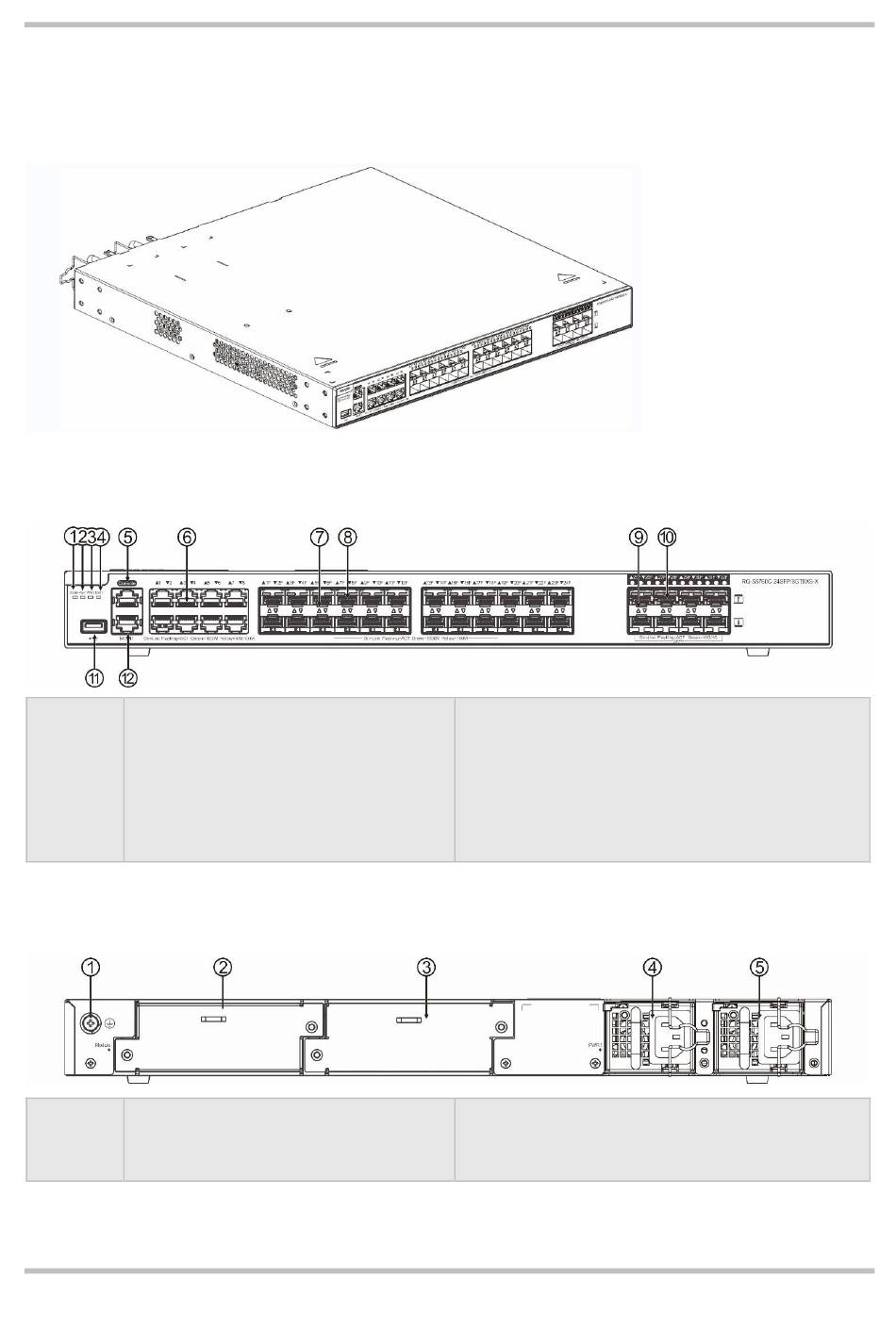

Figure 1-9 Appearance of RG-S5760C-24SFP/8GT8XS-X
Front Panel
Figure 1-10 Front Panel of RG-S5760C-24SFP/8GT8XS-X
Note:
1. System Status LED
2. Power Supply Status LED (PWR1)
3. Power Supply Status LED (PWR2)
4. MGMT Port Status LED
5. Console Port
6. 10/100/1000Base-T Ethernet Port
Rear Panel
Figure 1-11 Rear Panel of S5760C-24SFP/8GT8XS-X
Note:
1.
Grounding Lug
2.
Filler Panel (Expansion module)
3. Filler Panel (Non-expansion module)
Power Supply
Ethernet switch provides 24 GE SFP ports (port 17-24 do not support the rate of
14
7. GE SFP Port Status LED
8. GE SFP Port
9. 10GE SFP+ Port Status LED
10.10GE SFP+ Port
11. USB Port
12. MGMT Port
4. Power Supply Module Slot 1
5. Power Supply Module Slot 1
Overview
