Ruijie RG-S5000-E Series Switches
Hardware Installation and Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RG-S5000-24GT4MS-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie RG-S5000-24GT4MS-E

Summary of Contents for Ruijie RG-S5000-24GT4MS-E

  • Page 1 Ruijie RG-S5000-E Series Switches Hardware Installation and Reference Guide...

  • Page 2: Copyright Statement

    This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

  • Page 3: Obtaining Technical Assistance

    It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

    Product Overview 1 Product Overview RG-S5000-E series switches are the new-generation GE switches released by Ruijie Networks for campus access. With a brand-new hardware architecture and Ruijie RGOS11.X modular operating system, the RG-S5000-E series switches provide more resource entries, faster hardware processing performance, and better user experience.

  • Page 5: Product Appearance

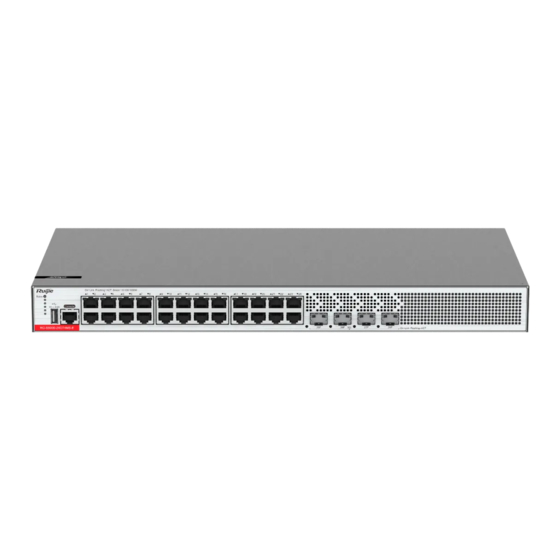

    You are advised to take proper measures. Product Appearance On the front panel, the RG-S5000-24GT4MS-E Ethernet switch provides one RJ45 console port, one USB port, 24 RJ45 10/100/1000Base-T adaptive Ethernet ports, and four SFP ports. Figure 1-1 Appearance of RG-S5000-24GT4MS-E Switch...

  • Page 6: Front Panel

    Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-2 Front Panel of RG-S5000-24GT4MS-E Switch Description: 1. System status LED 4. 10/100/1000Base-T adaptive Ethernet port 2. USB port 5. SFP port status LED 3. Console port 6. SFP port...

  • Page 7: Power Supply

    Power cord requirements: 10 A power cord Heat Dissipation The RG-S5000-24GT4MS-E switch adopts natural heat dissipation without fans. To ensure proper heat dissipation, maintain a minimum clearance of 10 cm (3.94 in.) on both sides and around the back panel of the chassis for air circulation.

  • Page 8: Technical Specifications

    64 MB Flash Memory SDRAM DDR4 512 MB Supported Modules See Appendix B The module types may be updated without prior notification. Please contact Ruijie Networks for details. SFP Port 2500Base-X Capable 1000Base-X Capable 100Base-FX Capable AC input: Power Supply...
  • Page 9 Hardware Installation and Reference Guide Product Overview Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH Operating Height 0 to 5000 m (3.11 miles) above the sea level Support fan speed control and fan fault alarm Temperature Alarming Support EMC Certification GB/T9254.1...
  • Page 10 Hardware Installation and Reference Guide Product Overview Figure 1-7 Back Panel of RG-S5000-48GT4MS-E Switch Description: 1. Grounding stud 3. Power plug 2. Power cord retention clip hole Power Supply The RG-S5000-48GT4MS-E switch adopts an AC power supply.  AC input: Rated voltage range: 100 V AC to 240 V AC;...
  • Page 11 Flash Memory 64 MB DDR4 512 MB SDRAM Supported Modules See Appendix B The module types may be updated without prior notification. Please contact Ruijie Networks for details. SFP Port 2500Base-X Capable 1000Base-X Capable 100Base-FX Capable Power Supply AC input:...
  • Page 12 Hardware Installation and Reference Guide Product Overview ≤ 3.5 mA Ground Leakage Current EEE Function Support PoE Function Not Support ≤ 16 W Overall Power Consumption Operating Temperature 0° C to 45° C (32° F to 113° F) at an altitude of 0-1800 m (1.12 miles) At an altitude of 1800 m to 5000 m (1.12 miles to 3.11 miles): The maximum temperature decreases by 1°...
  • Page 13 Hardware Installation and Reference Guide Product Overview Description: 1. System status LED 4. 10/100/1000Base-T adaptive Ethernet port 2. USB port 5. SFP port status LED 3. Console port 6. SFP port Back Panel Figure 1-15 Back Panel of RG-S5000-10GT2MS-E Switch Description: 1.
  • Page 14 Hardware Installation and Reference Guide Product Overview Figure 1-16 Airflow Direction of RG-S5000-10GT2MS-E Switch The switch should be installed at least 1 U (44.45 mm/1.75 in.) away from the neighbor device for normal heat dissipation. Panel Identification Status Description Blinking The system is being initialized.
  • Page 15 Flash Memory 64 MB SDRAM DDR4 512 MB Supported Modules See Appendix B The module types may be updated without prior notification. Please contact Ruijie Networks for details. SFP Port 2500Base-X Capable 1000Base-X Capable 100Base-FX Capable Power Supply AC input:...
  • Page 16 Hardware Installation and Reference Guide Product Overview Safety Regulation Compliance GB4943 Dimensions (W × D × H) 297 mm × 170 mm × 43.6 mm (11.69 in. × 6.69 in. × 1.72 in.), 1RU Weight About 2.5 KG (5.51 lbs.) The RG-S5000-10GT2MS-P-E switch is a Class A product.
  • Page 17 Hardware Installation and Reference Guide Product Overview You can press the port LED mode switching button (PoE button) to switch the port status indicator function (port PoE power supply indicator and port rate indicator). Hold down the button for more than 2 seconds to ensure successful switching.
  • Page 18 Hardware Installation and Reference Guide Product Overview Panel Identification Status Description Blinking The system is being initialized. green Solid green The system is operating normally. system over-temperature alarm System status Solid yellow Status generated. 1. The temperature severely exceeds the threshold, and the system will be reset and Solid red restart.
  • Page 19 Flash Memory 64 MB SDRAM DDR4 512 MB Supported Modules See Appendix B The module types may be updated without prior notification. Please contact Ruijie Networks for details. SFP Port 2500Base-X Capable 1000Base-X Capable 100Base-FX Capable Power Supply AC input:...
  • Page 20 Hardware Installation and Reference Guide Product Overview Storage Temperature -40º C to 70º C (-40° F to 158° F) Operating Humidity 10% to 90% RH Storage Humidity 5% to 90% RH Operating Height 0 to 5000 m (3.11 miles) above the sea level Support fan speed control and fan fault alarm Temperature Alarming Support...
  • Page 21 Hardware Installation and Reference Guide Product Overview Description: 1. System status LED 5. Console port 2. PoE status LED 6. 10/100/1000Base-T adaptive Ethernet port 3. PoE button 7. SFP port status LED 4. USB port 8. SFP port You can press the port LED mode switching button (PoE button) to switch the port status indicator function (port PoE power supply indicator and port rate indicator).
  • Page 22 Hardware Installation and Reference Guide Product Overview Panel Identification Status Description Blinking The system is being initialized. green Solid green The system is operating normally. System status system over-temperature alarm Status Solid yellow generated. 1. The temperature severely exceeds the Solid red threshold, and the system restarts.

  • Page 23: Preparing For Installation

    Hardware Installation and Reference Guide Preparing for Installation 2 Preparing for Installation 2.1 Safety Precautions To avoid personal injury and device damage, carefully read the safety precautions before you install the RG-S5000-E series switches. The following safety precautions may not cover all possible dangers. 2.1.1 Installation Safety ...

  • Page 24: Electrostatic Discharge Safety

    Hardware Installation and Reference Guide Preparing for Installation the leakage current of the system totals 56 mA. A leakage protector with 30 mA rated action current supports less than five power supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply = 30/2/3.5 ≈...

  • Page 25: Installation Environment Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2 Installation Environment Requirements To ensure the normal operation and prolonged service life of the device, the installation site must meet the following requirements. You are not advised to install the RG-S5000-E series switches in a ELV box. 2.2.1 Ventilation and Cooling Requirements Maintain a minimum clearance of 10 cm (3.94 in.) on both sides of the chassis and around the back panel of the switch for normal air ventilation and heat dissipation.

  • Page 26: Anti-Interference Requirements

    Hardware Installation and Reference Guide Preparing for Installation protected against the intrusion of harmful gases, such as sulfur dioxide, hydrogen sulfide, nitrogen dioxide, and chlorine gas. The following table lists limit values for harmful gases. Average (mg/m Maximum (mg/m Sulfur dioxide (SO Hydrogen sulfide (H Nitrogen dioxide (NO Chlorine gas (CI...

  • Page 27: Lightning Grounding

    Hardware Installation and Reference Guide Preparing for Installation The cross-sectional area of the protective ground cable should be at least 0.75 mm (18 AWG). Install the device by using 3-core power cords, with a minimum cross-sectional area of 0.75 mm or 18AWG per pin.

  • Page 28: Emi Requirements

    Hardware Installation and Reference Guide Preparing for Installation 2.2.6 EMI Requirements All interference sources, either from outside or inside of the device or application system, affect the device by capacitive coupling, inductive coupling, or electromagnetic waves. Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission path.

  • Page 29: Installing The Switch

    Hardware Installation and Reference Guide Installing the Switch 3 Installing the Switch Before reading Chapter 3, ensure that you have read Chapter 2 carefully. Ensure that requirements in Chapter 2 are all met. 3.1 Installation Procedure Connect the switch to a grounding system Install the switch in place correctly Connect the power supply Connect the cables...

  • Page 30: Mounting The Switch To A Rack

    Hardware Installation and Reference Guide Installing the Switch  Connect the power cords of different colors to the corresponding binding posts.  Ensure that the connector of the power cord and the power port of the device are in good contact. After the power cord is securely inserted into the device, fasten the power cord with power cord retention clips.

  • Page 31: Mounting The Switch On A Wall

    Hardware Installation and Reference Guide Installing the Switch Figure 3-3 Securing the Switch to the Rack 3.3.2 Mounting the Switch on a Wall You can also mount the RG-S5000-E switch on a wall with the provided mounting brackets. Take out the screws (delivered with the mounting bracket) from the packaging materials. Rotate the mounting brackets by 90 degrees, and secure the mounting brackets to the switch by using the screws.

  • Page 32: Mounting The Switch On A Workbench

    Hardware Installation and Reference Guide Installing the Switch Use expansion screws to secure the switch to a wall. Figure 3-5 Securing the Switch to the Wall If wall mount is adopted, the device can only be mounted on a concrete or non-flammable surface. And the panel port needs to be installed downward.
  • Page 33 Hardware Installation and Reference Guide Installing the Switch Place the switch on a workbench and ensure adequate airflow around the switch. Figure 3-7 Mounting the Switch on the Workbench The location where the device is mounted and operated must be subject to movement restrictions. 3.4 Connecting a Grounding Cable Connect the PGND to the grounding lug of the cabinet and then connect the grounding lug to the grounding bar of the equipment room.

  • Page 34: Bundling The Cables

    Hardware Installation and Reference Guide Installing the Switch The maintenance personnel should check whether the AC socket is reliably connected to the protection ground of the building. If not, the maintenance personnel should use a protection ground wire to connect the protection ground terminal of the AC socket to the protection ground of the building.

  • Page 35: Checking After Installation

    Hardware Installation and Reference Guide Installing the Switch 3.7 Checking after Installation Before checking the installation, turn off the power supply to avoid any personal injury or damage to the components due to connection errors.  Verify that the ground cable is connected. ...

  • Page 36: Setting Up The Configuration Environment

    Hardware Installation and Reference Guide Verifying Operating Status 4 Verifying Operating Status 4.1 Setting up the Configuration Environment Setting up the Environment Connect a PC to the console port of the switch by using an Ethernet cable. Figure 4-1 Setting up the Environment Connecting the Cable Plug the DB-9 connector of the cable into the serial port of the PC.
  • Page 37 Hardware Installation and Reference Guide Verifying Operating Status Enter the name of the new connection and click OK, and a window appears as shown in Figure 4-3. Choose the serial port you want to use. Figure 4-3 After choosing the serial port, click OK to display the Serial Port Parameter Setting window as shown in Figure 4-4. Set the baud rate to 9600, data bit to 8, parity check to none, stop bit to 1 and flow control to none.

  • Page 38: Powering On The Switch

    Hardware Installation and Reference Guide Verifying Operating Status After setting the parameters, click OK. 4.2 Powering on the Switch Checklist before Power-on  Check that the switch is fully grounded.  Check that the power cord is properly connected.  Check that the power supply voltage meets the requirement of the switch.

  • Page 39: General Troubleshooting Procedure

    Symptom Possible Causes Solution   You forget the login You forget the password after Please contact Ruijie Networks Customer password. manually configuring it. Service Department for technical support.  Check whether the power socket in the  The status LED is off No power is supplied to the equipment room is normal.
  • Page 40 Hardware Installation and Reference Guide Troubleshooting switch, clean the dust on the cabinet and enhance cooling.   The serial port connected to the Change the serial port enabled on the serial port switch different from that configuration software to the serial port console has no output enabled configuration...

  • Page 41: Appendix A - Connectors And Connection Media

    Appendix A — Connectors and Connection Media Hardware Installation and Reference Guide Appendix A — Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Port 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000M auto-negotiation port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5 or Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 m.

  • Page 42: Optical Fiber Connection

    Appendix A — Connectors and Connection Media Hardware Installation and Reference Guide Optical Fiber Connection Please choose SMF or MMF optical fibers according to the optical module types. Figure A-4 shows the connection. Figure A-4 Optical Fiber Connection...

  • Page 43: Appendix B - Mini-Gbic Modules

    Appendix B — Mini-GBIC Modules Ruijie provide supporting SFP modules (Mini-GBIC modules) based on the port types of switch modules. You can select a module to suit your specific needs. Besides, the Mini-GBIC-GT module is also supported. This document provides models and technical parameters of some 1000 M SFP modules for reference.
  • Page 44 Appendix B — Mini-GBIC Modules Hardware Installation and Reference Guide 50/125 550 m GE-eSFP-EX-SM1310 9/125 10 km GE-SFP-EX-SM1310 9/125 10 km MINI-GBIC-EH40-SM1310 9/125 40 km GE-SFP-SX-SM1310-BIDI 50/125 500 m GE-SFP-SX-SM1550-BIDI 50/125 500 m GE-SFP-EX20-SM1310-BIDI 9/125 20 km GE-SFP-EX20-SM1550-BIDI 9/125 20 km GE-SFP-EH40-SM1310-BIDI 9/125 40 km...
  • Page 45 Appendix B — Mini-GBIC Modules Hardware Installation and Reference Guide 2.5G-SFP-EX03-SM1550-BIDI-I BIDI optical modules must be used in pairs. If GE-SFP-EX20-SM1310-BIDI is used at one end, then GE-SFP-EX20-SM1550-BIDI must be used at the other end.

  • Page 46: Appendix C - Lightning Protection

    Appendix C — Lightning Protection Hardware Installation and Reference Guide Appendix C — Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 47 Appendix C — Lightning Protection Hardware Installation and Reference Guide During the switch usage, the Ethernet port arrester shall be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch. Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the...
  • Page 48 Appendix C — Lightning Protection Hardware Installation and Reference Guide  Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT” end.  Poor arrester grounding. The length of the grounding line should be as short as possible to ensure that it is in good contact with the switch grounding terminal.

  • Page 49: Appendix D - Cabling Recommendations In Installation

    Appendix D — Cabling Recommendations in Installation Hardware Installation and Reference Guide Appendix D — Cabling Recommendations in Installation When RG-S5000-E series switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 50 Appendix D — Cabling Recommendations in Installation Hardware Installation and Reference Guide  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a space equal to or greater than 30 mm.
  • Page 51 Appendix D — Cabling Recommendations in Installation Hardware Installation and Reference Guide Figure D-3 Bundling Up Cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cabling slot.
  • Page 52 Appendix D — Cabling Recommendations in Installation Hardware Installation and Reference Guide  The hard power cable should be fastened by the terminal connection area to prevent stress.  Do not use self-tapping screws to fasten terminals.  Power cables of the same type and in the same cabling direction should be bundled up into cable bunches, with cables in cable bunches clean and straight.

  • Page 53: Appendix E - Site Selection

    Appendix E — Site Selection Hardware Installation and Reference Guide Appendix E — Site Selection  The machine room should be at least 5 km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7 km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2 km away from the light pollution source such as the food manufacturer and leather plant.
