TICs and Audio Riser Modules,
The Local Mode TIC
A local mode TIC acts as a controller for the transponder cabinet if the TIC loses communication
with the Master Controller. When operating in local mode, an alarm on any fire alarm input circuit
will cause all alarm notification appliance circuits to activate. Relays and other auxiliary control
outputs will not activate. The local mode controller is limited to alarm functions.
Illustrations
Temperature
Continued
4100-0620
BASIC TIC
2
4100-0621 ANALOG
AUDIO RISER

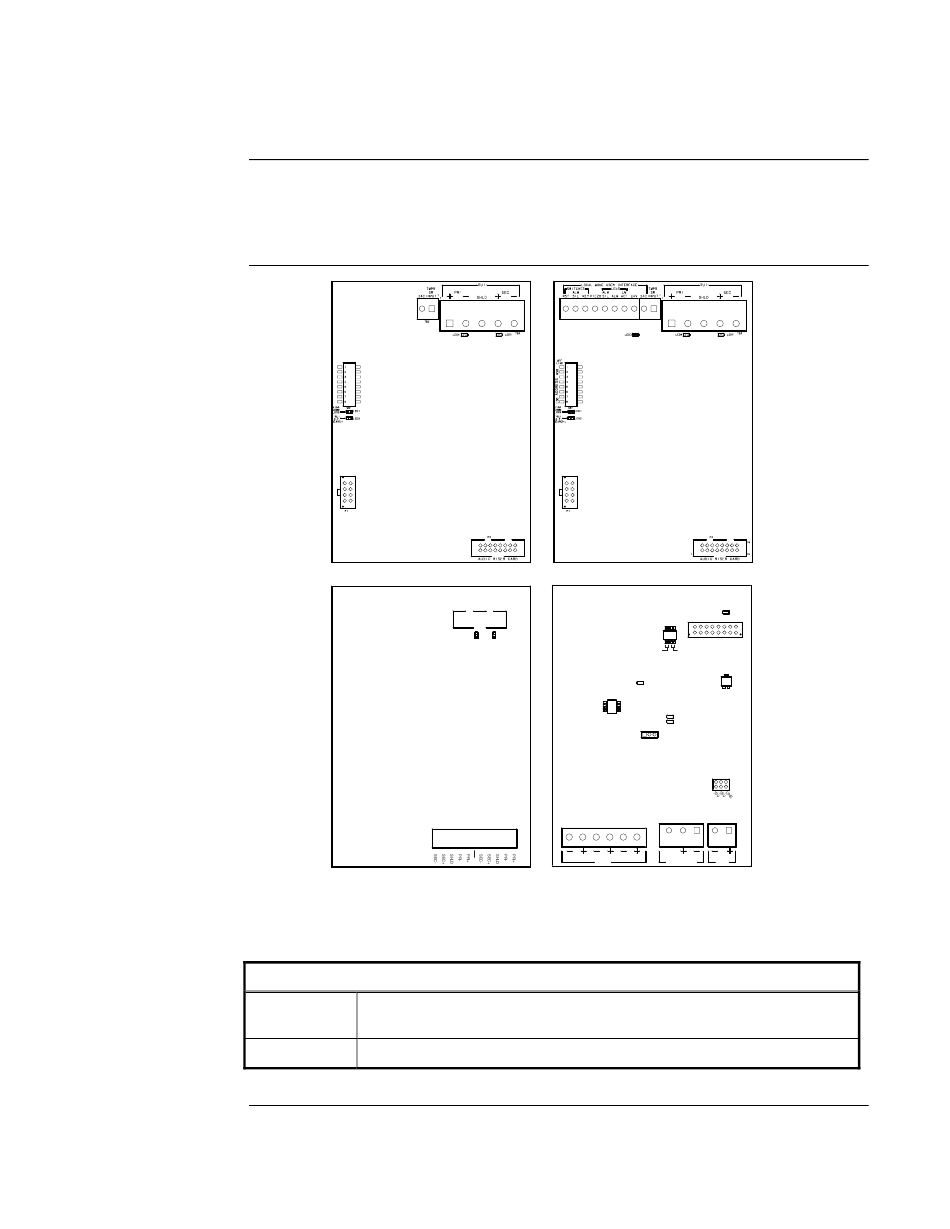

Figure 1. TICs and Audio Riser Modules
Table 2. Environmental Specifications
Environmental Specifications (all PIDs)
Operating
32° to 120° F (0° to 49° C)
Humidity
Up to 93% relative humidity at 90° F (32° C)
firealarmresources.com
4100-0625
LOCAL MODE TIC
16
15
LED1
LED2
CH2
CH1/DAR
SW2
LSB
1
2
MSB
3
4
4100-0622 DIGITAL
AUDIO RISER
4100-1314 MCC
DIGITAL AUDIO RISER
TB3
TB1
1
1
CH2
CH1/DAR
SEC 1
SEC 2
PRI 1
DAR
4
DAR GROUND FAULT
SEARCH ACTIVE
LED1
SW1
DIGITAL
ON-ENABLE
RISER
NAA
PDI RECEIVE
R4
ENABLE
NAA
LED2
VOLUME
PRIMARY RECEIVE
LED3
LED4
SECONDARY RECEIVE
1
P2
2
NAA OUT
1
TB1
TB2
SHLD
CHANNEL OUT
NAA IN
Continued on next page
