Simplex MINIPLEX 4100-9600 Manual

UL, ULC Listed; FM, CSFM,
and MEA (NYC) Approved*

Features

4100U Series MINIPLEX transponders allow
remotely located initiating and notification
functions:
Transponder operation is available as standard or with
local mode operation
Communications with the host fire alarm control panel
use the Remote Unit Interface (RUI) format

Initiating functions include:

Conventional initiating device circuit (IDC) support
Addressable device support including TrueAlarm
analog sensor compatibility**

Notification functions include:

Conventional DC notification appliance circuits
Emergency voice/alarm communications
®
TrueAlert addressable strobe and horn notification

Local mode operation provides:

Default local initiating and notification operation in the
event of a communications loss with the host control panel
Enabling of an optional Local Mode Controller with a
local alarm sounder, LED status indicators, and
keyswitch enabled control switches
Support for IDNet™ addressable devices, conventional
and TrueAlert addressable notification appliances, and
default output tones from local amplifiers**
Optional modules include:
Digital or Analog audio riser modules for connection to
system audio signals
Digital or analog input audio amplifiers with integral
on-board NACs
Power supplies with or without battery chargers
City Connect modules and RS-232 ports for printers or
maintenance terminals
Alarm relays, auxiliary relays, additional IDC modules,
and NAC expansion modules
Cabinets are equipped with solid doors (beige or
red) and in two or three bay sizes
Listed to:
UL Std. 864, Fire Detection and Control (UOJZ), and
Smoke Control Service (UUKL)
UL Std. 2017, Process Management Equipment (QVAX)
UL Std. 1076, Proprietary Alarm Units-Burglar (APOU)
UL Std. 1730, Smoke Detector Monitor (UULH)
ULC Std. S527-99
* See pages 4 and 5 for product that is listed as UL or ULC. This product has been approved by
the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health
and Safety Code. See CSFM Listing 7165-0026:251 (non-high rise) and 7170-0026:250 (high
rise) for allowable values and/or conditions concerning material presented in this document. It
is subject to re-examination, revision, and possible cancellation. Accepted for use – City of
New York Department of Buildings – MEA35-93E. Additional listings may be applicable;
contact your local Simplex product supplier for the latest status. Listings and approvals under
Simplex Time Recorder Co. are the property of Tyco Safety Products Westminster.
Addressable Fire Detection and Control
Addressable devices
FIRE ALARM
PULL DOWN
Audio NAC
®

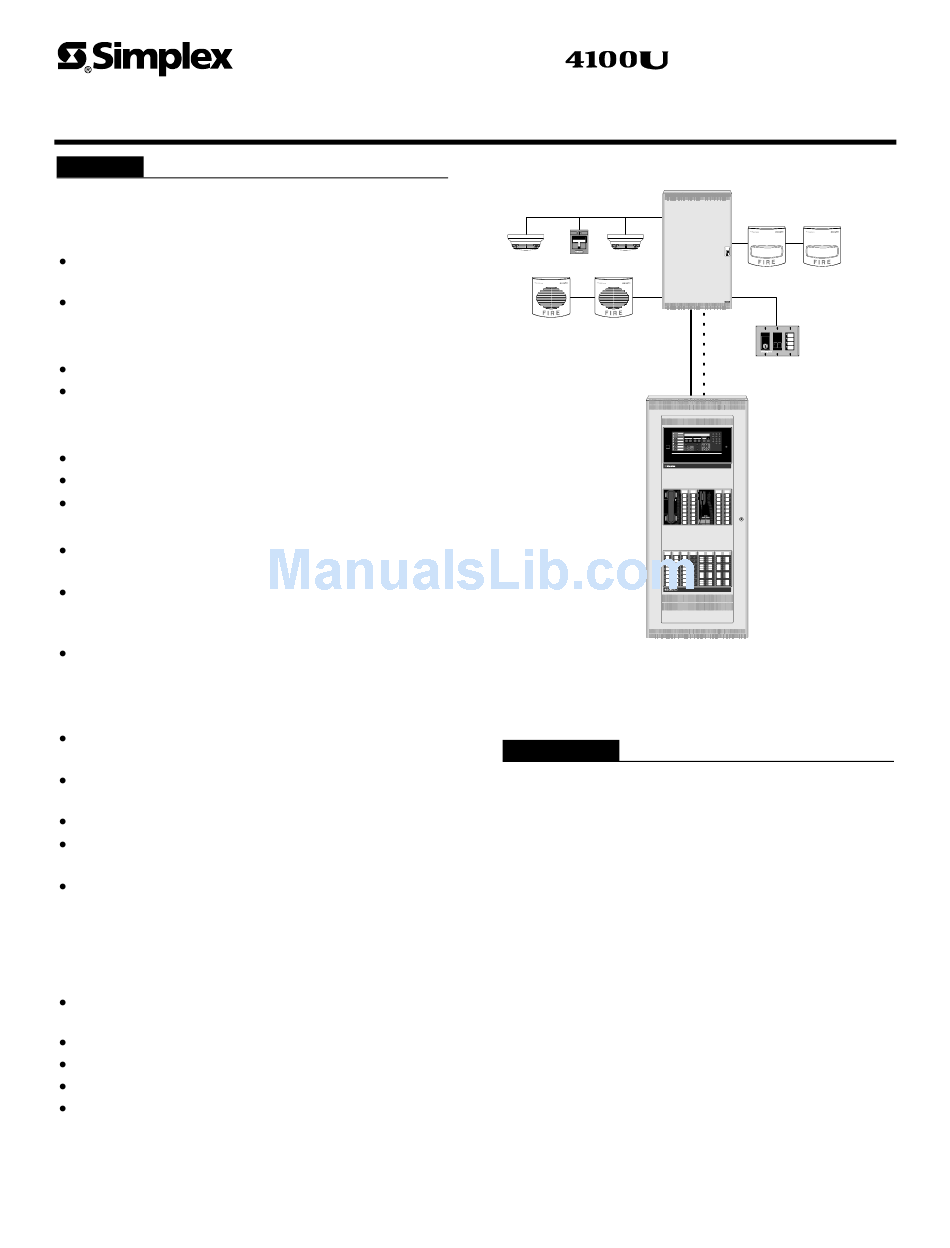

Typical 4100U MINIPLEX System One-Line Drawing
Introduction
4100U MINIPLEX transponders connect to a host
4100U Fire Alarm Control Panel using Simplex
unit interface (RUI) communications. At the transponder,
RUI communications are received by the transponder
interface module and translated into the same internal
communications format that is used in the host control
panel.
Remotely located modules. With RUI
communications, the transponder can remotely provide
the same initiating and notification functions that occur at
the host control panel without requiring multiple long
distance wiring runs. Connections to the host panel are
low current communications and audio wiring with
distances up to 2500 ft (762 m).
Software Revisions. Some of the features detailed and
products listed in this document require 4100U System
Software Revision 11.08 or higher. For pre-11.08 system
expansion options, hardware updates may be required.
Contact your local Simplex
** Simplex fire alarm technology is protected by the following U.S. Patent Numbers:
TrueAlarm analog smoke detection: 5,155,468; 5,173,683 and 5,543,777. IDNet and
MAPNET II addressable communications; 4,796,025. TrueAlert addressable notification;
6,313,744 and 6,426,697. SmartSync horn/strobe control; 6,281,789. Flex-35 and Flex-50
amplifier operation; 6,452,491.
Fire Control Panels
®
MINIPLEX Transponders
MINIPLEX transponder
Strobe NAC
DISCO N NEC T A .C. P O WER AND
C BATTER Y BEFO R E
A S E R VICING
U
T
I
O
N
Fire Alarm Local Mode Controller
Local
Mode
CONTROL Control
ENABLE
Alarm
Silence Reset
AB C D E F G H I
SYSTEM IS NORMAL ZO N E 1 SI G 2 3 A UX
08:23:43 am MON 11-DEC-00 J K L FB M N O IO I D N e t P Q R
ALARMS SYSTEM WARNING S AC Pow er 4 5 6
F ire Alarm Priority 2 Alarm Superv i s ory Tro ub le A larm Silenced S T U V W X Y Z /
7 P A 8 L 9
F ire Alarm Prio r ity 2 Supv Trouble Alar m S y stem 'SP ' ( ) N E T ADDR , 0 :
Ack Ack Ack Ack Silence Reset 0 DEL
Event More Enter C/ Exi t
Time In fo Previous
Menu
Enable On Next
Ar m
Disable O ff Disarm Auto Test Lamp
Emergency Operating Instructions
Alarm or Wa rning Condit ion How to Silence Building Signals
System indicator f l ashing. Tone O n. Press Al a rm Silence.
How t o Acknowledge / Vie w Events How to Reset System
Repe at operation until all events are acknowledged. Press ACK l ocated under flashing indicator. Press Ack to si l e nce tone devi c e. Press System Reset.
Local tone w i l l sil ence.
O n On
O ff Off
Auto Auto
O n On
O ff Off
Auto Auto
O n On
O ff Off
Auto Auto
O n On
O ff Off
Auto Auto
Fire Control

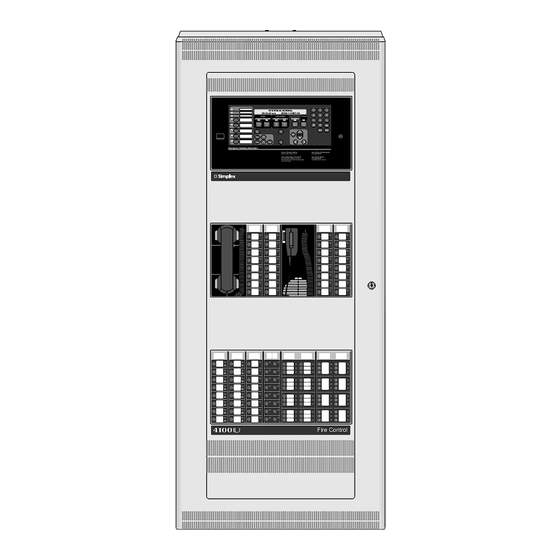

4100U Fire Alarm Control Panel
with Voice Control
®
product supplier for details.
S4100-0035-6 4/2005
Local mode
Alarm
Alarm
Silenced
Local
Mode
Active
controller
Power
On
®
remote
