Mounting

Mounting
TICs, Audio Riser Modules, and Network Audio Riser Controller Modules are 4" X 5" modules
Instructions
and are mounted per the following information.
IMPORTANT:
1. Screw two standoffs and washers to the appropriate holes in the back of the cabinet.
2. Plug the 4" X 5" card into the top left PDI connector (P8).
3. Secure the top of the card to the standoffs with two #6 torx screws and washers.
Note: Figure 4 is a general-purpose illustration that applies to most
TIC OR
NETWORK
AUDIO RISER
CONTROLLER
MODULE
SCREW
RETAINERS
#6 SCREWS
The TIC or Network Audio Riser Controller Module should be
mounted in the upper left position of the bay. The audio riser
module must be mounted directly below the TIC or Network Audio
Riser Controller Module.
These holes must line up with the screw holes in the 4 X 5 card. See Figure 4.
4" X 5" cards.
WASHERS
STANDOFFS
PDI CONNECTOR
(reverse side)

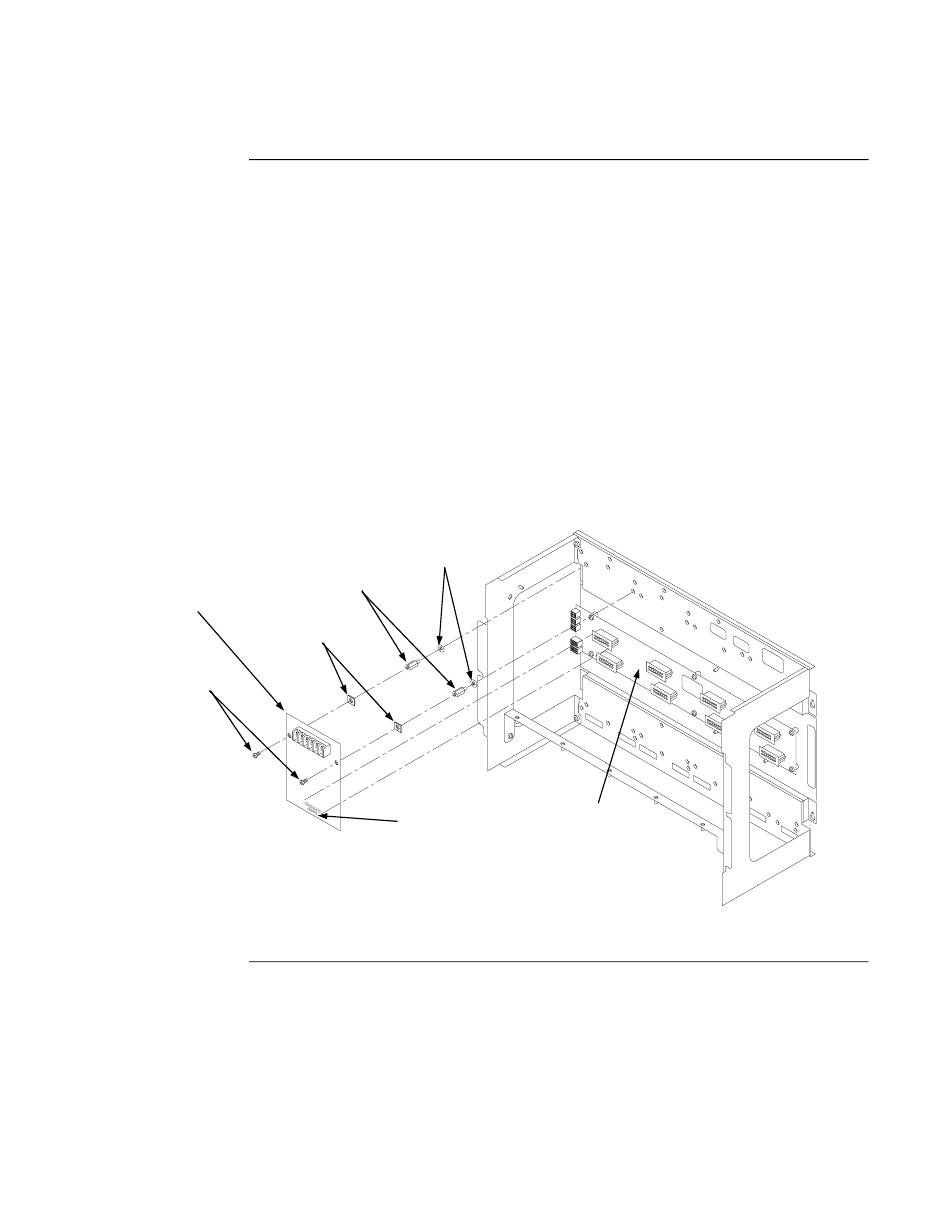

Figure 4. TIC or Network Audio Riser Controller Module Mounting
