Introduction

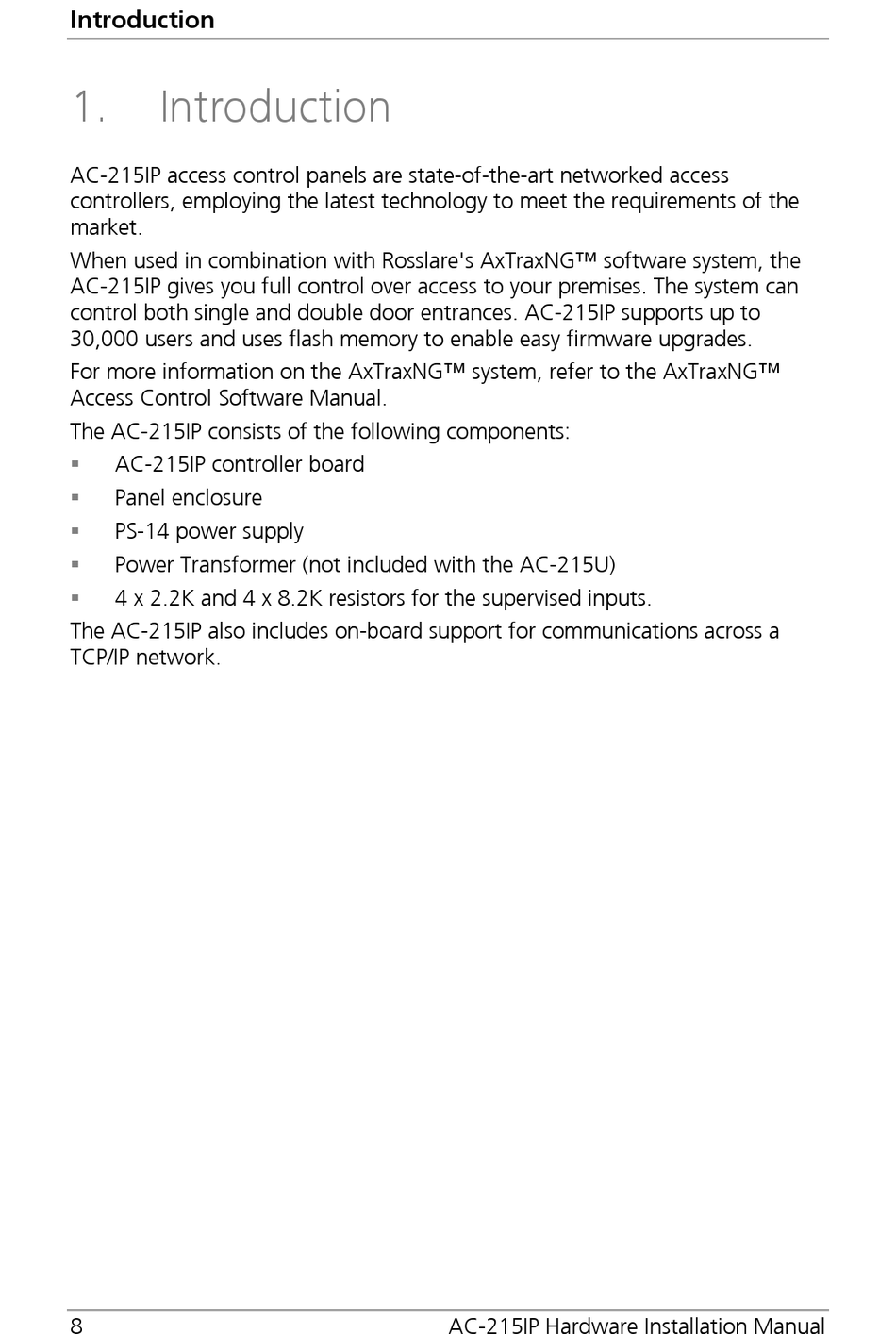

1. Introduction
AC-215IP access control panels are state-of-the-art networked access
controllers, employing the latest technology to meet the requirements of the
market.
When used in combination with Rosslare's AxTraxNG™ software system, the
AC-215IP gives you full control over access to your premises. The system can
control both single and double door entrances. AC-215IP supports up to
30,000 users and uses flash memory to enable easy firmware upgrades.
For more information on the AxTraxNG™ system, refer to the AxTraxNG™
Access Control Software Manual.
The AC-215IP consists of the following components:

AC-215IP controller board

Panel enclosure

PS-14 power supply

Power Transformer (not included with the AC-215U)

4 x 2.2K and 4 x 8.2K resistors for the supervised inputs.
The AC-215IP also includes on-board support for communications across a
TCP/IP network.
8 AC-215IP Hardware Installation Manual
