  • Page 1 INSTRUCTION MANUAL AC-Q41H VANDAL RESISTANT STAND-ALONE ACCESS CONTROL UNIT 07/04...

  • Page 2: Table Of Contents

    Replacing a lost Programming Code Replacing a lost Normal / Secure Code Technical Specifications Key Features APPENDIX INSTALLATION Glossary Mounting the AC-Q41H Controller Wiring Diagrams WARRANTY FEATURES AND CONCEPTS TECHNICAL SUPPORT Normal, Secure, & Master Users Modes Of Operation Changing the Modes of Operation...

  • Page 3: Introduction

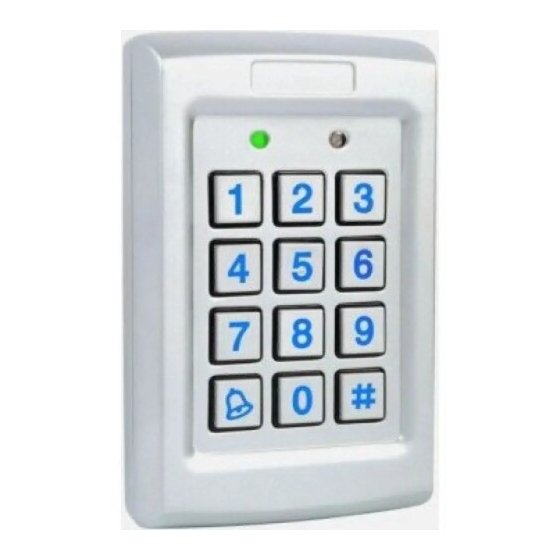

    Introduction Technical Specification The AC-Q41H is a vandal resistant keypad access control unit Electrical Characteristics suitable for internal or external applications. Operating Voltage Range: 12 to 24V DC From a Regulated Power Supply The unit accepts up to 500 users and provides entry via the use of PIN codes.

  • Page 4: Key Features

    Mechanical Characteristics Key Features Dimensions: 4.72" (120mm) L x 3" (76mm) W x 0.85"(22mm) D Here are some of the AC-Q41H's key features: Weight: 1.2 lbs (521g) Waterproof and Vandal Resistant Built in keypad for PIN code entry Auxiliary Input & Auxiliary Output...

  • Page 5: Installation

    Installation Mounting the AC-Q41H Controller 1) Before starting, select the location to mount the AC-Q41H controller. 2) Drill holes into the back cover according to how you want to mount the AC-Q41H. (See explanation and diagram below). US Gang Box There are two hole indicators on the back of the metal cover specifically for the US Gang Box.
  • Page 6 5) Screw the AC-Q41H back cover to its mounting location. 6) Attach the removable terminal blocks to the Controller. 7) Return the front cover of the AC-Q41H to the mounted back plate. 8) Secure the front cover by using the supplied security screw in the controllers accessories kit.

  • Page 7: Wiring Diagrams

    Wiring Diagrams Wiring the Auxiliary Input and Output AC-Q41H AC-Q41H LOCK V IN AUX. LOCK V IN AUX. AUXILIARY COMMON INPUT POWER SUPPLY (MONITOR) 12V - 24V DC COMMON ELECTRIC LOCK POWER SUPPLY STRIKE 16V - 24V AC 12V - 24V DC...

  • Page 8: Normal, Secure, & Master Users

    Normal, Secure, & Master Users Wiring the BL-D40 External Sounder The AC-Q41H accepts up to 500 users and provides entry via the use of PIN codes. Each user is provided with two code memory slots, Memory Slot 1 (Primary Code) and Memory Slot 2 (Secondary Code).

  • Page 9: Modes Of Operation

    Mode LED will turn green. Only Secure and Master Users can access the premises during The Auxiliary Input of the AC-Q41H can also be used to switch the the Secured Mode. mode of operation from Secure to Normal Mode and vice versa.

  • Page 10: Auxiliary Output And Input

    If the BL-D40 External Sounder receives a Tamper Event Signal, it will activate a Siren and a Strobe Light. The Siren time can be The AC-Q41H auxiliary input and output can be configured in ten easily programmed in the AC-Q41H from 0 to 9 minutes.

  • Page 11: Bl-D40 External Sounder

    "Default Factory Settings". is pressed. The table below shows the names of all the AC-Q41H menus. It 2) The Door Chime can be programmed to sound whenever a valid also shows of all the AC-Q41H's default factory codes and settings.

  • Page 12: Entering Programming Mode

    2) Press "1" to enter Menu 1 The Mode LED will turn red GREEN Note: - The AC-Q41H must be in Normal Mode to enter the Programming Mode. 3) Enter the new 4-digit code you - The factory default Programming Code is 1234 wish to set as Open Code.

  • Page 13: Changing The Programming Code

    Note: - Programming Code can not be erased, i.e. the code c) Enable Bypass Mode - Disable Door Chime 0000 is not valid and will not erase the Programming d) Enable Bypass Mode - Enable Door Chime Code. AC-Q41H AC-Q41H Page 24 07/04 Page 25...

  • Page 14: Setting Fail Safe/Secure Operation

    Tamper Siren Time, and a 12 second Lock Strike release time. 4) System returns to Normal Mode Mode Door You will hear three beeps GREEN The Door LED will turn off. The Mode LED will turn green AC-Q41H Page 26 07/04 AC-Q41H Page 27 07/04...

  • Page 15: Setting The Auxiliary Mode

    Auxiliary Setting Auxiliary Mode In addition to the Lock Strike Relay and Lock Strike REX, the AC-Q41H features an Auxiliary Output Relay and an Auxiliary Input. The Auxiliary Mode defines the function of the Auxiliary Input and Output. The Auxiliary Mode also determines if the Auxiliary Output Relay is set for Fail Safe or Fail Secure Operation.

  • Page 16: Auxiliary Mode Reference Guide

    AC-Q41H is pressed. The auxiliary setting defines how long the auxiliary relay should be activated. The auxiliary input can switch In auxiliary mode 6 the AC-Q41H can trigger the auxiliary relay if it the mode of operation of the controller between Normal and Secure detects that the door has been forced.

  • Page 17: Enabling Or Disabling The Built-In Keypad Heater

    AUXILIARY MODE 7 Enabling or Disabling the In auxiliary mode 7 the AC-Q41H can trigger the auxiliary relay if it built in keypad heater detects that the door has been ajar too long. In this mode the auxiliary input should be wired to the magnetic contact switch on The factory default setting for the keypad heater is disabled 3000.

  • Page 18: Enrolling Primary And Secondary Codes

    Secondary Code and the User Slot Code is unknown. The Code Search method only works if a users Primary Code is already enrolled but the Secondary Code is not. (See Enrolling Users with the Code Search Method on Page 36) AC-Q41H Page 34 07/04 AC-Q41H...

  • Page 19: Deleting Primary And Secondary Codes

    4) Enter your Programming Code to If the Primary Code entered is not valid, you will hear a long beep and the AC-Q41H will continue to wait for a valid Primary Code. confirm the deletion. If the Programming Code is valid, you will hear three beeps 5) Enter the 4-digit PIN Code to be used as the Secondary Code.

  • Page 20: Lock Strike Relay And Auxiliary Relay

    If the Programming Code is valid, you will hear three beeps "1" assigns the Lock Strike Relay only and the AC-Q41H will return to Normal Mode. "2" assigns the Auxiliary Relay only "3" assigns the Lock Strike and Auxiliary Relay If the Programming Code is invalid, you will hear a long beep and the AC-Q41H will return to Normal Mode.

  • Page 21: Return To Factory Default Settings

    If the assignment digit is valid, you will hear three beeps and then the controller will return to Normal Mode. If the assignment digit is invalid, you will hear a long beep and the controller will wait for another assignment digit to be entered. AC-Q41H Page 40 07/04 AC-Q41H...

  • Page 22: Glossary

    Glossary Replacing a lost Programming Code valid users. In this mode the door Note: The AC-Q41H must be in Normal Mode otherwise this may be released by anyone pressing will not work. Make sure that the Mode LED is green Access Control: Primarily refers to the star button.
  • Page 23 Primary and Secondary Code which programming mode, deleting users, external input (such as a door are the same, and can gain access in and resetting the AC-Q41H to its monitor) is connected to the Auxiliary any Mode of Operation. factory default settings.

  • Page 24: Warranty

    LIMITED LIFETIME WARRANTY TERMS The terms of this warranty may not be varied by any person, whether or not purporting to represent or act on behalf of Rosslare. ROSSLARE ENTERPRISES LIMITED S (Rosslare) LIMITED This warranty represents the full extent of Rosslare's LIFETIME WARRANTY is applicable worldwide.

  • Page 25: Technical Support

    Technical Support International: Rosslare Enterprises Ltd. 905-912 Wing Fat Industrial Bldg., 12 Wang Tai Road, Kowloon Bay, Hong Kong. http://www.rosslaresecurity.com Tel: (852) 2795 5630 Fax: (852) 2795 1508 E-mail: info@rosslare.com.hk United States and Canada: Rosslare NAPDC Suite 238, 200 East Howard Street, Des Plaines, IL 60018 http://www.rosslaresecurity.com...
