AY-B91x0BT
Professional Fingerprint Readers
User Manual
Models:
AY-B9120BT
AY-B9150BT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AY-B91 0BT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AY-B91 0BT Series

Summary of Contents for Rosslare AY-B91 0BT Series

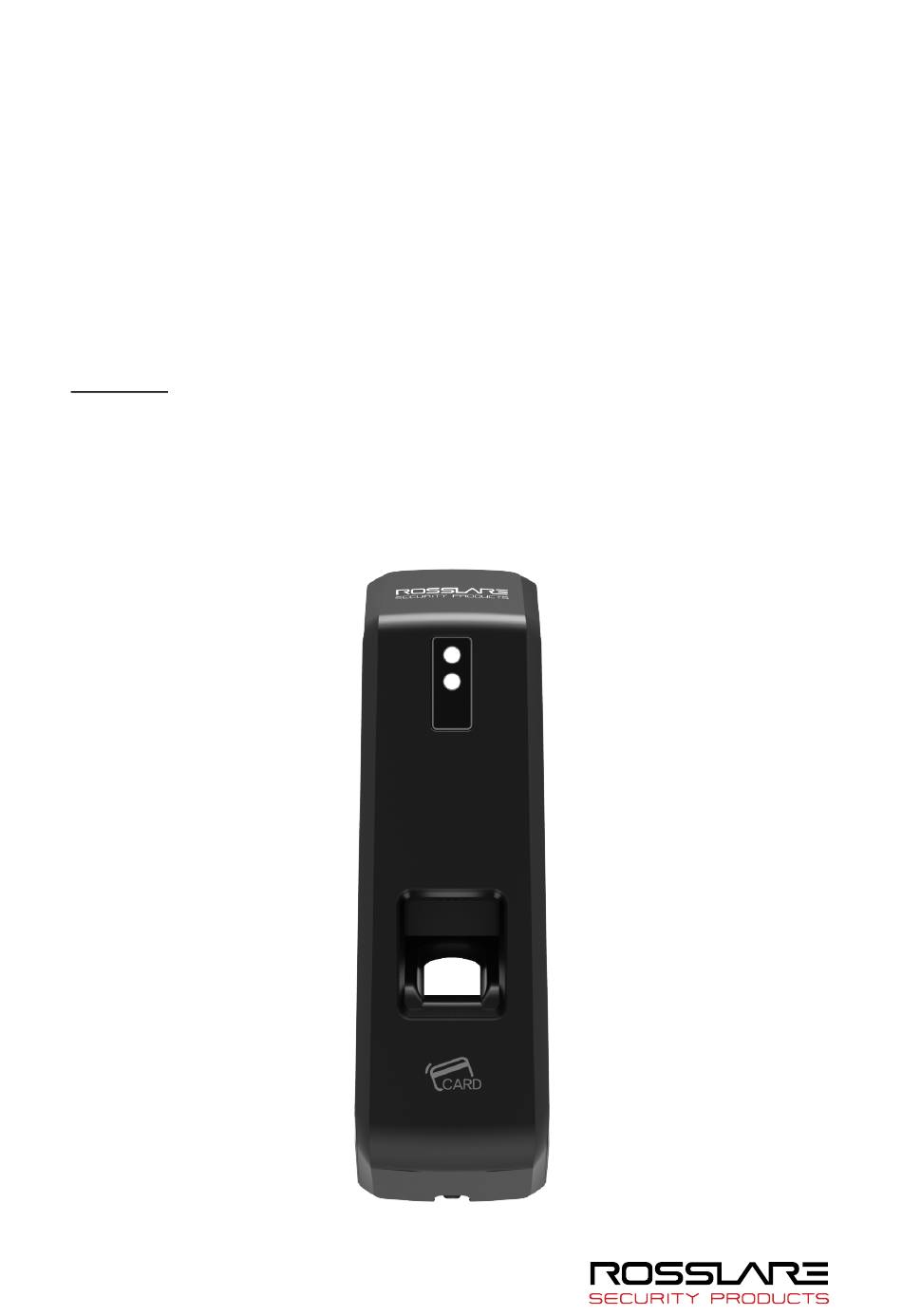

  • Page 1 AY-B91x0BT Professional Fingerprint Readers User Manual Models: AY-B9120BT AY-B9150BT...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    3. Environment Setting ......................10 3.1. Terminal Setting ........................... 10 3.1.1. Setting via Rosslare Bio9000 ...................... 10 3.1.2. To set the terminal IP via Rosslare Bio9000................12 4. How to Use Terminal ......................14 4.1. Authentication ............................14 4.1.1. Fingerprint Authentication ......................14 4.1.2.

  • Page 4: Before Getting Started

    AY-B91x0BT User Guide 1. Before Getting Started 1.1. Safety Notes  Warning Do not operate the terminal with wet hands, and pay Keep the terminal away attention not to let any liquid from inflammables. enter inside the terminal. → Otherwise, it may cause →...

  • Page 5: Product Details

    AY-B91x0BT User Guide 1.2. Product Details Status LED Fingerprint Sensor Card Sensor...

  • Page 6: Led Signals Displayed During Operation

    AY-B91x0BT User Guide 1.3. LED signals displayed during operation Lighting : Normal status ● Flickering : When the input of fingerprint and card user is on standby Lighting : Light up for 1 second upon successful authentication. ● Flickering : Flicker at one second interval when FW is downloaded and when an administrator application is entered.
  • Page 7 AY-B91x0BT User Guide Make sure that the fingerprint is clear and not wounded.  Too dry, wet, blurry or wounded fingerprints are difficult to recognize. In this case, the fingerprint of another finger should be registered. Precautions subject to your fingerprint status ...

  • Page 8: Product Description

     AY-B9150BT – Professional Fingerprint reader with MIFARE + BT  Note: The standalone management software is RosslareBio9000. Please refer to the Rosslare Bio9000 Software Manual. For AxTraxNG™ integration, please refer to the AxTraxNG™ Software Installation and User Manual 2.1. Product Features ...

  • Page 9: Configuration Diagram

    AY-B91x0BT User Guide 2.2. Configuration Diagram 2.2.1. Standalone Use (Access) 12 V Unique Adapter Electrical Lock (Lock+, Lock-, Monitor) 2.2.2. Connecting to the PC server (Access, T&A) TCP/IP TCP/IP Fingerprint Authentication TCP/IP Server Internet / WAN / LAN Remote Administrator Program (User and Terminal Setting TCP/IP Management)

  • Page 10: Environment Setting

    AY-B91x0BT User Guide 3. Environment Setting 3.1. Terminal Setting 3.1.1. Setting via Rosslare Bio9000  Card Format The type of card to be used can be set. Settings Display Method No Use Do not use the card authentication Use a low-frequency (125 kHz) EM card MIFARE Use a high-frequency (13.56 MHz) MIFARE card...
  • Page 11  Port No. Set the Rosslare Bio9000 Server port to 2000-65535. (Default: 7332)  Network Timeout Set the communication cycle time between the Rosslare Bio9000 server and the terminal to the range of 2-20.  Time Synchronization Set time of device to time of smart phone.

  • Page 12: To Set The Terminal Ip Via Rosslare Bio9000

    AY-B91x0BT User Guide 3.1.2. To set the terminal IP via Rosslare Bio9000 By running terminal search items in the terminal management menu of Rosslare Bio9000, perform the setting of terminal IP. When clicking the Search button on the above screen, the unregistered terminals appear as shown...
  • Page 13 “Modify IP” button. Then, you can check that the terminal value has been changed. Set Terminal ID and Terminal Network and then click the “Request Connect” button at the bottom, and the terminal appears as the unregistered status on the screen. * For more details, please refer to the Rosslare Bio9000 Manual.

  • Page 14: How To Use Terminal

    AY-B91x0BT User Guide 4. How to Use Terminal 4.1. Authentication 4.1.1. Fingerprint Authentication Place your finger on the fingerprint sensor. The fingerprint sensor lights on and receives fingerprint input. Keep your finger on the fingerprint sensor until the light turns off completely. 4.1.2.

  • Page 15: Troubleshooting

     Check that the terminal is registered in the terminal management item in the information management menu of Rosslare Bio9000. If the terminal is not registered, check that it is set in the terminal search of Rosslare Bio9000.  Server IP on which Rosslare Bio9000 is installed Check that the terminal ID is set up correctly.

  • Page 16: When The User Is Not Registered

    Check the network connection status. 5.7. When the product is unstable or does not work:  Select the terminal in the terminal management menu of Rosslare Bio9000, click the right mouse button, and select the [terminal Restart] item. The terminal restarts.

  • Page 17: Appendix 1. Glossary

    AY-B91x0BT User Guide Appendix 1. Glossary  Administrator (Admin) - The administrator can access the terminal menu mode. He/she has the authority to add/modify/delete terminal users and to change the operating environment by changing settings. - If there is no registered administrator in the terminal, anybody can access the terminal menu and change settings.

  • Page 18: Appendix 2. Declaration Of Conformity

    AY-B91x0BT User Guide Appendix 2. Declaration of Conformity  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation.

  • Page 19: Appendix 3. Radio Equipment Directive (Red)

    AY-B91x0BT User Guide Appendix 3. Radio Equipment Directive (RED) Rosslare hereby declares that the AY-B91x0BT is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU.

  • Page 20: Appendix 4. Rohs Directive

    AY-B91x0BT User Guide Appendix 4. RoHS Directive Under our sole responsibility that the following labeled AY-B91x0BT is tested to conform to the Restriction of Hazardous Substances (RoHS) directive – 2011/65/EU – in electrical and electronic equipment.
  • Page 21 +86 755 8610 6101 Toll Free: +1-866-632-1101 support.cn@rosslaresecurity.com Local: +1-817-305-0006 India Fax: +1-817-305-0069 support.na@rosslaresecurity.com Rosslare Electronics India Pvt Ltd. Tel/Fax: +91 20 40147830 Europe Mobile: +91 9975768824 Rosslare Israel Ltd. sales.in@rosslaresecurity.com 22 Ha'Melacha St., P.O.B. 11407 Rosh HaAyin, Israel Tel:...
