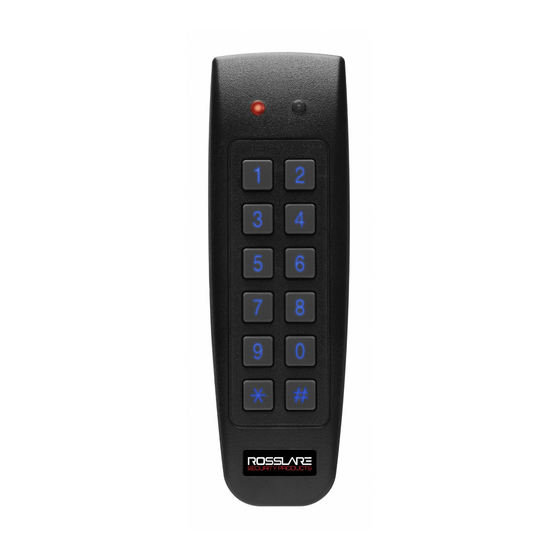

Rosslare AYC-G60 Installation And Programming Manual

Backlit goprox & pin reader
Hide thumbs Also See for AYC-G60:
Table of Contents

Advertisement

Quick Links

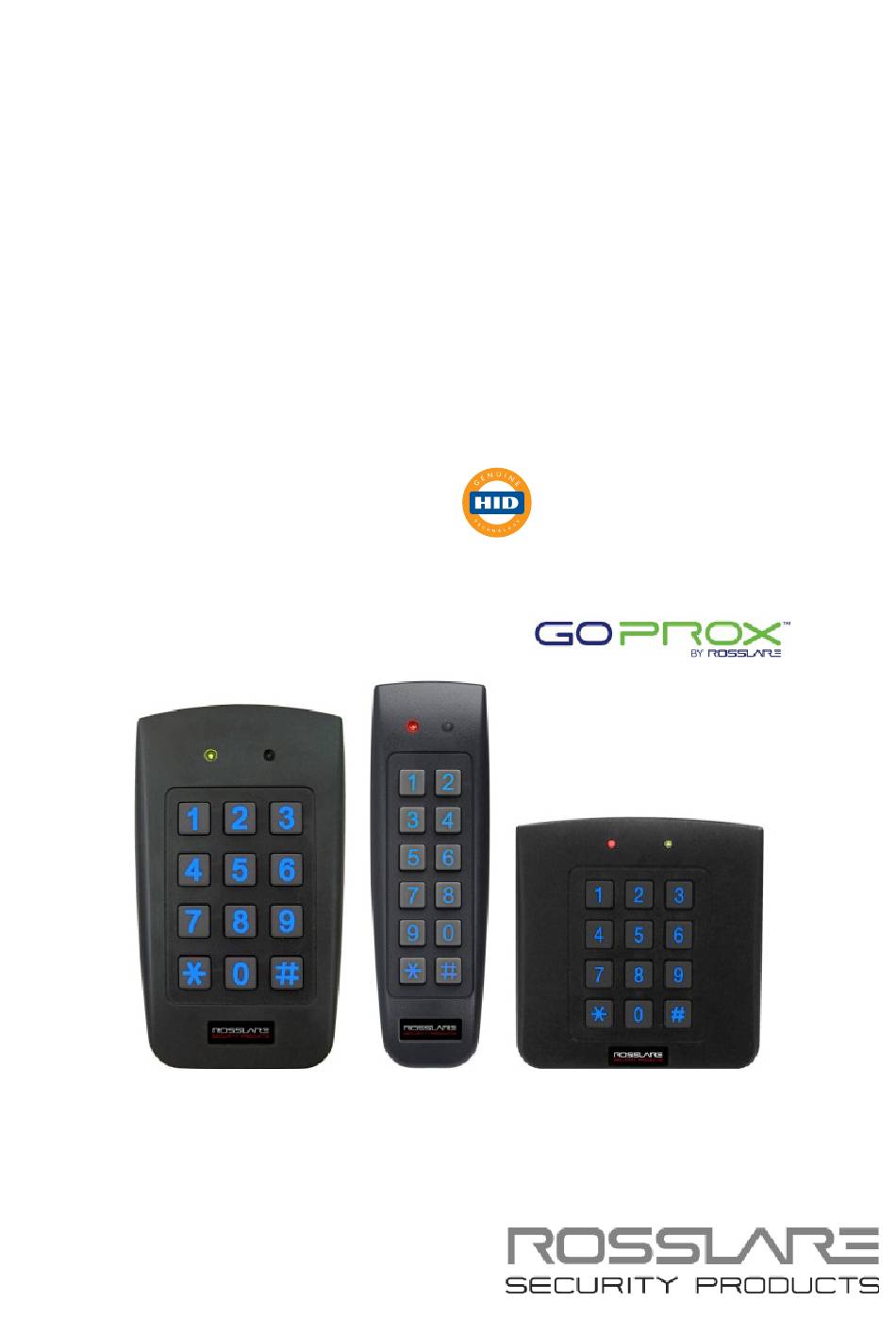

AYC-F/G/M60 Family
go
Backlit
PROX & PIN Reader –
Convertible Series with Genuine
™
HID Technology
Installation and Programming Manual
AYC-F60
AYC-G60
AYC-M60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AYC-G60 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosslare AYC-G60

Summary of Contents for Rosslare AYC-G60

  • Page 1 AYC-F/G/M60 Family Backlit PROX & PIN Reader – Convertible Series with Genuine ™ HID Technology Installation and Programming Manual AYC-F60 AYC-G60 AYC-M60...
  • Page 2 ROSSLARE. ROSSLARE reserves the right to revise and change this document at any time, without being obliged to announce such revisions or changes beforehand or after the fact.

  • Page 3: Table Of Contents

    4.2.4 Keypad Transmission Format Option Number ....... 23 4.2.5 Selecting HID Prox Card Transmission Format ....... 28 4.2.6 Selecting Rosslare Proximity Card Transmission Format ....28 4.2.7 Changing the Programming Code ..........30 4.2.8 Changing the Facility Code ............31 4.2.9...
  • Page 4 Table of Contents 4.2.11 Return to Factory Default Settings ..........33 4.2.12 Replacing a Lost Programming Code ..........33 Controller Functionality..........34 Normal, Secure, and Master Users .......... 34 Modes of Operation .............. 35 5.2.1 Normal Mode ................35 5.2.2 Bypass Mode ................
  • Page 5 Setting the Lockout Feature ............53 5.10.12 Setting the Backlight Behavior ............54 5.10.13 Selecting the Rosslare Proximity and HID Prox Format ....54 5.10.14 Enrolling Primary and Secondary Codes ........55 5.10.15 Deleting Primary and Secondary Codes ......... 59 5.10.16...
  • Page 6 List of Figures List of Figures Figure 1: Drilling and Mounting Holes ............. 14 Figure 2: Controller Application Wiring Diagram ..........16 Figure 3: Auxiliary Output Connection with Internal Power ......17 Figure 4: Auxiliary Output Connection with External Power......17 Figure 5: Reader Application Wiring Diagram ..........
  • Page 7 List of Tables List of Tables Table 1: Wiring Colors ..................15 Table 2: Reader Programming Menu ............... 20 Table 3: Keypad Transmission Format .............. 23 Table 4: Controller Programming Menu ............40 Table 5: Quick Reference Guide for Auxiliary Mode Setting ......48 AYC-F/G/M60 Family Installation and Programming Manual...
  • Page 8 ROSSLARE exclusive warranty and liability is limited to the warranty and  liability statement provided in an appendix at the end of this document.

  • Page 9: Introduction

    If the unit is connected to a standard access control unit, then it functions as a reader. If the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T, or PS-C25TU, it functions as a 500 user secured standalone controller.

  • Page 10: Reader

    Torx screw tool 1.1.2 Reader Programmable keypad transmission format  LED control input   Programmable facility code Rosslare proximity card transmission formats   Clock & Data Wiegand 26-Bit   Card + PIN HID Prox card transmission format ...

  • Page 11: Box Content

    Wiegand or Clock & Data communication protocols. Multiple keypad formats are supported. For a complete list, see Section 4.2.4. UL installations require a UL listed access control units such as Rosslare's AC-215U and AC-225U.  When functioning as a controller: Secured series intelligent power supply –...

  • Page 12: Technical Specifications

    Max. Proximity Card Read 60 mm (2.36 in.) Range* Proximity Card Modulation Rosslare proximity/HID Prox at 125 kHz Proximity Card Compatibility Rosslare proximity/HID Prox cards Card Transmit Format Rosslare proximity cards: Wiegand 26-Bit, or Clock & Data (Reader) HID Prox cards: According to card type...
  • Page 13 F: 230 g (8.11 oz) G: 175 g (6.17 oz) M: 185 g (6.53 oz) * Measured using a Rosslare proximity card or equivalent. Range also depends on electrical environment and proximity to metal. AYC-F/G/M60 Family Installation and Programming Manual...

  • Page 14: Installation

    3. When the unit is used as a secured controller, route the interface cable from the AYC-F/G/M60 to a Rosslare secured series intelligent power supply (see Section 3.2). 4. Screw the AYC-F/G/M60 back cover to its mounting location.

  • Page 15: Wiring Instructions

    Installation Wiring Instructions The unit is supplied with a 56-cm (22”) pigtail, having a 6-conductor cable. To connect the unit to the controller: 1. Prepare the unit's cable by cutting the cable jacket back 3.2 cm (1¼”) and stripping the wire 1.3 cm (½”). 2.

  • Page 16: Figure 2: Controller Application Wiring Diagram

    Installation Figure 2 shows the wiring for the Controller Application using a secured intelligent power supply. Figure 2: Controller Application Wiring Diagram AYC-F/G/M60 Family Installation and Programming Manual...

  • Page 17: Figure 3: Auxiliary Output Connection With Internal Power

    Installation Figure 3 shows the auxiliary output connection using internal power. Figure 3: Auxiliary Output Connection with Internal Power Figure 4 shows the auxiliary output connection using external power. Figure 4: Auxiliary Output Connection with External Power AYC-F/G/M60 Family Installation and Programming Manual...

  • Page 18: Figure 5: Reader Application Wiring Diagram

    Installation Figure 5 shows how to wire a reader to the access control panel. Figure 5: Reader Application Wiring Diagram AYC-F/G/M60 Family Installation and Programming Manual...

  • Page 19: Reader Functionality

    Keyboard data can be sent via one of eight different Keypad Transmission Formats. For more information, see Section 4.2.3. Rosslare proximity cards presented to the reader can output card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. See Section 4.2.6 for more information.

  • Page 20: Table 2: Reader Programming Menu

    Table 2: Reader Programming Menu Menu Description Default Selecting Keypad Transmission Format Single Key, Wiegand 6-Bit (Rosslare Format) Single Key, Wiegand 6-Bit with Nibble + Parity Bits Single Key, Wiegand 8-Bit, Nibbles Complemented 4 Keys Binary + Facility code, Wiegand 26-Bit...

  • Page 21: Entering Programming Mode

    Reader Functionality 4.2.1 Entering Programming Mode To reach the Programming Menu System the AYC-F/G/M60 must first be placed into Programming mode. To enter Programming mode: 1. Press # four times. Transmit LED turns off. Mode/Transmit Door/Program Program LED turns red. 2.

  • Page 22: Selecting Keypad Transmission Format

    Reader Functionality 4.2.3 Selecting Keypad Transmission Format The AYC-F/G/M60 has nine different keypad transmission formats to select from. Follow the steps below to select the appropriate keypad transmission format that you wish to use. To select the key pad transmission format: 1.

  • Page 23: Keypad Transmission Format Option Number

    4.2.4.1 Option 1: Single Key, Wiegand 6-Bit (Rosslare Format) Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits.
  • Page 24 Reader Functionality 4.2.4.2 Option 2: Single Key, Wiegand 6-Bit Nibble and Parities Each key press immediately sends 4 bits with 2 parity bits added – even parity for the first 3 bits and odd parity for the last 3 bits. 0 = 0 0000 1 6 = 1 0110 0 1 = 0 0001 0...
  • Page 25 Reader Functionality If * or # is pressed during PIN code entry, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 4- digit keypad PIN code. If the entry of the 4-digit keypad PIN code is disrupted and no number key is pressed within 5 seconds, the keypad clears the PIN code entry buffer, generates a beep, and is ready to receive a new 4-digit keypad PIN code:...
  • Page 26 Reader Functionality (EP) FFFF FFFF AAAA AAAA AAAA AAAA (OP) Where: EP = Even parity for first 12 bits OP = Odd parity for last 12 bits F = 8-Bit Facility code A = 16-Bit code generated from keyboard 4.2.4.6 Option 6: 6 Keys BCD and Parity Bits, Wiegand 26-Bit This option sends buffer of 6 keys, adds parity, and sends a 26-bit BCD message.
  • Page 27 Reader Functionality When a key is pressed, DATA1 is pulled "low" until the key is released at which point DATA1 is set to "high". This allows the controller to detect the duration of the key press. The MD-P64 interface unit outputs the data received to 7 outputs emulating a keyboard.

  • Page 28: Selecting Hid Prox Card Transmission Format

    Selecting Rosslare Proximity Card Transmission Format The AYC-F/G/M60 can read Rosslare proximity cards (125 kHz) and can output Rosslare proximity card data as Wiegand 26-Bit, Clock & Data, and Wiegand + PIN. To select the Rosslare prox imity card transmission format: Door/Program 1.
  • Page 29 Reader Functionality If an incorrect option is entered, the reader returns to Transmit mode and the keypad transmission format remains unchanged. You hear three beeps. Mode/Transmit Door/Program The system returns to Transmit mode. 4.2.6.1 "Wiegand Card + PIN" Transmission Format This unique mode is intended to let host controllers get card and keypad data simultaneously.

  • Page 30: Changing The Programming Code

    Reader Functionality Where: A = The first key entered D = Fourth key entered B = Second key entered E = Fifth key entered C = Third key entered EP = Even parity for first 12 bits OP = Odd parity for last 12 bits If the PIN code is less than 5 digits, all the most significant nibbles are filled with 0.

  • Page 31: Changing The Facility Code

    Reader Functionality • The Programming code cannot be erased; the code 0000 is invalid and does not erase the Programming code. • The factory default 4-digit Programming code is 1234. 4.2.8 Changing the Facility Code To change the Facility code: 1.

  • Page 32: Setting The Reader Format

    3. Enter the appropriate option number for the reader format: 61 for Rosslare Proximity  62 for HID Prox  63 for Rosslare Proximity + HID Prox (default)  You hear three beeps. Mode/Transmit Door/Program The system returns to Transmit mode.

  • Page 33: Return To Factory Default Settings

    Reader Functionality 4.2.11 Return to Factory Default Settings You must be very careful before using this command! This erases the entire memory and returns all codes to their factory default setting. To return to factory default settings: 1. Enter Programming mode. Mode/Transmit Door/Program Green...

  • Page 34: Controller Functionality

    Controller Functionality The AYC-F/G/M60 series can function both as a reader and as a controller. If the unit is connected to a Rosslare secured series intelligent power supply, it functions as a controller indicated by two beeps immediately after power-on reset.

  • Page 35: Modes Of Operation

    Controller Functionality  Secure User – A Secure User must have a Primary and Secondary code programmed; the two codes must not be the same. The Secure User can gain access when the AYC-F/G/M60 is in any of its three modes of operation. In Normal mode, the Secure User must use the Primary code to gain entry.

  • Page 36: Secure Mode

    Controller Functionality 5.2.3 Secure Mode Door/Program The Mode LED is red. Mode/Transmit Only Secure and Master Users can access the premises during the Secured Mode. A Secure User must enter their Primary and Secondary codes to gain entry. After entering their Primary code, the Door LED flashes green for 10 seconds, during which the Secondary code must be entered.

  • Page 37: Changing From Normal Mode To Bypass Mode

    Controller Functionality 2. Press # to confirm the mode change. Door/Program The Mode LED turns green. Mode/Transmit Green 5.3.3 Changing from Normal Mode to Bypass Mode See Section 5.10.7 to create/modify the Normal/Bypass code. To change from Normal to By pass mode: Mode/Transmit Door/Program 1.

  • Page 38: Auxiliary Input & Output

    Controller Functionality Auxiliary Input & Output For optimum usability in different applications, the controller’s auxiliary input and output can be configured in 10 different modes of operation. Door Alarms Door alarms can be generated by connecting the Auxiliary Input to a Door Position Switch.

  • Page 39: Rex Function

    Rosslare's secured series standalone access control units, including AYC-F/G/M60. It is designed to operate indoors and installed within the secured premises. The AYC-F/G/M60 must be used with one of Rosslare’s secured series intelligent power supply, which provides Lock Strike output and REX input.

  • Page 40: Programming The Ayc-F/G/M60

    Changing Normal/Bypass Code Changing Door Release Time 0004 Defining Auxiliary 2004 Inputs/Outputs Set Lockout 4000 Backlight Behavior 5100 Rosslare proximity/HID Prox 6300 format Enrolling PIN Code Deleting PIN Code Code assignment with strike/auxiliary Return to factory defaults/Change PIN code Length...

  • Page 41: Entering Programming Mode

    Controller Functionality You will find a complete description and instructions for each of the above menu items on the following subsections. 5.10.1 Entering Programming Mode To enter Programming mode: 1. Press # twice within 2 seconds. Door/Program The Mode LED turns off and the Mode/Transmit Door LED turns red 2.

  • Page 42: Changing Lock Strike Code

    Controller Functionality 5.10.3 Changing Lock Strike Code The Lock Strike code is mainly used as a method to quickly test the Lock Strike Relay during installation. When the first user is added to the controller, the default Lock Strike code is automatically deleted. Once the code is programmed again, it is not deleted with the entry of additional User codes.

  • Page 43: Changing The Programming Code

    Controller Functionality Mode/Transmit Door/Program The Mode LED turns orange. Orange Green 3. Enter the new code you wish to set as the Auxiliary code. You hear three beeps. Mode/Transmit Door/Program Green The system returns to Normal mode. • Auxiliary code does not work in the Secure mode. •...

  • Page 44: Changing The Normal/Secure Code

    Controller Functionality 5.10.6 Changing the Normal/Secure Code To change the Normal/ Secure code: Door/Program 1. Enter Programming mode. Mode/Transmit Green 2. Press 4 to enter Menu 4. The Mode LED flashes red. Mode/Transmit Door/Program Green 3. Enter the new code you wish to set as Normal/Secure code.

  • Page 45: Setting Fail Safe/Secure Operation, Tamper Siren And Lock Strike Release Time

    Controller Functionality  Disable both Bypass code and the door chime. Enter the code 0000. Disable Bypass code and  enable the door chime. Enter the code 0001.  Enable Bypass code and disable the door chime. Enter any code ending with ...
  • Page 46 Controller Functionality Construct a code using the following instructions:  First Digit For Fail Secure Operation, the first digit should be 0. For Fail Safe Operation the first digit should be 1. Second Digit  Siren Time in minutes (1-9, 0-disabled) Third and Fourth Digits ...

  • Page 47: Defining The Auxiliary Input And Output

    Controller Functionality 5.10.9 Defining the Auxiliary Input and Output The default auxiliary setting is 2004. To define the aux iliary input and output: Door/Program 1. Enter Programming mode. Mode/Transmit Green 2. Press 6 to enter Menu 6. The Mode LED flashes green. Mode/Transmit Door/Program Green Green...

  • Page 48: Table 5: Quick Reference Guide For Auxiliary Mode Setting

    Controller Functionality Table 5: Quick Reference Guide for Auxiliary Mode Setting Auxiliary Auxiliary Input Auxiliary Output Auxiliary Auxiliary Settings Mode Function Activated by Relay (in seconds) AUX REX Valid code or AUX REX N.O. 01 to 99 Aux. relay release time 00 Aux.

  • Page 49: Detailed Reference Guide

    Controller Functionality 5.10.10 Detailed Reference Guide The following are brief descriptions of each auxiliary mode. To implement the features of each mode, refer to Section 5.10.9. 5.10.10.1 Auxiliary Mode 0 Auxiliary input function: Activates the auxiliary output Auxiliary output activated by: Valid user code, Auxiliary code, Auxiliary input For example, in Auxiliary Mode 0, the controller can function as a two-door controller.
  • Page 50 Controller Functionality the auxiliary relay is to be activated. The auxiliary input can switch the mode of operation of the controller between Normal and Secure modes. By connecting a switch timer or alarm system output to the auxiliary input, the controller can be automatically switched from Normal mode (during office hours) to Secure mode (after office hours).
  • Page 51 Controller Functionality 5.10.10.6 Auxiliary Mode 5 Auxiliary input function: Door Monitor Auxiliary output activated by: Shunt (explanation below) For example, in Auxiliary Mode 5, the controller is capable of shunting an alarm system. In this mode, the auxiliary input is to be wired to the magnetic contact switch on the door.
  • Page 52 Controller Functionality and if the door does not close prior to the end of this period, the controller activates the auxiliary relay. The auxiliary setting defines the door-ajar time. 5.10.10.9 Auxiliary Mode 8 Auxiliary input function: Green LED control Auxiliary output activated by: Valid user code, Auxiliary code For example, in Auxiliary Mode 8, the controller can function as a two-door controller and also provide indicator functionality control.

  • Page 53: Setting The Lockout Feature

    Controller Functionality 5.10.11 Setting the Lockout Feature If the controller is presented with wrong codes consecutively several times, the unit goes into Lockout mode. When a lockout occurs, the controller keypad and reader are locked so no codes can be entered until the set lockout period expires. During Lockout, Mode LED is off, the door LED flashes red, and the controller beeps every two seconds.

  • Page 54: Setting The Backlight Behavior

    (Mode LED also goes on), after which it returns to a dimmed level 5.10.13 Selecting the Rosslare Proximity and HID Prox Format The controller allows you to select the Rosslare proximity and HID Prox format. To select the Rosslare prox imity and HID Prox format: Door/Program 1.

  • Page 55: Enrolling Primary And Secondary Codes

    Controller Functionality 3. Enter one of the following codes:  6100 – Rosslare proximity 6200 – HID Prox  6300 – Rosslare proximity + HID Prox (default)  5.10.14 Enrolling Primary and Secondary Codes Primary codes   Primary codes can only be enrolled to an empty user slot, meaning a slot where there is no existing primary code.
  • Page 56 Controller Functionality  Code Search Method The Code Search Method is mainly used when enrolling a user’s Secondary code and the User Slot code is unknown. The Code Search method only works if a user’s Primary code is already enrolled but the Secondary code is not (see Section 5.10.14.2).
  • Page 57 Controller Functionality If the selected slot already has a Mode/Transmit Door/Program Primary code but no Secondary Orange code, the Mode LED flashes red, indicating that the controller is ready to accept a Secondary code. Door/Program If the selected slot already has a Mode/Transmit Green Primary and Secondary code,...
  • Page 58 Controller Functionality 5.10.14.2 Enrolling Secondary Codes using the Code Search Method The Code Search feature enables you to quickly enroll a Secondary code to a user who already has a Primary code. To enroll secondary codes using the Code Search method: Door/Program 1.

  • Page 59: Deleting Primary And Secondary Codes

    Controller Functionality 6. Perform one of the following:  Enter the code to be used as the Secondary code. Present the user card to be used as the Secondary code  If the Secondary code is valid, the controller beeps three times and returns to Normal mode.
  • Page 60 Controller Functionality The Mode LED flashes red Mode/Transmit Door/Program indicating the controller is Orange waiting for the Programming code to confirm the deletion. If the user slot is empty, you hear a long beep and the AYC- F/G/M60 returns to Normal mode. 4.

  • Page 61: Relay Codes Assignment

    Controller Functionality The controller is now waiting for the Primary code of the user you want to delete. 4. Perform one of the following: Enter the PIN code of the  Primary code belonging to the user you want to delete. ...
  • Page 62 Controller Functionality 5.10.16.1 Relay Code Assignment using the Standard Method To assign relay code using the Standard method: Door/Program 1. Enter Programming mode. Mode/Transmit Green 2. Press 9 to enter Menu 9. Mode/Transmit Door/Program The Mode LED turns green and the Door LED turns orange.
  • Page 63 Controller Functionality The Mode LED turns green and Mode/Transmit Door/Program the Door LED turns orange. Green Orange 3. Enter 000 for user slot access. The Door LED flashes orange. Mode/Transmit Door/Program Green Orange The controller is now waiting for the primary code of the user. 4.

  • Page 64: Pin Code Length/Factory Default Settings

    Controller Functionality 5.10.17 PIN Code Length/Factory Default Settings You must be very careful before using this command! Changing the PIN code length also erases the entire memory contents, including all user and special codes, and returns all codes to their factory default settings. Door/Program 1.

  • Page 65: Replacing A Lost Programming Code

    Controller Functionality 5.10.18 Replacing a Lost Programming Code The AYC-F/G/M60 must be in Normal mode; otherwise, this does not work. Make sure that the Mode LED is green before proceeding. 1. Remove power from the power supply unit. 2. Press the REX button on the power supply unit. 3.

  • Page 66: Declaration Of Conformity

    Declaration of Conformity Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference. This device must accept any interference received, including ...

  • Page 67: Limited Warranty

    The full ROSSLARE Limited Warranty Statement is available in the Quick Links section on the ROSSLARE website at www.rosslaresecurity.com. Rosslare considers any use of this product as agreement to the Warranty Terms even if you do not review them. AYC-F/G/M60 Family Installation and Programming Manual...
