- Page 1 INSTRUCTION MANUAL AC-S43 PIEZO-KEYPAD STANDALONE ACCESS CONTROL UNIT www.rosslaresecurity.com 07/04...
-
Page 2: Table Of Contents
Replacing a lost Programming Code Replacing a lost Normal / Secure Code Technical Specifications Key Features APPENDIX INSTALLATION Glossary Mounting the AC-S43 Controller Wiring Diagrams WARRANTY FEATURES AND CONCEPTS TECHNICAL SUPPORT Normal, Secure, & Master Users Modes Of Operation Changing the Modes of Operation... -
Page 3: Introduction

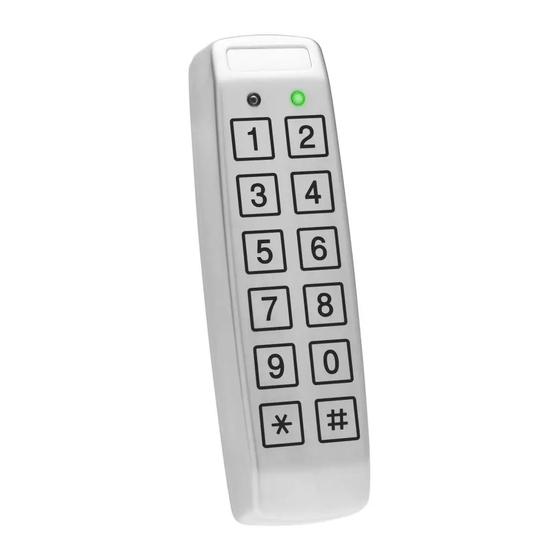

Introduction Technical Specification The AC-S43 is a waterproof keypad access control unit with backlit Electrical Characteristics keypad suitable for external or internal applications. Operating Voltage Range: 12 to 24V DC From a Regulated Power Supply The unit accepts up to 500 users and provides entry via the use of PIN codes. -
Page 4: Key Features
Key Features Here are some of the AC-S43's key features: Waterproof and vandal resistant Built in piezoelectric keypad for PIN code entry Auxiliary Input & Auxiliary Output Ten Auxiliary Modes including: Door Ajar Forced Door Shunt Door Monitor Normal / Secure... -
Page 5: Installation
2) Drill holes into the back of the metal according to how you want 2) Splice the controller pigtail wires to the corresponding devices to mount the AC-S43. For US Gang Box installation there are two and cover each connection. Refer to the wire color guide holes on the back cover aligned for the US Gang Box. -
Page 6: Wiring Diagrams
Wiring Diagrams Wiring the Auxiliary Input and Output AC-S43 AC-S43 WHITE IN / MONITOR BLACK GROUND V IN YELLOW N.O. ORANGE AUX. N.C. GREEN REX / BL BLUE GRAY N.O. BLACK GROUND BROWN LOCK N.C. V IN PURPLE COMMON ELECTRIC LOCK... - Page 7 Wiring the BL-D40 External Sounder THIS PAGE IS INTENTIONALLY BLANK AC-S43 BLACK GROUND V IN GREEN REX / BL COMMON POWER SUPPLY 12V - 24V DC 16V - 24V AC FROM TRANSFORMER BL-D40 AC-S43 Page 13 07/04 Page 12 07/04...
-
Page 8: Normal, Secure, & Master Users
Normal, Secure, & Master Users Modes of Operation The AC-S43 accepts up to 500 users and provides entry via the use The AC-S43 has 3 Modes of Operation: of PIN codes. Each user is provided with two code memory slots, Memory Slot 1 (Primary Code) and Memory Slot 2 (Secondary 1) Normal Mode. -
Page 9: Changing The Modes Of Operation
The AC-S43 auxiliary input and output can be configured in ten different modes of operation, for optimum usability in different The Auxiliary Input of the AC-S43 can also be used to switch the applications. mode of operation from Secure to Normal Mode and vice versa. -
Page 10: Request To Exit (Rex) Button
If the BL-D40 External Sounder receives a Tamper Event Signal, it will activate a Siren and a Strobe Light. The Siren time can be easily programmed in the AC-S43 from 0 to 9 minutes. The tamper event can activate the Auxiliary Output if the controller is in Auxiliary Mode 3. -
Page 11: Programming The Ac-S43
If the Programming Code is valid the door LED will turn GREEN The table below shows the names of all the AC-S43 Menus. It also green and the AC-S43 will be in shows of all the AC-S43's default factory codes and settings. -
Page 12: Changing The Open Code
Auxiliary Code will 0000 is not valid and will not erase the Programming automatically be deleted, ready for a Auxiliary Code to be Code. assigned. AC-S43 AC-S43 07/04 Page 22 07/04 Page 23... -
Page 13: Changing The Normal / Secure Code
Code and Door Chime can be programmed. a) Disable Bypass Mode - Disable Door Chime b) Disable Bypass Mode - Enable Door Chime c) Enable Bypass Mode - Disable Door Chime d) Enable Bypass Mode - Enable Door Chime AC-S43 AC-S43 Page 24 07/04 Page 25... -
Page 14: Setting Fail Safe/Secure Operation
In addition to the Lock Strike Relay and Lock Strike REX, the For Fail Secure Operation the first AC-S43 features an Auxiliary Output Relay and an Auxiliary digit should be "0" Input. The Auxiliary Mode defines the function of the Auxiliary For Fail Safe Operation the first Input and Output. -
Page 15: Auxiliary Mode Reference Guide
Secure mode after office hours. AUXILIARY MODE 3 In auxiliary mode 3 the auxiliary output is activated if the AC-S43 is tampered, i.e. the case tamper or back tamper is triggered. The auxiliary input can switch the mode of operation of the controller... - Page 16 AUXILIARY MODE 7 the auxiliary input you can for example automatically switch the AC- In auxiliary mode 7 the AC-S43 can trigger the auxiliary relay if it S43 from Normal Mode during office hours to secure mode after detects that the door has been ajar too long. In this mode the office hours.
-
Page 17: Enrolling Primary And Secondary Codes
Normal Mode. The Code Search method only works if a users Primary Code is already enrolled but the Secondary Code is not. (See Enrolling Users with the Code Search Method on Page 34) AC-S43 AC-S43 Page 32 07/04... -
Page 18: Deleting Primary And Secondary Codes
If the Primary Code entered is not valid, you will hear a long beep confirm the deletion. and the AC-S43 will continue to wait for a valid Primary Code. If the Programming Code is valid, you will hear three beeps 5) Enter the 4-digit PIN Code to be used as the Secondary Code. -
Page 19: Lock Strike Relay And Auxiliary Relay
If the Programming Code is valid, you will hear three beeps "1" assigns the Lock Strike Relay only and the AC-S43 will return to Normal Mode. "2" assigns the Auxiliary Strike Relay only "3" assigns the Lock Strike and Auxiliary Relay If the Programming Code is invalid, you will hear a long beep and the AC-S43 will return to Normal Mode. -
Page 20: Return To Factory Default Settings
If the assignment digit is valid, you will hear three beeps and then the controller will return to Normal Mode. If the assignment digit is invalid, you will hear a long beep and the controller will wait for another assignment digit to be entered. AC-S43 AC-S43 Page 38 07/04... -
Page 21: Glossary
Replacing a lost Programming Code Glossary valid users. In this mode the door Note: The AC-S43 must be in Normal Mode otherwise this will may be released by anyone pressing not work. Make sure that the Mode LED is green before Access Control: Primarily refers to the star button. - Page 22 Primary and Secondary Code which programming mode, deleting users, external input (such as a door are the same, and can gain access in and resetting the AC-S43 to its monitor) is connected to the Auxiliary any Mode of Operation. factory default settings.
-
Page 23: Warranty
LIMITED LIFETIME WARRANTY TERMS The terms of this warranty may not be varied by any person, whether or not purporting to represent or act on behalf of Rosslare. ROSSLARE ENTERPRISES LIMITED S (Rosslare) LIMITED This warranty represents the full extent of Rosslare's LIFETIME WARRANTY is applicable worldwide. -
Page 24: Technical Support
Technical Support International: Rosslare Enterprises Ltd. 905-912 Wing Fat Industrial Bldg., 12 Wang Tai Road, Kowloon Bay, Hong Kong. http://www.rosslaresecurity.com Tel: (852) 2795 5630 Fax: (852) 2795 1508 E-mail: info@rosslare.com.hk United States and Canada: Rosslare NAPDC Suite 238, 200 East Howard Street, Des Plaines, IL 60018 http://www.rosslaresecurity.com...
