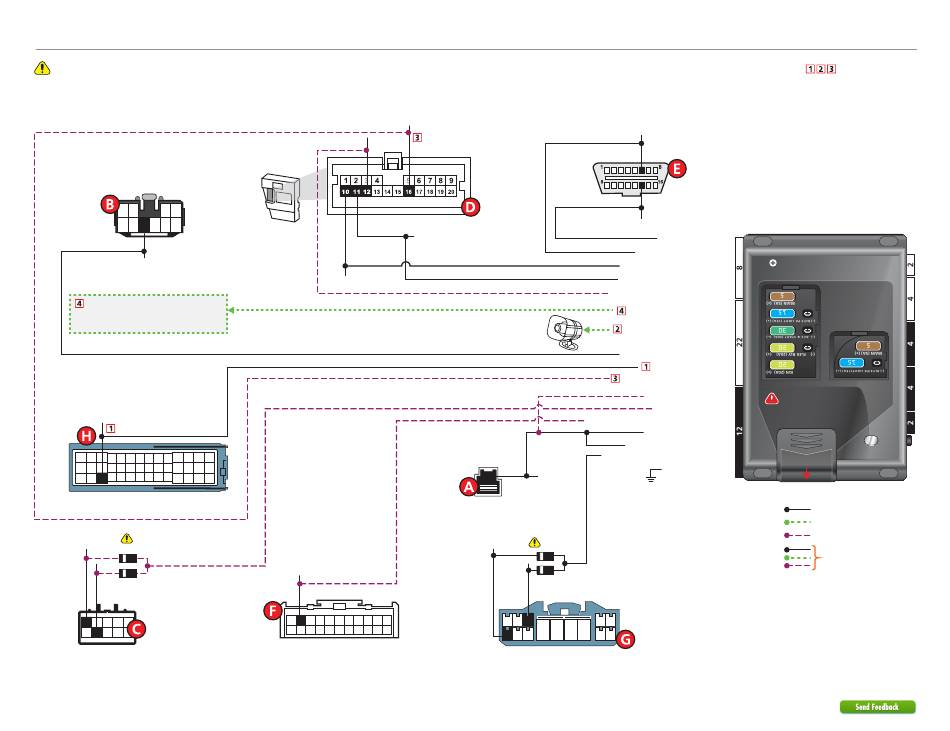

Wiring diagram - Automatic Transmission
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
PDM - Power Distribution Module
(black connector,
right of steering column)
1 2
3 4
5
6
7
8 9 10
(+) Ignition:
Blue/Orange, pin 7
Refer to the Optional starter
disable connection section for
relay and connector details.
Driver's Kick Panel
(blue connector)
(-) Hood: Yellow, pin 31
1 2
3
4
5
6
7
8
9
10
11 12 13
14
15 16
17
18
19
20
21
22
23
24
25 26 27
28
32
33
34
35
36
37
38
29 30
31
39 40 41
42
1 Amp Diodes
(+) PTS 1:
(+) PTS 2: Pink or
Blue, pin 1
Pink/Black, pin 7
1
2
3 4 5
6
7
8 9 10
Start/Stop Button Switch
(black connector)
6
933.HYUNDAI1 4.10.195.3 2010 Hyundai Genesis Coupe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
PDM - Power Distribution Module
(white connector right of steering column)
(AC) Tachometer:
(-) Keysense: Red, pin 12
White/Orange, pin 16
PDM:
B-CAN High:
Power
Distribution
Red, pin 11
Module
(right of
B-CAN Low:
steering column)
Blue, pin 10
(+) Brake: Red/Orange, pin 2
1
2
3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22
Junction connector
(white connector in driver's kick panel)
OBDII Diagnostic
(connector side view)
C-CAN High: Red, pin 6
C-CAN Low: Blue, pin 14
(-) Keysense Output: Yellow/Black: 8
Siren
(+) Brake Activation Output: White: 5 & 11
(+) 12V:
(+) Parking Lights Output: Lt. Green: 8
Red, pin 1
1
Dash Fuse Box
(brown, rear connector - K)
6 Amp
Diodes
(+) Parking Light (right):
Blue or Gray, pin 3
(+) Parking
1 2
3
4 5
Light (left):
Blue, pin 6
9 10 11 12 13 14
6
7 8
Dash Fuse Box
(blue, rear connector - G)
HS CAN 1 Low: Tan: 1
HS CAN 1 High: Tan/Black: 2
A
module can also be used for
HS CAN 2 Low: Orange/Brown: 3
this installation.
HS CAN 2 High: Orange/Green: 4
(-) GWA Output: Blue/White: 2
(+) Siren Output: Brown/Red: 11
(+) Ignition Sense Input: Pink: 12
(-) Hood Input: Gray: 21
(AC) Tach Input: Violet/White: 22
(+) 12V Input: Blue/Red: 2
IMPORTANT:
(+) PTS Output: Blue: 3
Position the
fuses correctly!
(+) 12V Input: Red: 6 & 12
(+) 12V Input: Lt. Green/Red: 7
Slide to open
(-) Ground: Black: 10
Legend:
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
