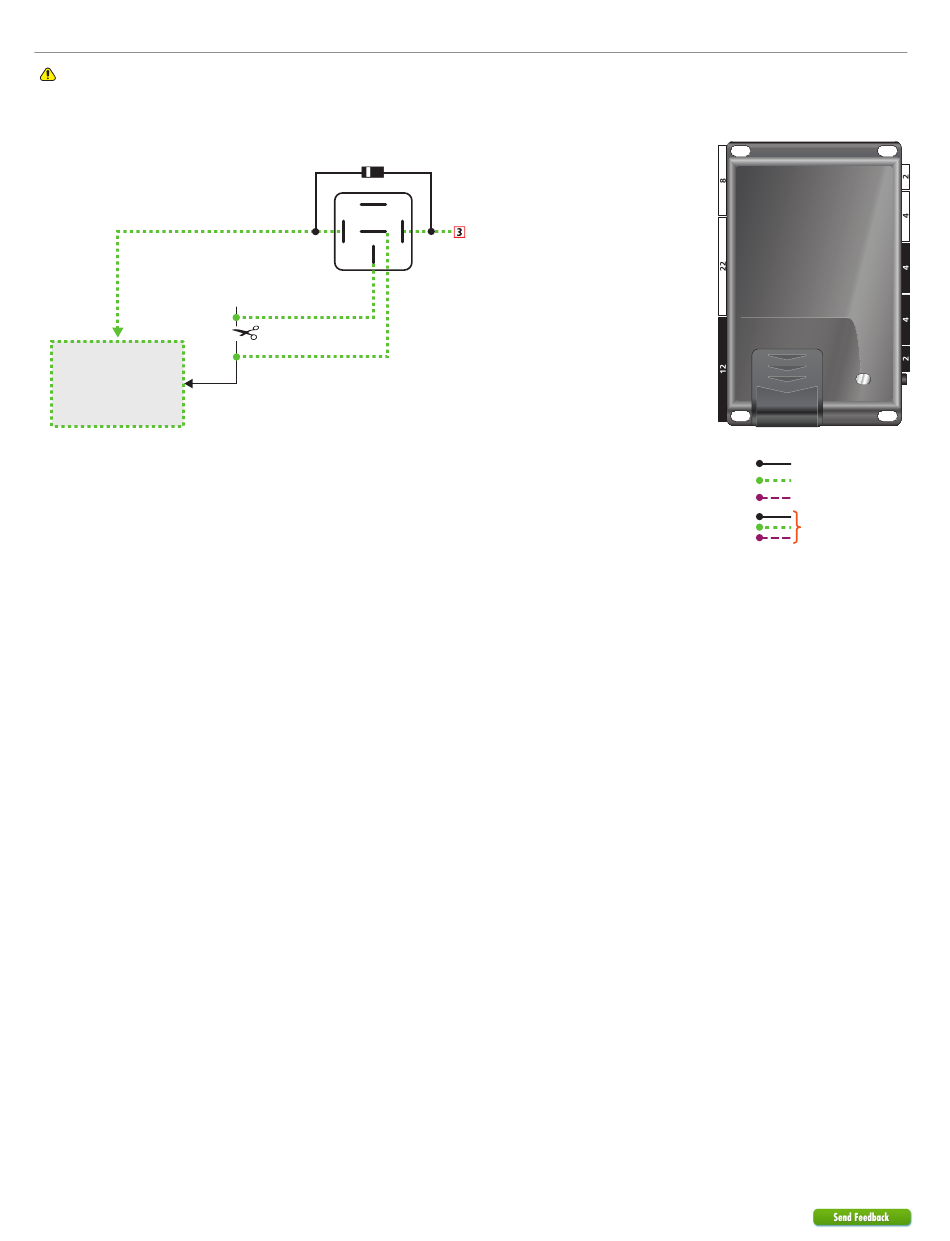

Optional starter disable connection

When using an external relay, use a 1N4002 diode or larger.
Refer to the
Vehicle connections
section for wire
and connector
details.
8
933.HYUNDAI1 4.10.195.3 2010 Hyundai Genesis Coupe (Smart Key)
©2021 VOXX•DEI LLC. All rights reserved.
1A Diode (1N4002+)
87
(+) Ignition
87a
86
30
Starter (vehicle side)
Cut
Starter (connector side)
(-) Ground When Armed (GWA) Output: Blue/White: 2
85
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
