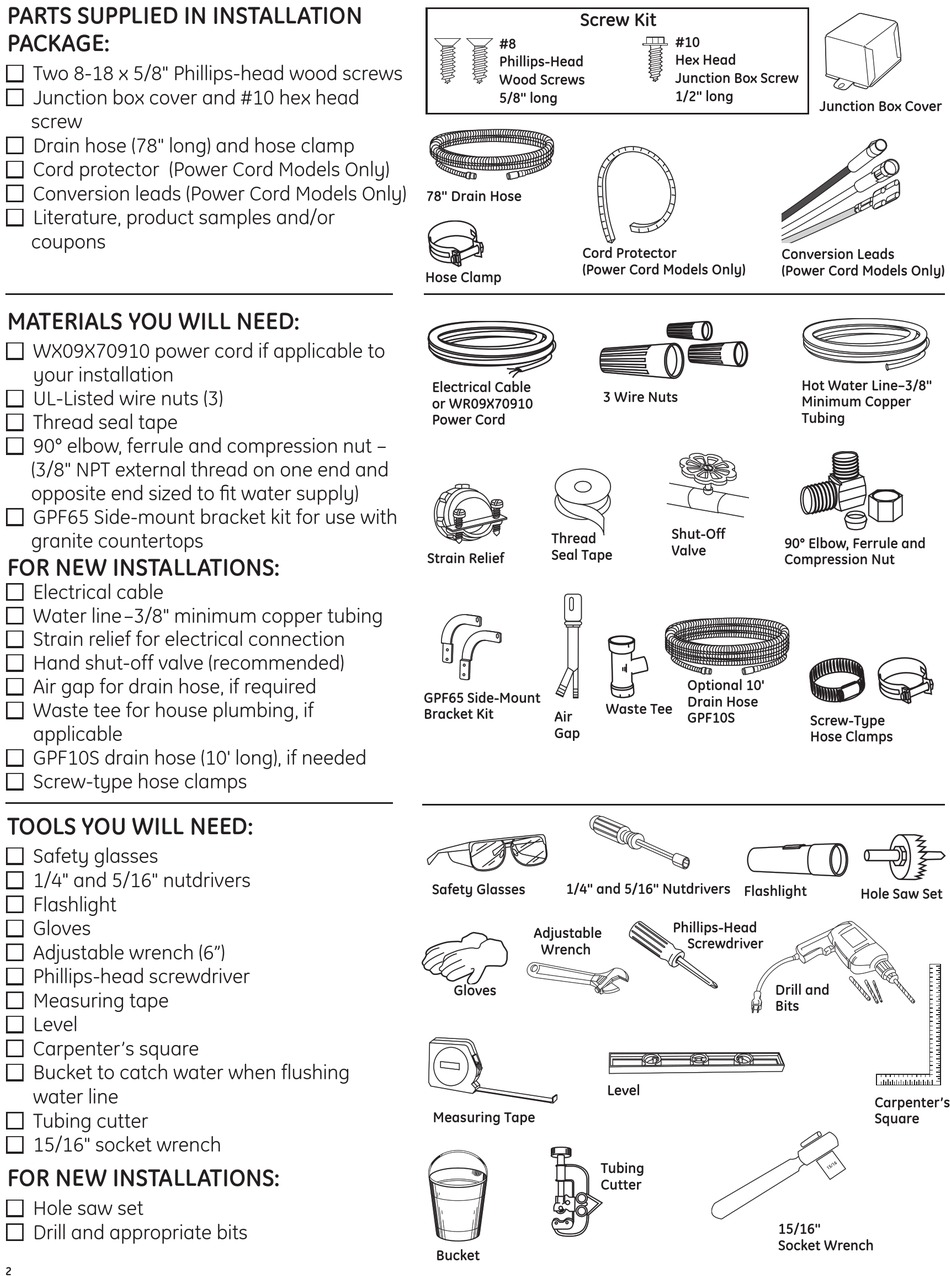

PARTS SUPPLIED IN INSTALLATION
PACKAGE:
Two 8-18 x 5/8" Phillips-head wood screws
Junction box cover and #10 hex head
screw
Drain hose (78" long) and hose clamp
Cord protector (Power Cord Models Only)
Conversion leads (Power Cord Models Only)
Literature, product samples and/or
coupons
MATERIALS YOU WILL NEED:
WX09X70910 power cord if applicable to
your installation
UL-Listed wire nuts (3)
Thread seal tape
90° elbow, ferrule and compression nut –
(3/8" NPT external thread on one end and
opposite end sized to fit water supply)
GPF65 Side-mount bracket kit for use with
granite countertops
FOR NEW INSTALLATIONS:
Electrical cable
Water line–3/8" minimum copper tubing
Strain relief for electrical connection
Hand shut-off valve (recommended)
Air gap for drain hose, if required
Waste tee for house plumbing, if
applicable
GPF10S drain hose (10' long), if needed
Screw-type hose clamps
TOOLS YOU WILL NEED:
Safety glasses
1/4" and 5/16" nutdrivers
Flashlight
Gloves
Adjustable wrench (6")
Phillips-head screwdriver
Measuring tape
Level
Carpenter's square
Bucket to catch water when flushing
water line
Tubing cutter
15/16" socket wrench
FOR NEW INSTALLATIONS:
Hole saw set
Drill and appropriate bits
2
#8
Phillips-Head
Wood Screws
5/8" long
78" Drain Hose
Hose Clamp
Hose Clamps
Electrical Cable
or WR09X70910
Power Cord
Strain Relief
Electrical Cable
GPF65 Side-Mount
Bracket Kit
Safety Glasses
Safety Glasses
Gloves
Measuring Tape
Measuring Tape
Bucket
Bucket
Tubing Cutter
Screw Kit
#10
Hex Head
Junction Box Screw
1/2" long
Cord Protector
(Power Cord Models Only)
3 Wire Nuts
Wire Nuts
Cord Protector
Shut-Off
Thread
Valve
Seal Tape
307Dia11
Tape
Optional 10'
Drain Hose
Waste Tee
Air
GPF10S
Gap
Air Gap
1/4" and 5/16" Nutdrivers
Phillips-Head
Adjustable
Nutdriver
Screwdriver
Wrench
Screw Driver II
Level
Level 2
Tubing
Cutter
Junction Box Cover
Conversion Leads
(Power Cord Models Only)
Conversion Leads
Hot Water Line–3/8"
Minimum Copper
Tubing
Hot Water Line
90° Elbow, Ferrule and
Compression Nut
90 ϒ Elbow
Screw-Type
Hose Clamps
Hose Clamps
Flashlight
Hole Saw Set
Hole Saw Bit
Flashlight
Drill and
Bits
Drill & Bits
Carpenter's
Square
Carpenters Square
15/16"
Socket Wrench
