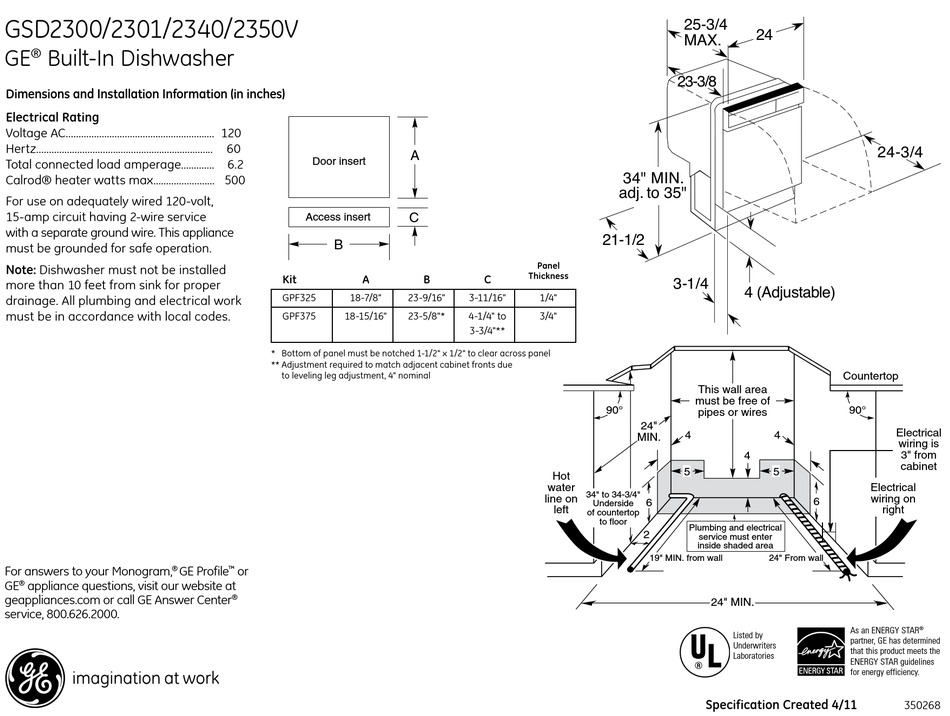

GSD2300/2301/2340/2350V
GE
Built-In Dishwasher
®
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 6.2
Calrod® heater watts max........................ 500
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: Dishwasher must not be installed
more than 10 feet from sink for proper
drainage. All plumbing and electrical work
must be in accordance with local codes.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
60
Door insert
Access insert
B
Kit
A
Models/Kits
A
B
C
Thickness
GE Models
GPF325 Kit
18-7/8"
23-9/16"
3-11/16"
1/4"
GPF325
18-7/8"
4-1/4" to
GPF375 Kit
18-15/16"
23-5/8"*
3-3/4"**
3/4"
GPF375
18-15/16"
*Bottom of panel must be notched 1-1/2"x1/2" to clear
across panel
**Adjustment required to match adjcent cabinets fronts due to
leveling leg adjustment, 4" nominal.
* Bottom of panel must be notched 1-1/2" x 1/2" to clear across panel
** Adjustment required to match adjacent cabinet fronts due
to leveling leg adjustment, 4" nominal
or
®
A
C
Panel
Thickness
B
C
23-9/16"
3-11/16"
1/4"
23-5/8"*
4-1/4" to
3/4"
3-3/4"**
Hot
water
34" to 34-3/4"
line on
left
of countertop
25-3/4
24
MAX.
23-3/8
34" MIN.
adj. to 35"
21-1/2
3-1/4
4 (Adjustable)
This wall area
must be free of
90°
pipes or wires
24"
4
MIN.
4
5
6
Underside
to floor
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall
24" From wall
24" MIN.
Listed by
Underwriters
Laboratories
Specification Created 4/11
24-3/4
Countertop
90°
Electrical
4
wiring is
3" from
cabinet
5
Electrical
wiring on
6
right
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
350268
