GE GSD2100V Dimensions And Installation Information

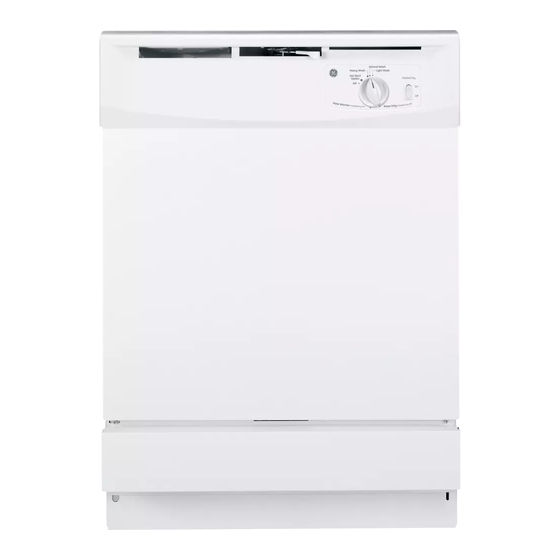

Built-in dishwasher
Hide thumbs

Advertisement

GSD2100/2101V
GE
Built-In Dishwasher
®

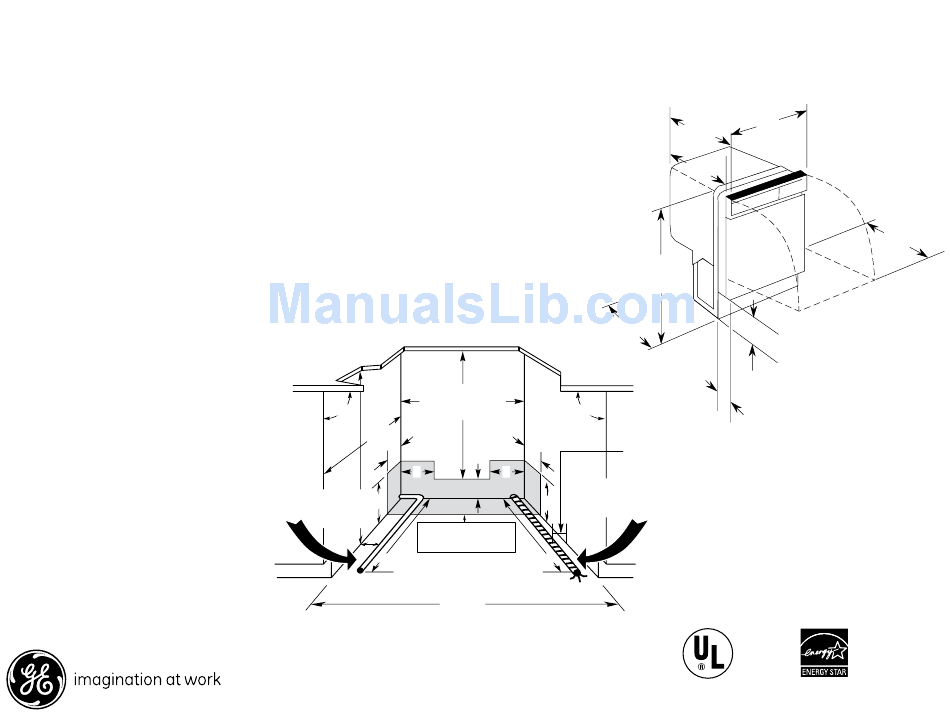

Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 6.2
Calrod® heater watts max........................ 500
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: Dishwasher must not be installed
more than 10 feet from sink for proper
drainage. All plumbing and electrical work
must be in accordance with local codes.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
service, 800.626.2000.
60
90°
24"
MIN.
Hot
water
34" to 34-3/4"
line on
6
Underside
left
of countertop
to floor
2
19" MIN. from wall
or
®
Countertop
This wall area
must be free of
90°
pipes or wires
4
4
4
5
5
6
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
25-3/4
24
MAX.
23-3/8
34" MIN.
adj. to 35"
21-1/2
3-1/4
4 (Adjustable)
Electrical
wiring is
3" from
cabinet
Electrical
wiring on
right
Listed by
Underwriters
Laboratories
Specification Revised 11/11
24-3/4
As an EnErgy StAr
®
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
