9.3

LED Functions

Light Description
SPL LED will be on when a configured node in the QuickServer is detected as being offline. See Node
SPL overview screen of the FS-GUI for further details.
For LonWorks units, LED will light until the unit is commissioned on the LonWorks network.
RUN LED will flash 20 seconds after power up, signifying normal operation. The QuickServer will be
RUN able to access FS-GUI (refer to Section
the first 20 seconds, the LED should be off.
The ERR LED will go on solid 15 seconds after power up. It will turn off after 5 seconds. A steady red
light will indicate there is a system error on the FieldServer. If this occurs, immediately report the
ERR
related "system error" shown in the error screen of the FS-GUI interface to the FieldServer for
evaluation.
On normal operation of FS-QS-1XXX, the RX LED will flash when a message is received on the field
RX
port of the QuickServer.
On normal operation of FS-QS-1XXX, the TX LED will flash when a message is sent on the field port
TX
of the QuickServer.
PWR This is the power light. It should always show a steady green light when powered.

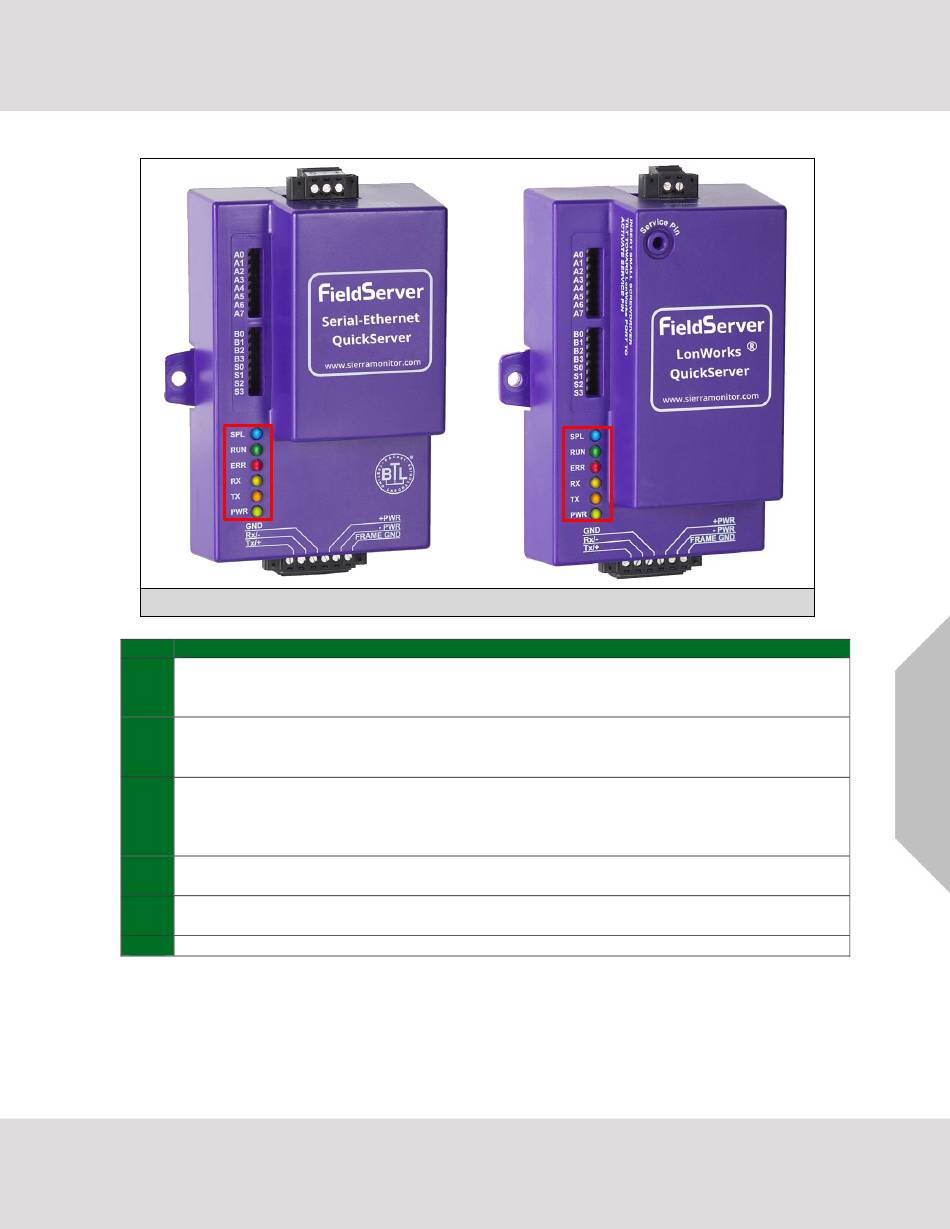

Figure 48: FS-QS-1XXX LEDs

4.3 for more information) once this LED starts flashing. During
