4.3
Connecting to the QuickServer
4.3.1

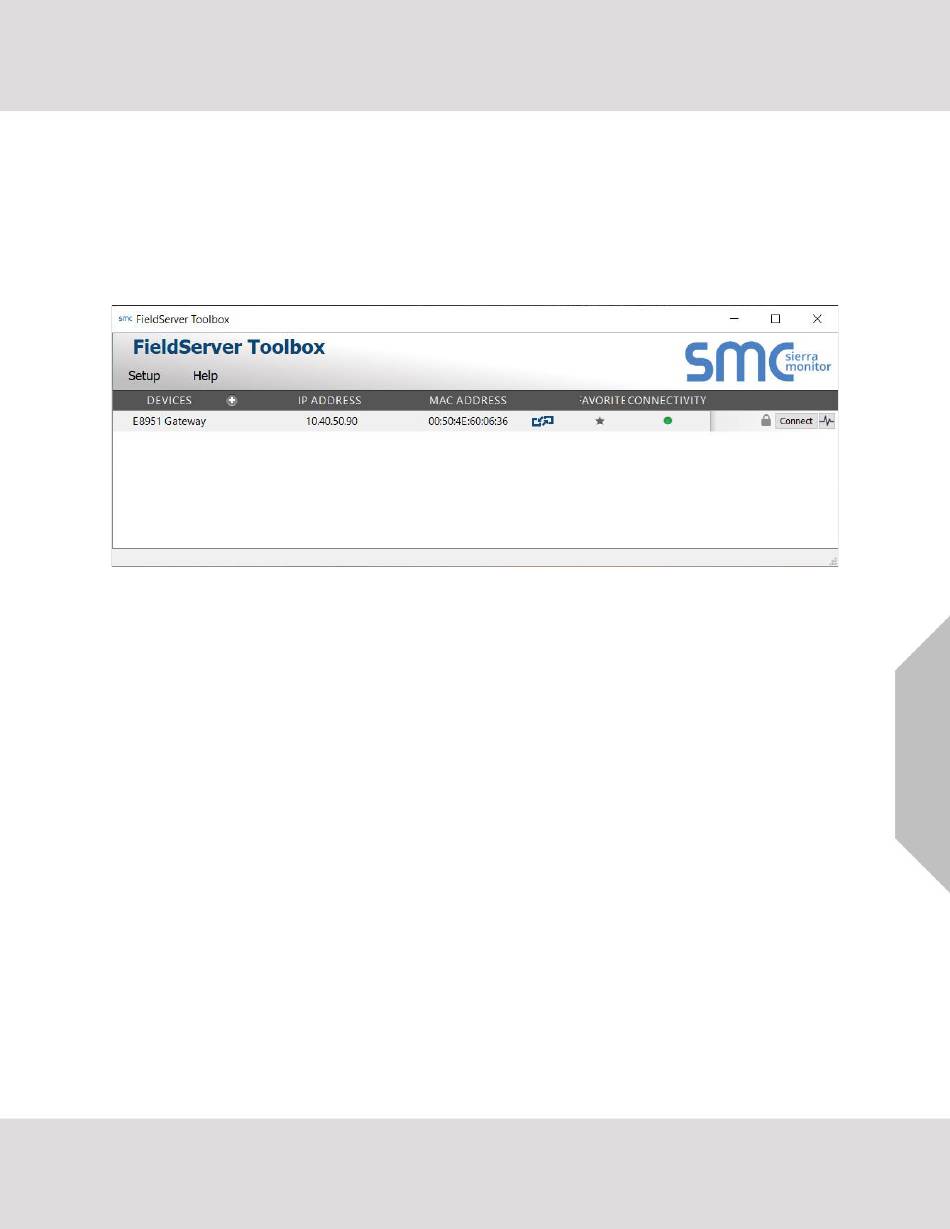

Using the FieldServer Toolbox to Discover and Connect to the QuickServer
•
Install the Toolbox application from the USB drive or download it from the MSA Safety website.
•
Use the FS Toolbox application to find the QuickServer and launch the FS-GUI.
NOTE: If the connect button is greyed out, the QuickServer's IP Address must be set to be on the
same network as the PC. (Section 4.3.2)
4.3.2
Using a Web Browser to Connect to the QuickServer
•
Open a web browser and connect to the QuickServer's default IP Address. The default IP Address
of the FieldServer is 192.168.2.101, Subnet Mask is 255.255.255.0.
•
If the PC and the QuickServer are on different IP networks, assign a static IP Address to the PC
on the 192.168.2.X network.
QuickServer Start-up Guide
Operation
22
